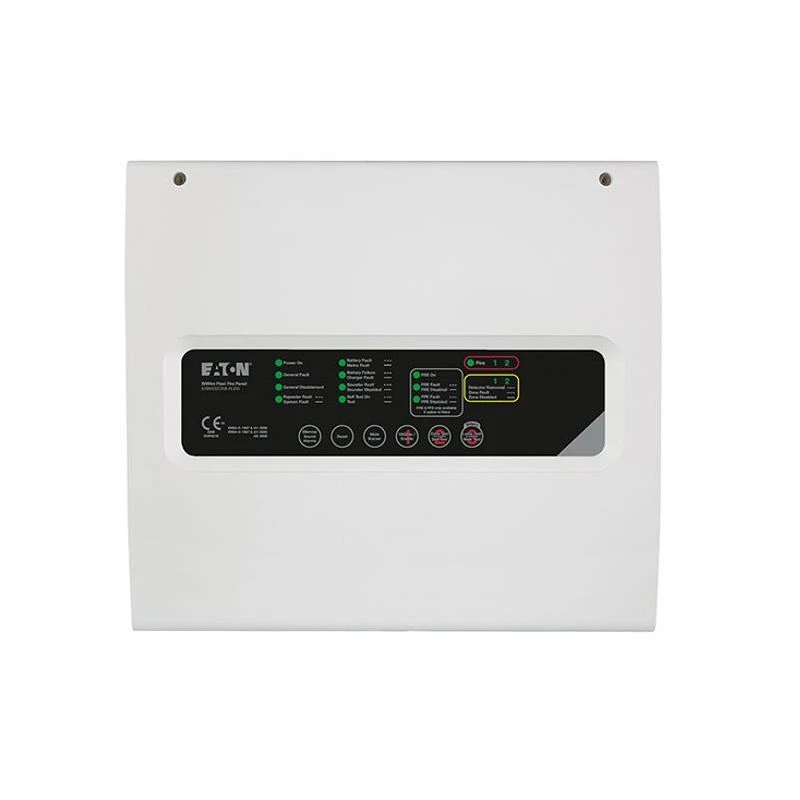

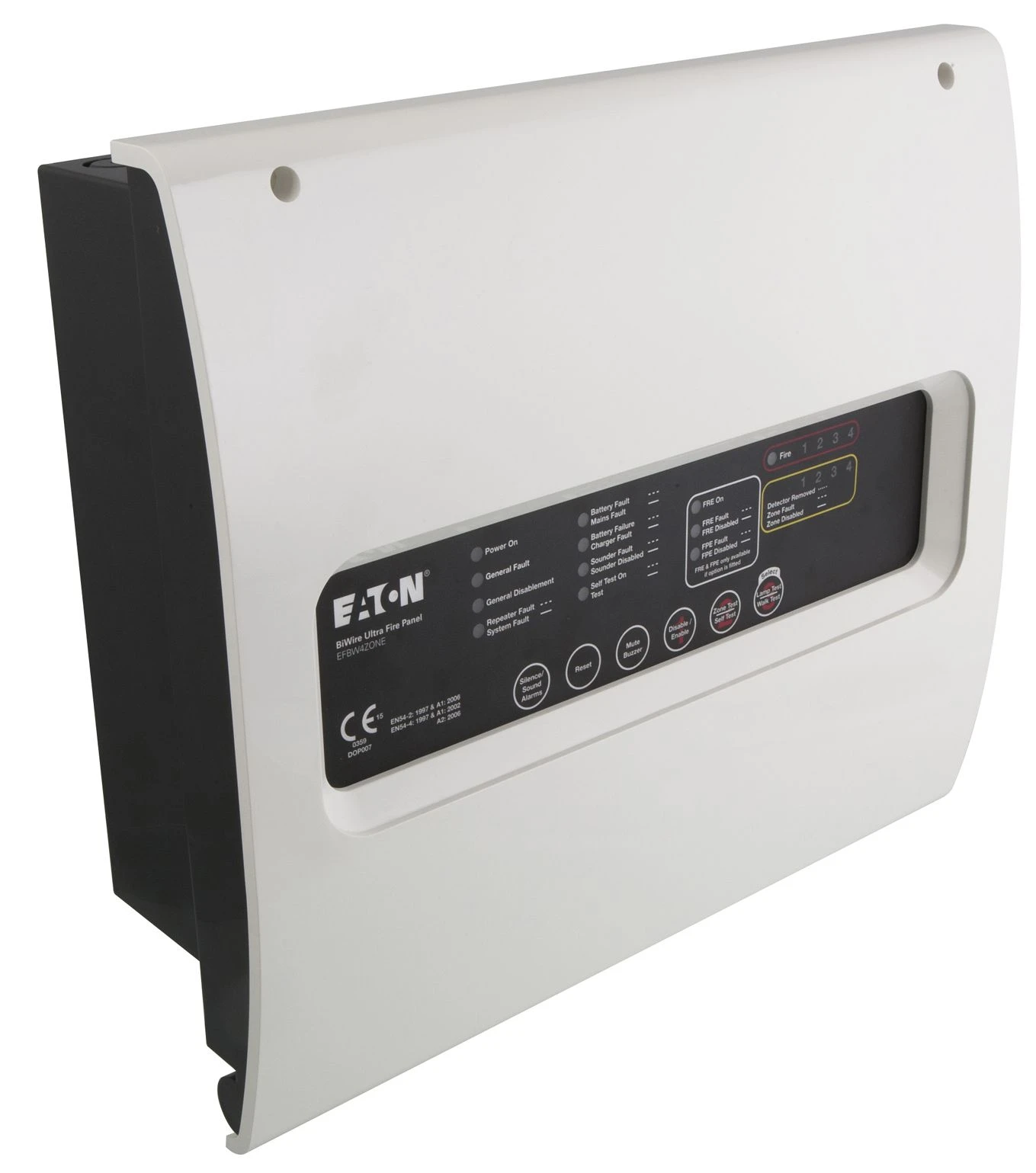

Eaton Fire Alarm Panel Biwire Flexible 4 Zone 336 x 375 x 134mm White
BiWire and Conventional 4 Zone Control Panel · · · Configure zone wiring to work as either a conventional or two-wire system · · Allows the connection of an existing conventional system to a BiWire system · · Compatible with two-wire and conventional EN 54-23 certified visual alarm devices · · Reduces stock-holding and enables the fire system · · Simple to sell and specify, Flexi can be used in a wide variety of applications · · Save time, money and effort when undertaking system extensions and upgrades
Description
Technical Specifications Technical Specifications Central fire alarm panel Mounting method Surface mounting Height 336 mm Width 375 mm Depth 134 mm Electricity consumption – mA Power reserve – h Operating voltage 30.7 V Number of detector addresses 32 Number of zones 4 Number of outputs for acoustic signal generators 2 Number of outputs for optical signal generators 2 With power adaptor Yes Addressable No Suitable for bus connection No Interface external Yes Radio connection No Emergency power supply integrated No Integrated dial device No · Technical Data Sheet – Click to Download
