Eaton EMCH116R30C Memshield 3 1P+N 16A RCBO Type C 10kA 30MA (17.7x120x76mm)
Eaton EMCH116R30C Memshield 3 1P+N 16A RCBO Type C 10kA 30MA (17.7x120x76mm)

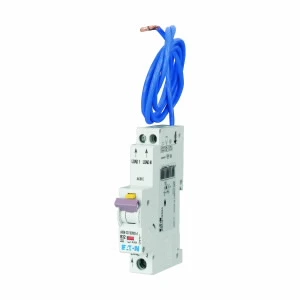

Eaton EMCH116R30C Memshield 3 1P+N 16A RCBO Type C 10kA 30MA (17.7x120x76mm) - Image 2

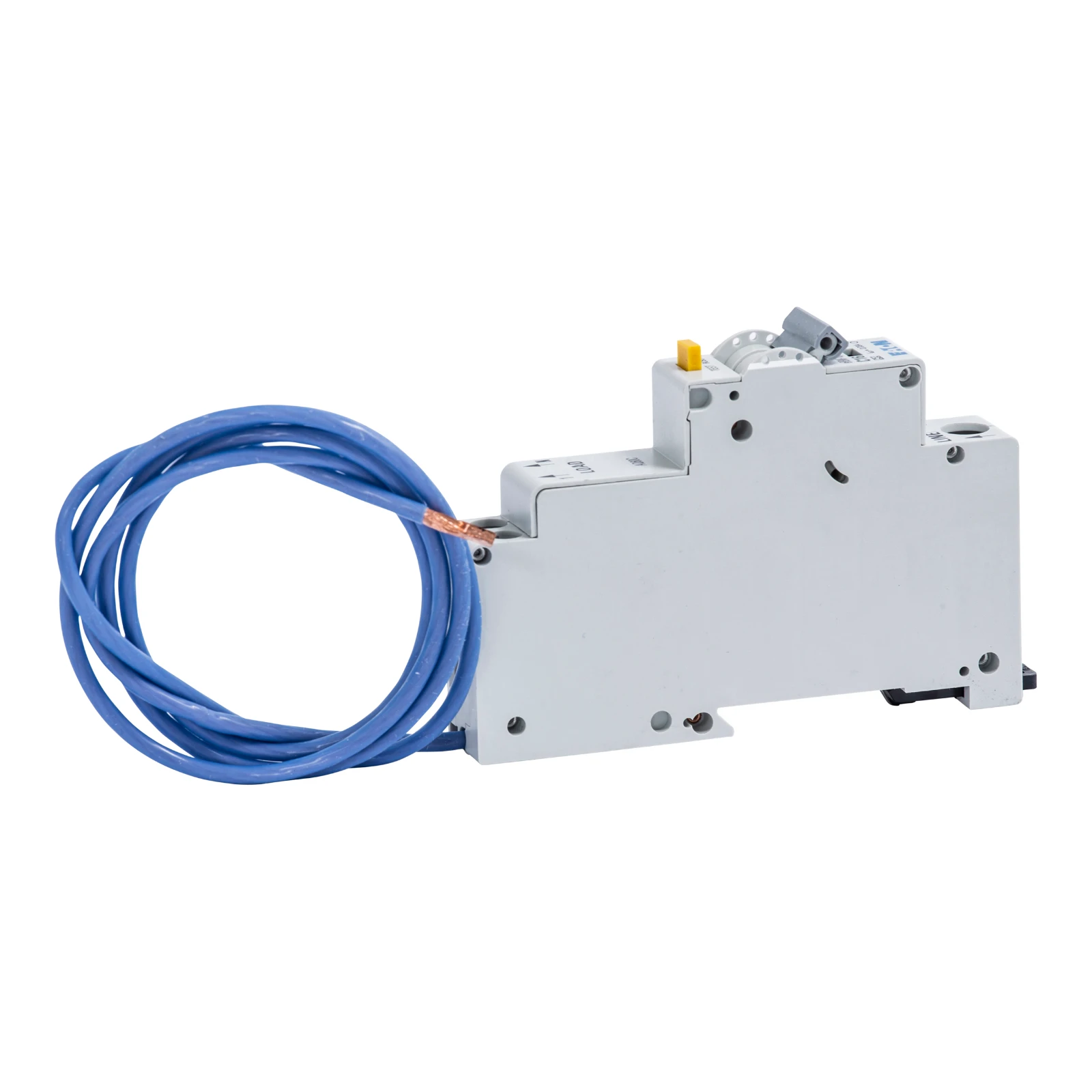

Eaton EMCH116R30C Memshield 3 1P+N 16A RCBO Type C 10kA 30MA (17.7x120x76mm) - Image 3
Eaton EMCH116R30C Memshield 3 1P+N 16A RCBO Type C 10kA 30MA (17.7x120x76mm) - Image 4

Eaton EMCH116R30C Memshield 3 1P+N 16A RCBO Type C 10kA 30MA (17.7x120x76mm)

£55.19 Incl. VAT

Eaton Memshield-3 EMCH116R30C is manufactured to IEC/EN 61009 and meets the latest European and International standards. The DIN rail is mountable in a single module width. These RCBOs provide a comprehensive protection solution to a wide range of application. The Eaton RCBOs suite with the complete range of modular devices and are for use within Eaton’s MEM Memera consumer units and other applications. These devices will accommodate cables up to 16mm². It provides a high degree of protection against electric shock due to direct and indirect contact. A 30mA RCD will trip within 40ms when a fault current of 150mA is detected. This type of RCD is required to satisfy the requirements for “additional protection” in accordance with BS7671. · · · C release characteristic · · Din rail mounted · · CE Certified

199 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EMCH116R30C Categories: , , Brand: Part Number: 2500504364

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Disconnection characteristic Undelayed Degree of protection (IP rating) IP20 Tripping characteristic (type/curve) C Leakage current type A Frequency 50/60 Hz Voltage type AC Rated current 16 A Recess depth 69.5 mm Number of poles (total) 1 Rated fault current 0.03 A Surge current capacity 0.25 kA Current limiting class 3 Number of protected poles 1 Rated short-circuit breaking capacity IEC 60947-2 0 kA Rated voltage 240 V Rated insulation voltage Ui 500 V Power loss 4.3 W Width in number of modular spacings 1 Over voltage category 3 Pollution degree 2 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Rated short-circuit breaking capacity according to EN 61009 10 kA Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No With interlocking device No Anti-nuisance tripping version No
