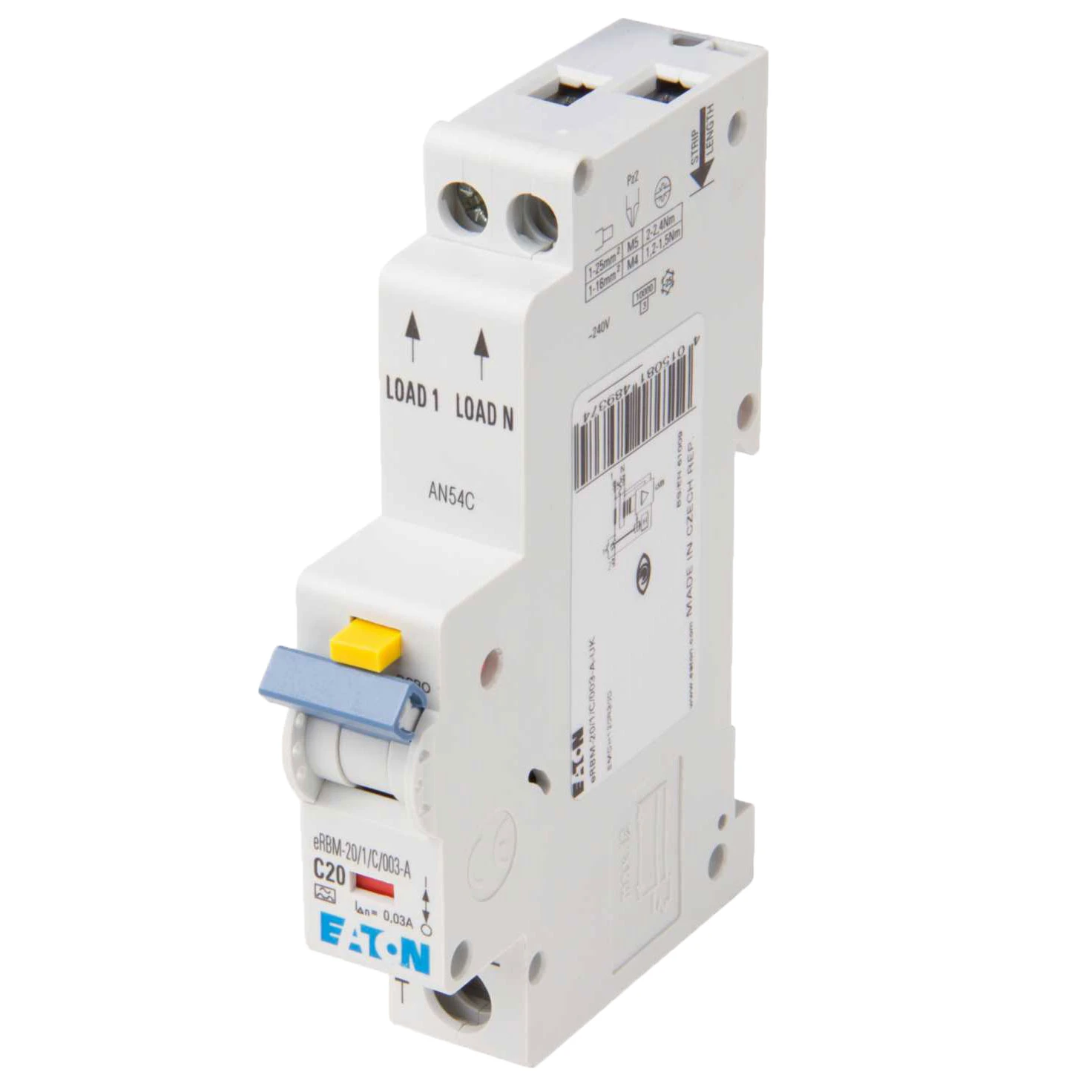

Eaton RCBO Single Pole&Neutral Type C 20A 30mA 10kA

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Disconnection characteristic Undelayed Tripping characteristic (type/curve) C Degree of protection (IP rating) IP20 Frequency 50/60 Hz Voltage type AC Recess depth 69.5 mm Leakage current type A Rated voltage 240 V Rated current 20 A Width in number of modular spacings 1 Rated insulation voltage Ui 500 V Pollution degree 2 Rated impulse-withstand voltage (Uimp) 4 kV Over voltage category 3 Number of poles (total) 1 Rated short-circuit breaking capacity IEC 60947-2 0 kA Current limiting class 3 Number of protected poles 1 Rated fault current 0.03 A Surge current capacity 0.25 kA Power loss 6.3 W Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Rated short-circuit breaking capacity according to EN 61009 10 kA Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 40 °C Anti-nuisance tripping version No Concurrently switching N-neutral No With interlocking device No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
