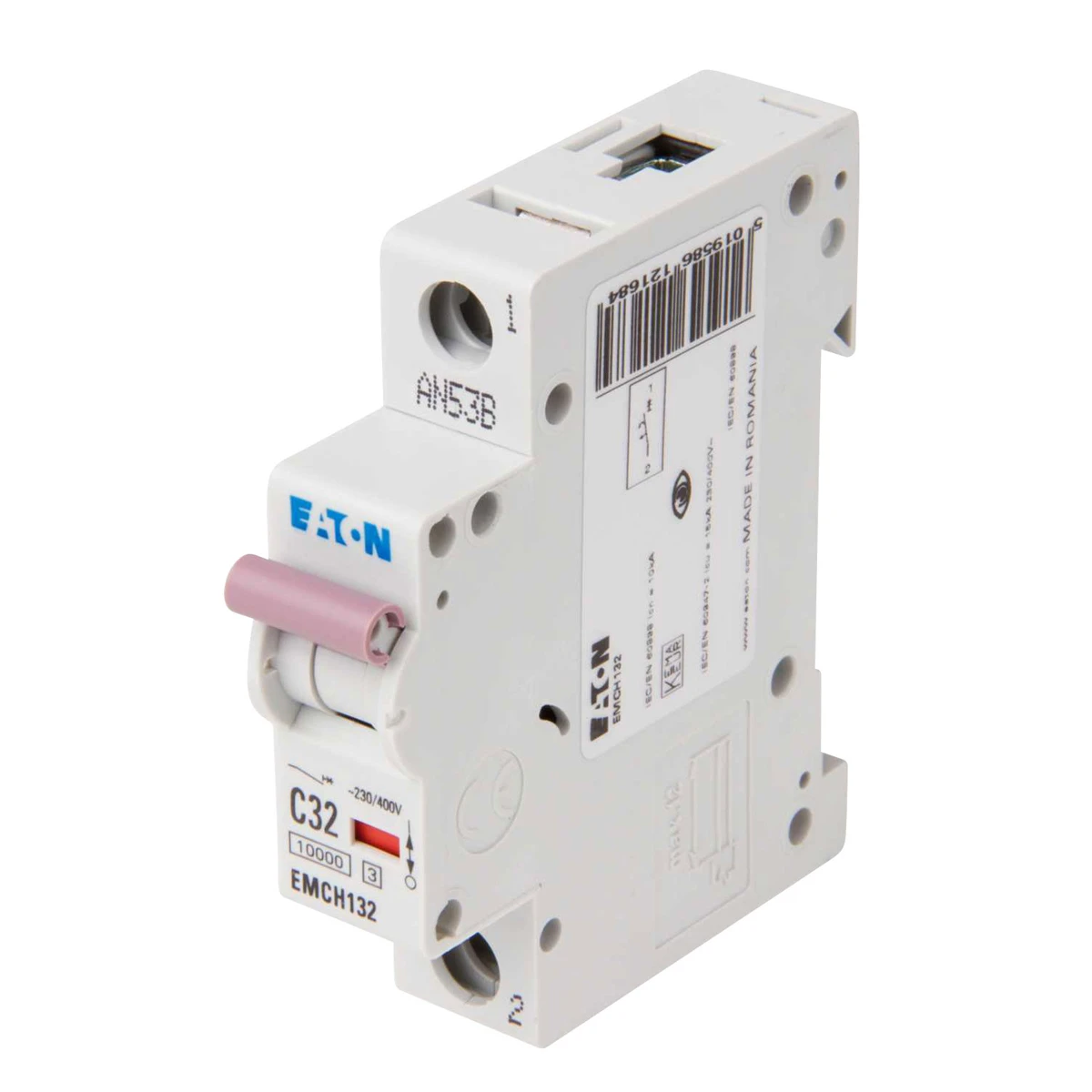

Eaton EMCH132 Memshield 3 MCB 1 Pole 32A Type C 110/15kA 18 x 80 x 75mm

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Degree of protection (IP rating) IP20 Tripping characteristic (type/curve) C Voltage type AC Recess depth 70.5 mm Rated insulation voltage Ui 440 V Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of poles (total) 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated current 32 A Number of protected poles 1 Rated voltage 240 V Pollution degree 2 Over voltage category 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 0 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 0 kA Width in number of modular spacings 1 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 55 °C Explosion-proof No Concurrently switching N-neutral No Additional equipment possible Yes Flush-mounted installation Yes
