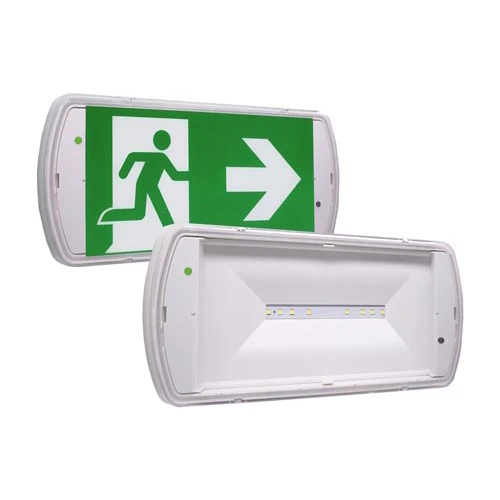

Eaton Exit Sign LED Emergency Maintained/Nm Nickel Cadmium Large IP42 12 x 0.6W White Polycarbonate

Description

Technical Specifications  Technical Specifications Emergency luminaire Lamp cap/base None Light diffuser type Reflector Housing material Plastic Protection class according to IEC 61140 II Connection type Plug-in connection Battery chemistry NiCd Control gear Electronic transformer Cover material Plastic transparent Housing colour White Degree of protection (IP rating) IP42 Labelling type Insert sheet/plate Impact resistance (IK rating) IK04 Mounting method Surface mounting/recessed mounting Width 170 mm Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Max. number of luminaires per miniature circuit breaker C16 – Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) – % Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Luminous flux in standby mode 100 lm RAL-number housing – Light source type LED non-replaceable Voltage type AC Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) – % Stroboscope effect value SVM – Flickering value Pst LM – Number of poles 2 Number of lighting heads 12 Rated life time L70/B50 at 25 °C – h Max. number of luminaires per miniature circuit breaker B16 – Number of lamps 1 Viewing distance 30 m Power factor 0.84 Recess diameter – mm Maximum system power 3.2 W Recess width 170 mm Outer diameter – mm Conductor cross section 2.5 mm² Nominal voltage 230 – 230 V Nominal current – mA Colour temperature 5053 – 5053 K Rated ambient temperature acc. IEC62722-2-1 5 – 40 °C Nominal operation time 3 – 3 h Light source included Yes Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Pictogram included No Suitable for standby switching No Suitable for continuous circuit No Replaceable control gear No With remote control No Constant luminous flux control No With remote switch connection No
