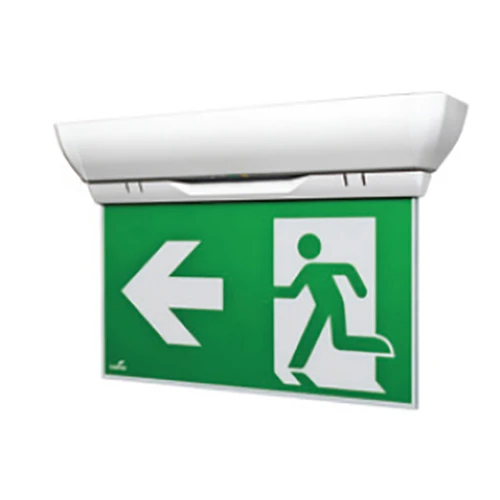

Eaton Exit Sign LED Emergency Nickel Cadmium Power Supply Unit IP20
Eaton Exit Sign LED Emergency Nickel Cadmium Power Supply Unit IP20
Eaton Exit Sign LED Emergency Nickel Cadmium Power Supply Unit IP20 - Image 2

Eaton Exit Sign LED Emergency Nickel Cadmium Power Supply Unit IP20

£28.00 Incl. VAT

Eaton Velos Emergency Exit Sign with its class leading performance and attractive modern styling utilises cutting edge materials and LED light source for a functional yet stylish appearance in a variety of indoor applications. It uses the latest innovations in plastic material to provide a superior luminance across the face of the legend to meet EN1838 and improved visibility in low level light situations. And also utilises a low power LED light source with 60000 hours for prolonged lifetime and minimal power consumption with the advantage of minimal cost of ownership and through-life cost. It s incorporates an intelligent technology that monitors the LEDs light source, upon failure of an LED the remaining LED light output is increased to maintain luminance on the legend. It is made of polycarbonate RAL9016 body/PSU and bezel with polycarbonate legend. · · · Low power consumption reducing cost of ownership · · Ease of installation with minimal tools required for reduced install time and cost · · 60,000 hour lifetime LED light source for reduced maintenance cost · · Adjustable brightness function to 50% in maintained operation · · Ideal for cinemas and theatres

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ESC-3H Categories: , , Brand: Product Code: 2501094453

Description

Technical Specifications  Technical Specifications Emergency luminaire Light diffuser type None Lamp cap/base None Housing material Plastic Impact resistance (IK rating) IK03 Protection class according to IEC 61140 II Battery chemistry NiCd Labelling type Acrylic plate Connection type Plug-in connection Housing colour White Control gear LED driver constant current Cover material Without cover Mounting method Surface mounting/recessed mounting Degree of protection (IP rating) IP20 Type of indicator Single/double-sided Voltage type AC Light source type LED non-replaceable Conductor cross section 2.5 mm² Width 346 mm Outer diameter – mm Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Viewing distance 30 m Flickering value Pst LM – Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) – % Stroboscope effect value SVM – Luminous flux in standby mode – lm Recess width – mm Recess diameter – mm Number of poles 3 Number of lighting heads 1 Rated life time L70/B50 at 25 °C – h Max. number of luminaires per miniature circuit breaker B16 – RAL-number housing – Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Max. number of luminaires per miniature circuit breaker C16 – Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) – % Power factor 0.5 Maximum system power 4.4 W Number of lamps 1 Nominal voltage 220 – 240 V Nominal current – mA Colour temperature 5700 – 5700 K Rated ambient temperature acc. IEC62722-2-1 5 – 40 °C Nominal operation time 3 – 3 h Replaceable control gear No Constant luminous flux control No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 Yes Pictogram included No Suitable for standby switching No Suitable for continuous circuit No With remote switch connection Yes With remote control No Light source included Yes
