Eaton Fuse-link LV 6 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS
Eaton Fuse-link LV 6 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS

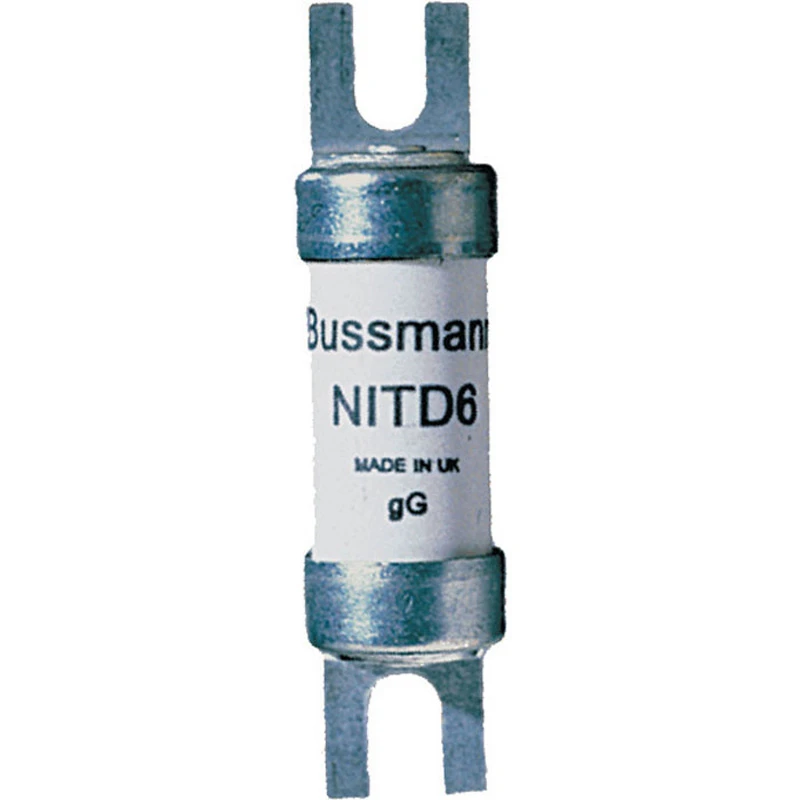

Eaton Fuse-link LV 6 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS - Image 2

Eaton Fuse-link LV 6 A AC 550 V BS88/A1 14 x 55 mm gL/gG BS

£2.60 Incl. VAT

NITD6 is a Low Voltage Fuse Link, with offset bolted tags. This fuse is Q1 fusing factor for general purpose. The range of British standard Low Voltage Fuse Link size is A1, for protection of general industrial applications. · · · Breaking Capacity: 80kA 550V AC · · Current Rating: 6A · · Length: 55.2mm · · Mounting Type: Bolt-in · · Voltage Rating: 550V AC · · Fixing Centre: 44mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NITD6 Categories: , Brand: Product Code: 2500013942

Description

Technical Specifications  Technical Specifications HRC fuse Fuse construction type according to IEC 60269 A1 Type of fuse status indicator None Fuse system according to IEC 60269 Fuse system E Utilization category gG (cable protection/equipment protection) Colour code None Current type AC Mounting holes M4 Centre-to-centre distance of connections 42.5 mm Power loss at rated current 1.8 W Breaking capacity 80 kA Rated voltage AC 550 V Rated current 6 A
