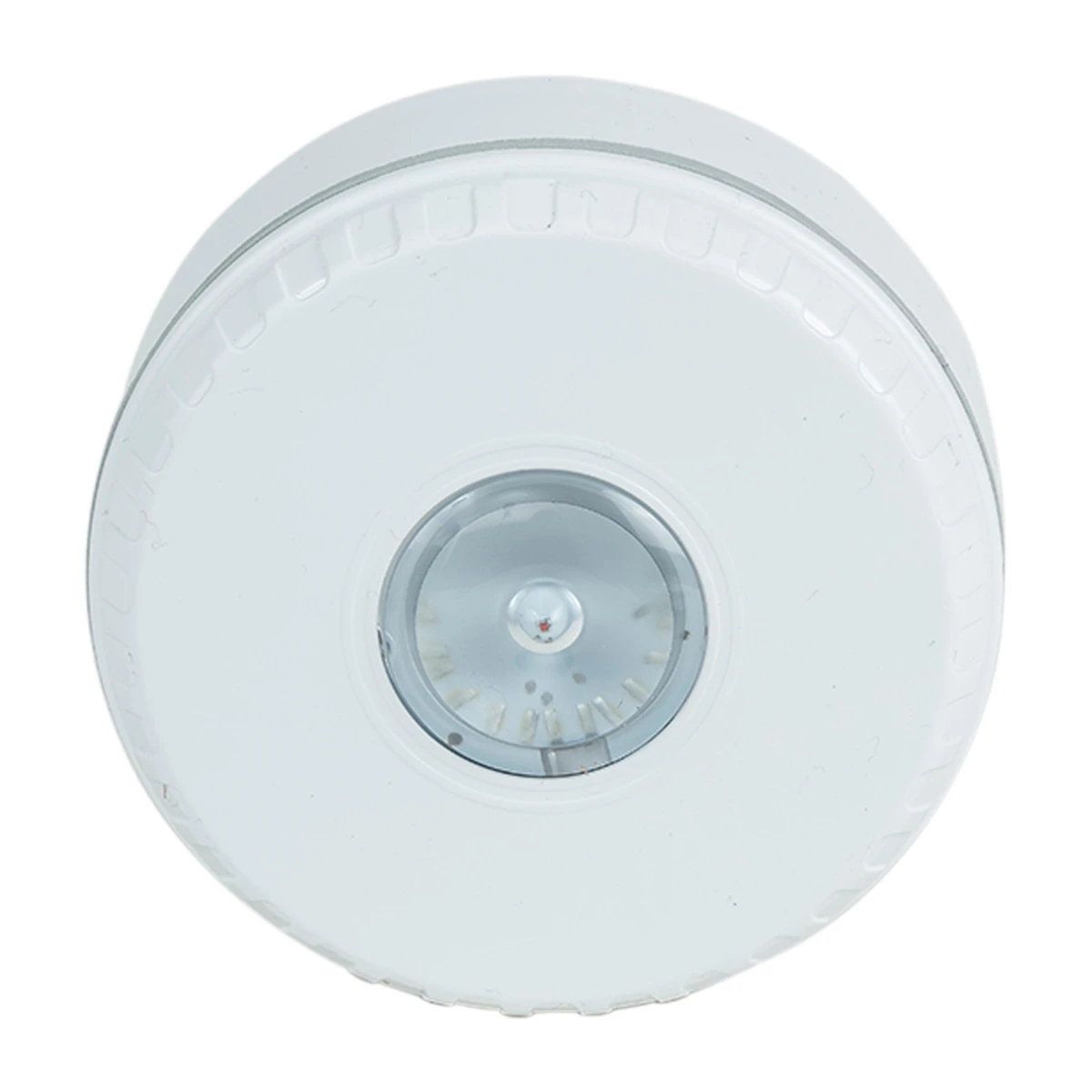

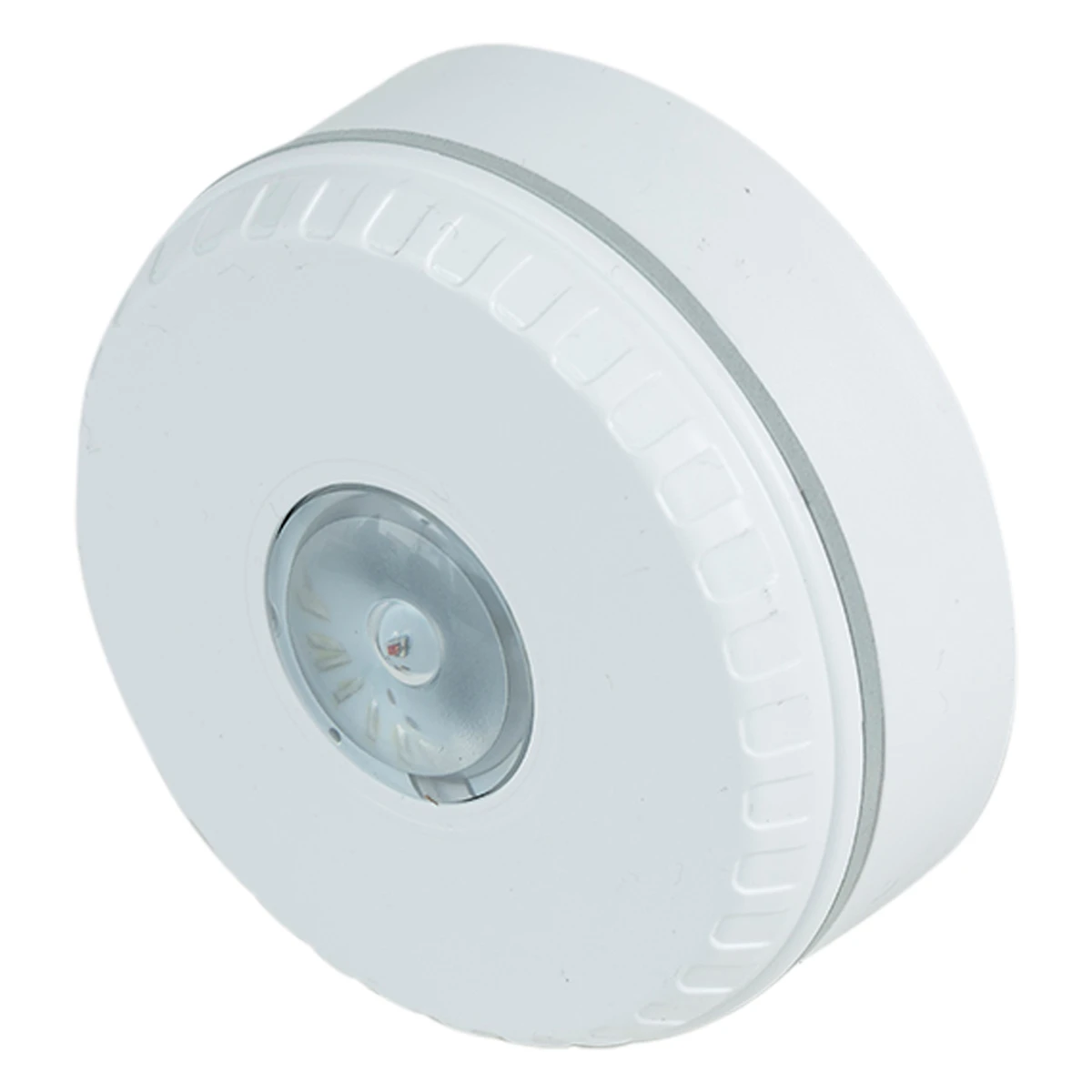

Eaton FXSOLCWS Solista LX Ceiling Shallow Base White
A patented lens design that distributes light to achieve the required illumination specified by EN54-23, while using the minimum current consumption. Designed for installation at a height of up to 3m and with a discrete, compact appearance, the device is ideal for a variety of applications including bedrooms, bathrooms and toilets. · · · Ultra low current consumption of 10mA · · Up to 7.5m coverage volume · · 0.5Hz or 1Hz flash rate · · Coverage switch to 2.5m on the wall variant · · Use where current consumption is a key consideration · · Reduces power consumption by up to 50% · · Switch flash rate to 0.5Hz
Description
Technical Specifications Technical Specifications Signalling light Voltage type DC Housing material Plastic Degree of protection (IP rating) IP33 Housing colour White Mounting method Surface mounting Light source type LED non-replaceable Height – mm Nominal voltage – V Ambient temperature – °C Blinking frequency – 1/min Electricity consumption 0.025 A Power 0.6 W Standby-time up to 0 h Number of modes 4 Width – mm Luminous intensity – cd Beam angle horizontal – ° Beam angle vertical – ° Dimmable No Flashlight function Yes Continuous light function No Solar operation No Rotating light function No Pulsating light function No Blinking light function No With infrared No Approved according to ICAO No · Technical Data Sheet – Click to Download
