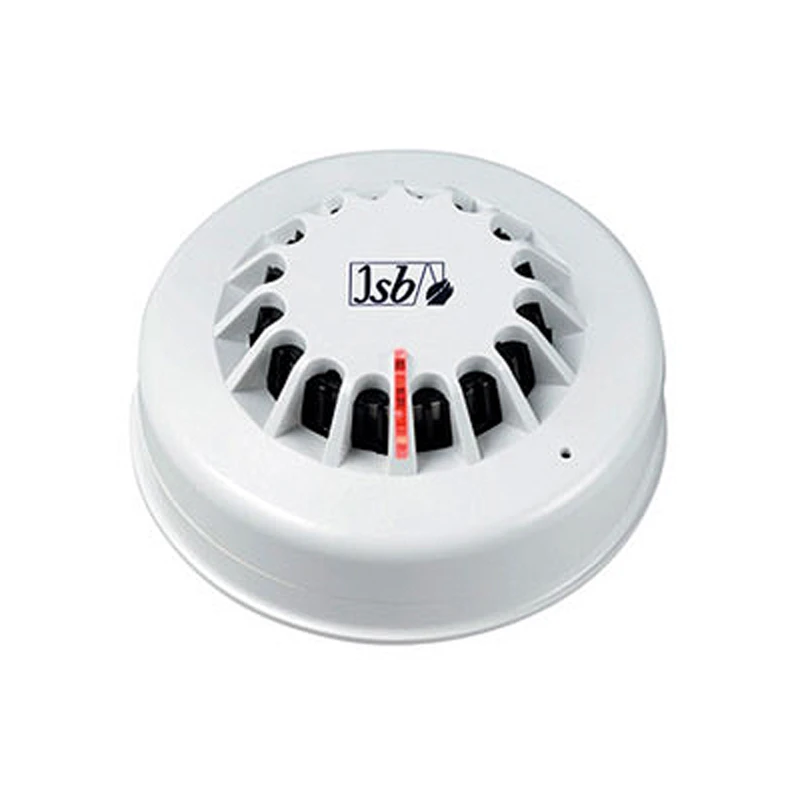

Eaton Heat Detector To Suit JSB Systems Fixed 77°C
Awaiting product image

Eaton Heat Detector To Suit JSB Systems Fixed 77°C

£23.16 Incl. VAT

Cooper Lighting & Safety FXN524 fast heat sensor of conventional detectors have been specifically designed to operate with JSB control panels. The JSB fixed heat detectors will detect temperatures above 77°C and 92°C. These detectors are designed to be used in environments where the ambient conditions might cause false alarms if smoke detection were to be used, for example where there is a high level of dust, fumes, steam or smoke under normal conditions. · · · Colour: White · · Height: 55mm · · Material: Polycarbonate/ABS Plastic · · Size: 55 x 101 (Dia) mm · · Weight: 100g · · Depth: 41mm · · Diameter: 101mm · · IP Rating: IP20

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EFXN524 Categories: , , , , , Brand: Product Code: 2500134100

Description

Technical Specifications  Technical Specifications Smoke/heat detector/alarm Backup battery None Voltage type of supply voltage DC Degree of protection (IP rating) IP40 Operating technology Thermo maximal Colour White Mounting method Surface mounting Diameter – mm Width 100 mm Primary current supply Battery/accumulator RAL-number (similar) 9003 Length 100 mm Height/depth – mm Response temperature 77 °C Max. number networkable – Number of contacts as normally closed contact – Number of contacts as normally open contact – Number of contacts as change-over contact – Supply voltage AC 50 Hz – V Rated switch current – A Supply voltage AC 60 Hz – V Supply voltage DC – V Operating voltage at AC 50 Hz – V Operating voltage at AC 60 Hz – V Operating voltage at DC – V Compatible with Apple HomeKit No Self-adhesive No Standard networkable via radio No Standalone No Networkable via cable Yes Acoustic signal No Smoke switcher No Networkable via radio optional No IFTTT support available No Explosion-tested version No With orientation lighting No Optical signal No With voltage indication No Separate socket needed No Suitable for duct mounting No With backup battery No With Q-label No VdS accepted No Compatible with Google Assistant No Compatible with Amazon Alexa No
