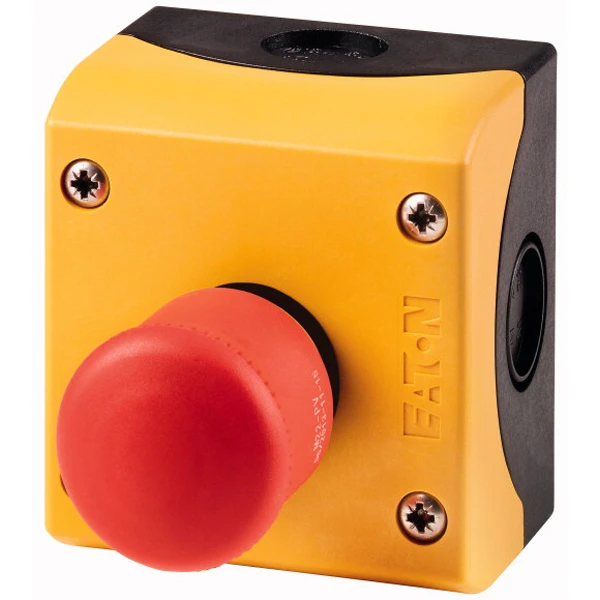

Eaton Housing, Controlled stop pushbuttons/emergency-stop buttons, Mushroom-shaped, 38 mm, Non-illuminated, Pull-to-release function, 1 NC, 1 N/O, Screw con
Eaton Housing, Controlled stop pushbuttons/emergency-stop buttons, Mushroom-shaped, 38 mm, Non-illuminated, Pull-to-release function, 1 NC, 1 N/O, Screw con
Eaton Housing, Controlled stop pushbuttons/emergency-stop buttons, Mushroom-shaped, 38 mm, Non-illuminated, Pull-to-release function, 1 NC, 1 N/O, Screw con - Image 2

Eaton Housing, Controlled stop pushbuttons/emergency-stop buttons, Mushroom-shaped, 38 mm, Non-illuminated, Pull-to-release function, 1 NC, 1 N/O, Screw con

£80.10 Incl. VAT

Housing, Product range: RMQ-Titan, Complete unit, Design: Mushroom-shaped, Diameter: 38 mm, Non-illuminated, Pull-to-release function, Connection type: Screw connection, Description: Tamper-proof according to ISO 13850/EN 418, Colour Mushroom head: Red, Colour Enclosure covers: Yellow, Degree of Protection: IP66, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts N/O = Normally open: 1 N/O, Contacts Notes = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Front dimensions: 35, Standards: IEC/EN 60947, VDE 0660, Mounting position: As required · · · Colour: Red · · Contact Configuration: 1NO/1NC · · Length: 75.1mm · · Material: Plastic · · Actuator Type: Pull-to-release · · Button Colour: Red · · Diameter: 38mm · · IP Rating: IP67 · · Normal State Configuration: 1NO + 1NC

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: M22-PV/KC11/IY Categories: , , , , , Brand: Product Code: 2500088518

Description

Technical Specifications  Technical Specifications Control circuit devices combination in enclosure Housing material Plastic Degree of protection (NEMA) 4X, 13 Number of command positions 1 Colour housing cover Yellow Number of contacts as normally open contact 1 Number of contacts as normally closed contact 1 Number of key switches 0 Number of selector switches 0 Number of contacts as change-over contact 0 Number of mushroom-shaped push-buttons 1 Number of indicator lights 0 Number of push buttons 0 Rated control supply voltage at AC 60 Hz 115 – 500 V Rated control supply voltage at AC 50 Hz 115 – 500 V Rated control supply voltage at DC 24 – 220 V Suitable for emergency stop Yes
