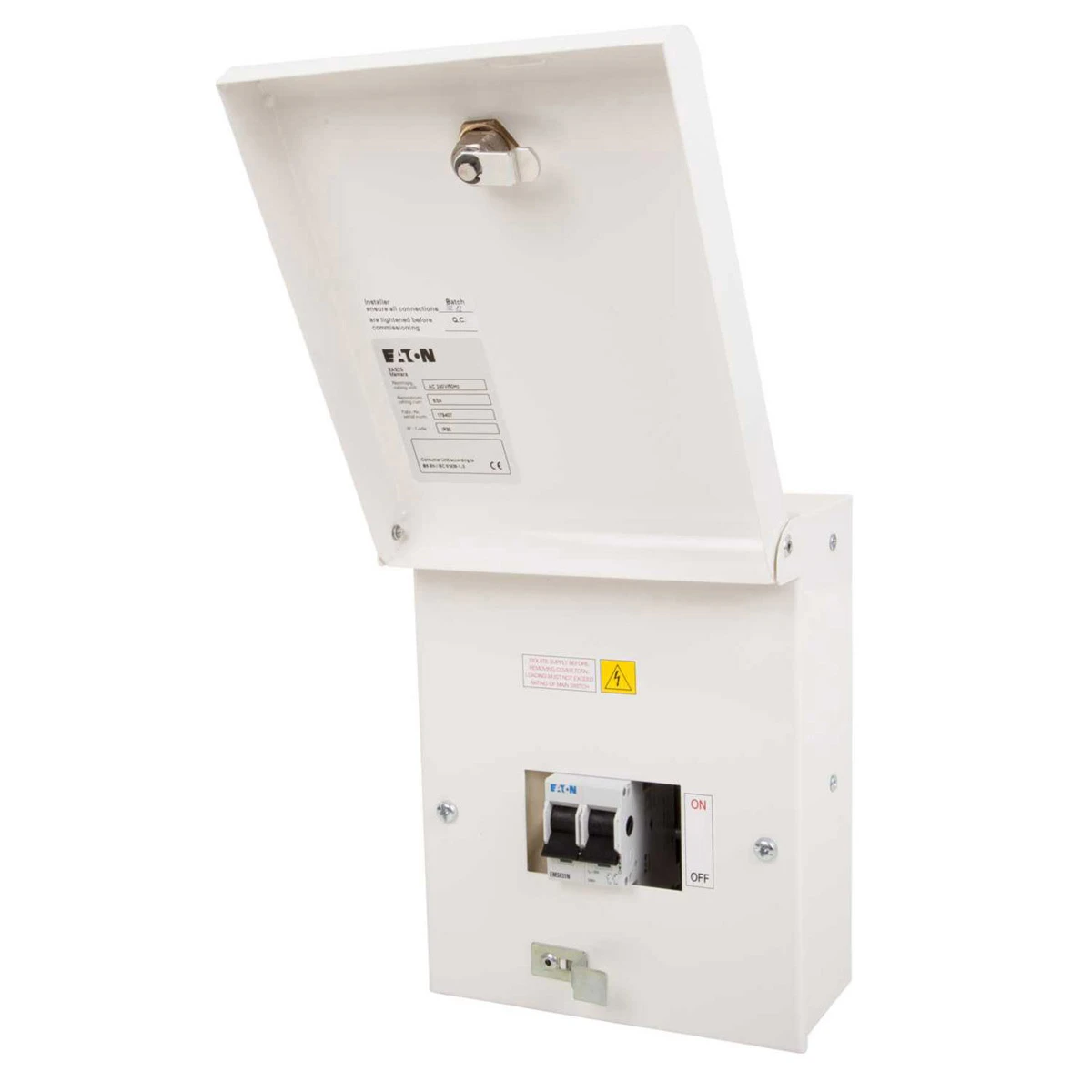

Eaton Isolator controlled surface mounted consumer unit incl. 2-pole 63A isolator
Eaton Isolator controlled surface mounted consumer unit incl. 2-pole 63A isolator
Eaton Isolator controlled surface mounted consumer unit incl. 2-pole 63A isolator - Image 2

Eaton Isolator controlled surface mounted consumer unit incl. 2-pole 63A isolator

£82.73 Incl. VAT

EAS2S · · · Easy removal of knockouts from inside of unit · · Ample wiring space across the full length of the busbar · · Freely configurable RCD ways on split load / dual RCD boards · · Clip-on bus bar shield providing complete shrouding of live busbars · · Busbars supplied lose for onsite final configuration · · RAL 9010 (Pure white) · · With multiple large apertures in rear face of enclosure to allow flexible cable entry

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EAS2S EATON DUPE Categories: , , Brand: Product Code: 2500706735

Description

Technical Specifications  Technical Specifications Small distribution board Type of door Single Housing material Steel Type of covering Door Cover model Closed Mounting method Surface mounted Degree of protection (IP rating) IP30 Height 224 mm Width 175 mm RAL number 9016 Depth 140 mm Internal depth 80 mm Recess depth 113 mm Recess height 224 mm Recess width 175 mm Number of rows 1 Width in number of modular spacings 4 Earthing terminal block Yes Neutral terminal block Yes Signal passing door No With lock No Transparent cover/door No Extension possible Yes With DIN-rail Yes With mounting plate No EMC-version Yes · Technical Data Sheet – Click to Download
