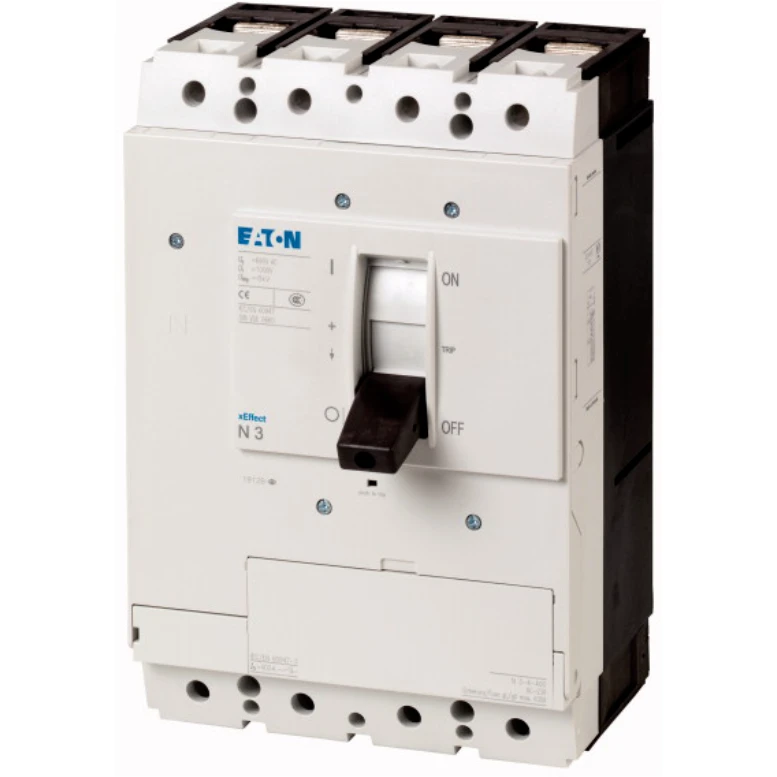

Eaton Isolator Four Pole Incoming N3 400A
Eaton Isolator Four Pole Incoming N3 400A
Eaton Isolator Four Pole Incoming N3 400A - Image 2

Eaton Isolator Four Pole Incoming N3 400A

£1,596.26 Incl. VAT

Switch-disconnectors N. – Comply with the isolation properties even for earthed IT networks. Accessories, such as bridge kits, connection terminals and door coupling rotary handles enable individual installation in the most varied of distribution systems. Auxiliary switches, voltage releases and remote operators facilitate signaling and automation. Notes: main switch characteristics including positive drive according to IEC/EN 60204 und VDE 0113. Isolating characteristics according to IEC/EN 60947-3 and VDE 0660. busbar tag shroud according to VDE 0160 Part 100. · · · Eaton molded case circuit breakers cover the widest range of applications in the industry: Electrica · · Frame size Frame J-K · · Mounting Method: Fix · · Rated control supply voltage: 690V · · Connection: Screw · · Number of poles : Four-pole · · Product Weight: 13.759 lb

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: N3-4-400 Categories: , Brand: Product Code: 2500461562

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Type of control element Rocker lever Colour control element Black Degree of protection (IP), front side IP20 Type of electrical connection of main circuit Screw connection Width 185 mm Device construction Suitable for fixed installation Height 275 mm Depth 159 mm Number of poles 4 Number of auxiliary contacts as normally open contact 0 Conditioned rated short-circuit current Iq 0 kA Rated operation power at AC-3, 400 V 0 kW Rated permanent current Iu 400 A Number of auxiliary contacts as change-over contact 0 Number of auxiliary contacts as normally closed contact 0 Number of switches 1 Rated short-time withstand current lcw 12 kA Rated operation power at AC-23, 400 V 200 kW Switching power at 400 V 0 kW Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-23, 400 V 0 A Rated operating voltage 690 – 690 V Rated permanent current at AC-21, 400 V 0 A Version as emergency stop installation Yes Version as main switch Yes Version as safety switch No Interlockable Yes Motor drive integrated No Version as maintenance-/service switch Yes Suitable for front mounting 4-hole No Suitable for distribution board installation Yes Suitable for intermediate mounting Yes Suitable for front mounting centre No Version as reversing switch No Voltage release optional Yes Motor drive optional Yes With pre-assembled cabling No · Technical Data Sheet – Click to Download
