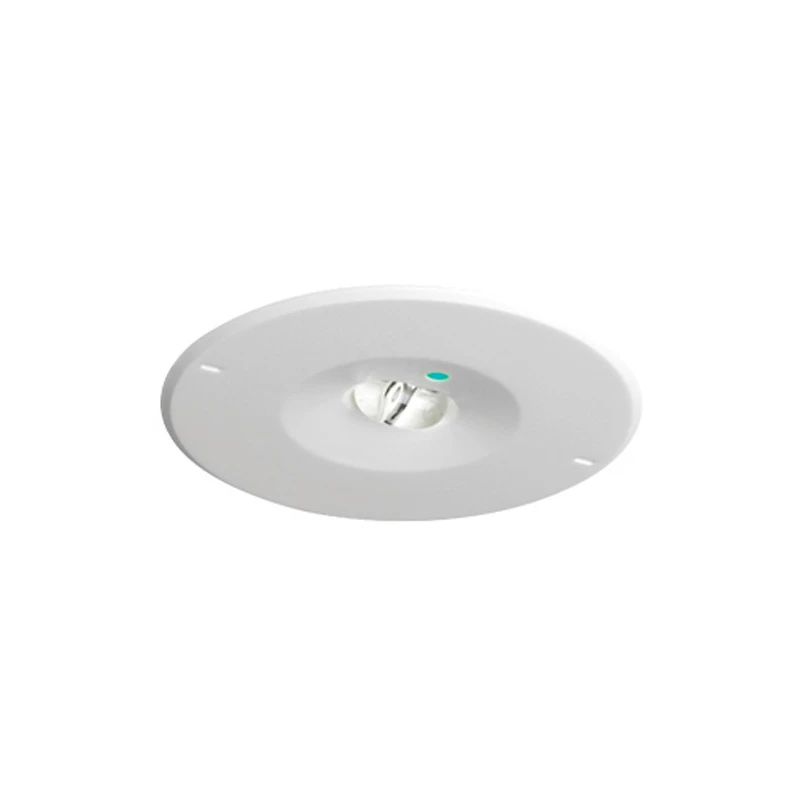

Eaton Luminaire LED Emergency Escape Route 1W White IP44
Eaton Luminaire LED Emergency Escape Route 1W White IP44
Eaton Luminaire LED Emergency Escape Route 1W White IP44 - Image 2

Eaton Luminaire LED Emergency Escape Route 1W White IP44

£197.44 Incl. VAT

A Micro point 2 Surface Emergency LED Luminaire, can be used for escape route emergency lighting. This luminaires feature versatile multi-functional use, low power consumption and first fix base for ease of installation. It has self-contained, slave, self-test and addressable testing options. The latest LED and optic technology are combined to provide high performance emergency lighting in commercial buildings where aesthetics are of prime importance, such as offices, retail or hospitality and leisure facilities. In addition ease of installation, reduced energy consumption and minimal maintenance reduce the total cost of ownership without compromising on performance. The innovative optic design has been developed and produced by Eaton to use light from the LED source as ef?ciently as possible to provide a virtually razor-straight rectangle or square of light that can be perfectly aligned for uniform distribution, providing unrivalled spacing performance. · · · Versatile multi-functional use (escape and open area anti-panic) · · IP44 ingress protection (from below ceiling) ideal for bathrooms · · Plug and socket supply for ease of installation and maintenance · · 60,000 hour life LED for reduced maintenance · · Flush mount · · Cut-out diameter 64mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: MP2E3H Categories: , Brand: Product Code: 2500529421

Description

Technical Specifications  Technical Specifications Emergency luminaire Protection class according to IEC 61140 II Lamp cap/base None Housing material Plastic Light diffuser type Focal lens Degree of protection (IP rating) IP44 Battery chemistry NiCd Impact resistance (IK rating) IK04 Housing colour White Control gear LED driver constant current Type of cabling Suitable for through wiring Mounting method Built-in Voltage type AC Light source type LED non-replaceable Connection type Screw connection Conductor cross section 2.5 mm² Width 29 mm Number of poles 4 Recess diameter 64 mm Outer diameter 90 mm Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Max. number of luminaires per miniature circuit breaker C16 – Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) – % Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Luminous flux in standby mode 148 lm RAL-number housing – Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) – % Rated life time L70/B50 at 25 °C – h Max. number of luminaires per miniature circuit breaker B16 – Number of lamps 1 Power factor 0.5 Maximum system power 2.5 W Number of lighting heads 1 Recess width – mm Flickering value Pst LM – Viewing distance – m Stroboscope effect value SVM – Nominal voltage 220 – 240 V Nominal current – mA Colour temperature 6200 – 6200 K Rated ambient temperature acc. IEC62722-2-1 5 – 35 °C Nominal operation time 3 – 3 h Constant luminous flux control No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 Yes Pictogram included No Suitable for standby switching No Suitable for continuous circuit No Replaceable control gear No With remote control No Light source included Yes With remote switch connection Yes · Technical Data Sheet – Click to Download
