Eaton Luminaire LED Emergency Open Area 1W White IP44
Eaton Luminaire LED Emergency Open Area 1W White IP44
Eaton Luminaire LED Emergency Open Area 1W White IP44 - Image 2

Eaton Luminaire LED Emergency Open Area 1W White IP44

£197.44 Incl. VAT

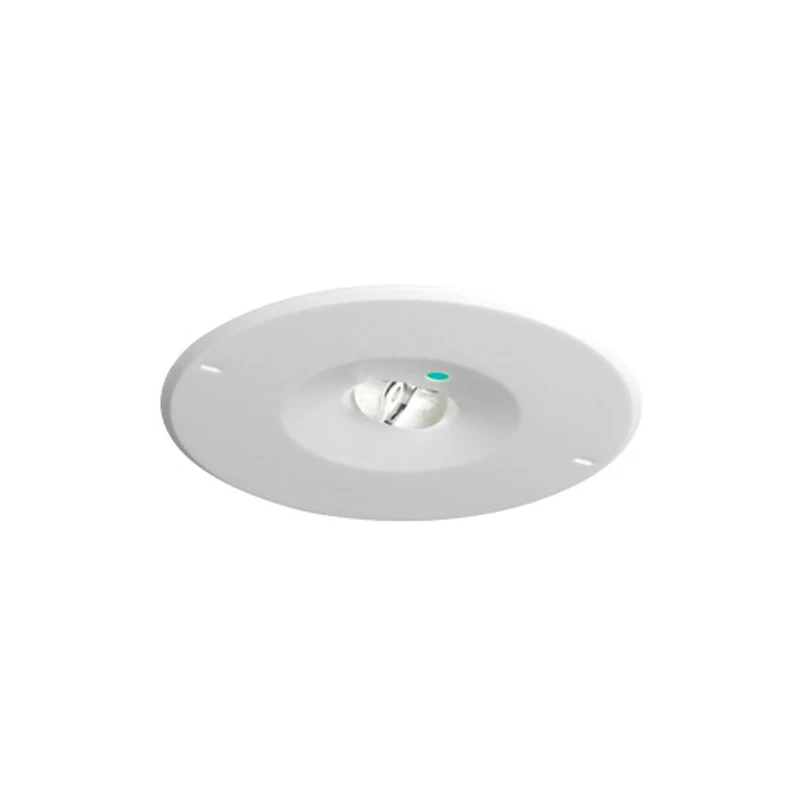

MP2O3H is a Micro point 2 Surface Emergency LED Luminaire, can be used for open area anti-panic lighting. This luminaires features versatile multi-functional use, low power consumption and first fix base for ease of installation. It has self-contained, slave, self-test and addressable testing options. The latest LED and optic technology are combined to provide high performance emergency lighting in commercial buildings where aesthetics are of prime importance, such as offices, retail or hospitality and leisure facilities. In addition ease of installation, reduced energy consumption and minimal maintenance reduce the total cost of ownership without compromising on performance. The innovative optic design has been developed and produced by Eaton to use light from the LED source as ef?ciently as possible to provide a virtually razor-straight rectangle or square of light that can be perfectly aligned for uniform distribution, providing unrivalled spacing performance. · · · Versatile multi-functional use (escape and open area anti-panic) · · IP44 ingress protection (from below ceiling) ideal for bathrooms · · Plug and socket supply for ease of installation and maintenance · · 60,000 hour life LED for reduced maintenance · · Flush mount · · Cut-out diameter 64mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: MP2O3H Categories: , , Brand: Product Code: 2500529416

Description

Technical Specifications  Technical Specifications Emergency luminaire Protection class according to IEC 61140 II Lamp cap/base None Light diffuser type Focal lens Housing material Plastic Degree of protection (IP rating) IP44 Battery chemistry NiCd Housing colour White Impact resistance (IK rating) IK04 Type of cabling Suitable for through wiring Control gear LED driver constant current Voltage type AC Mounting method Built-in Light source type LED non-replaceable Connection type Screw connection Conductor cross section 2.5 mm² Outer diameter 90 mm Recess diameter 64 mm Number of poles 4 Number of lighting heads 1 Recess width – mm Width 29 mm Viewing distance – m Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Stroboscope effect value SVM – Flickering value Pst LM – Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) – % Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) – % Rated life time L70/B50 at 25 °C – h Max. number of luminaires per miniature circuit breaker B16 – Max. number of luminaires per miniature circuit breaker C16 – Luminous flux in standby mode 153 lm RAL-number housing – Power factor 0.5 Number of lamps 1 Maximum system power 2.5 W Nominal voltage 220 – 240 V Nominal current – mA Colour temperature 6200 – 6200 K Rated ambient temperature acc. IEC62722-2-1 5 – 35 °C Nominal operation time 3 – 3 h Replaceable control gear No Constant luminous flux control No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 Yes Pictogram included No Suitable for standby switching No Suitable for continuous circuit No Light source included Yes With remote control No With remote switch connection Yes · Technical Data Sheet – Click to Download
