Eaton Luminaire LED Emergency Surface Open Area 1W White
Eaton Luminaire LED Emergency Surface Open Area 1W White
Eaton Luminaire LED Emergency Surface Open Area 1W White - Image 2

Eaton Luminaire LED Emergency Surface Open Area 1W White

£203.04 Incl. VAT

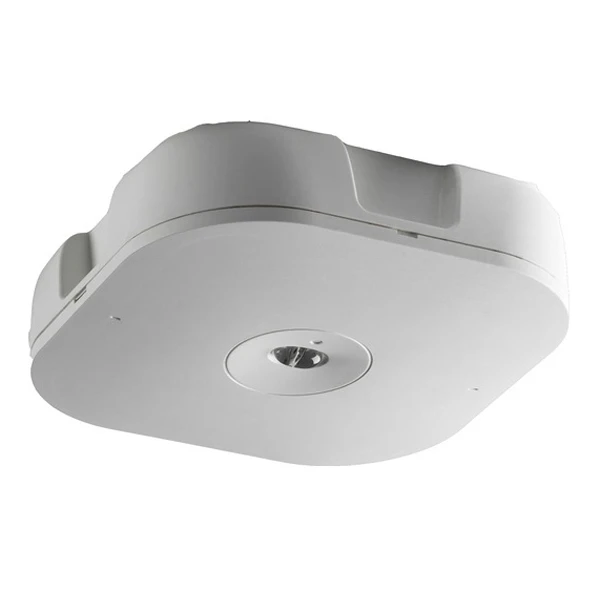

Eaton Micropoint 2 Open Area Safety Luminaire is surface mounted, with 3 hour maintained, high specification competitively priced emergency LED luminaire. It utilises the latest LED and optic technology to provide an unobtrusive, high quality, high performance luminaire for indoor use where aesthetics are of prime importance. Designed for ease of installation, reduced power consumption and minimal maintenance, reducing the TCO (total cost of ownership) without compromising on aesthetics. It utilises light efficiently from the LED to provide a uniform distribution in either an escape route or for anti-panic emergency lighting in open areas. This improves the performance and reduces the electrical power consumption. It utilises a touch sensitivity to improve ingress protection against water and dust. · · · Versatile multi-functional use · · Low power consumption reducing cost of ownership · · First fix base for ease of installation · · Excellent spacing reducing the quantity of fittings required · · 60000 hour life LED for reduced maintenance

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: MP2SO3H Categories: , Brand: Product Code: 2500611055

Description

Technical Specifications  Technical Specifications Emergency luminaire Lamp cap/base None Protection class according to IEC 61140 II Housing material Plastic Light diffuser type Focal lens Battery chemistry NiCd Degree of protection (IP rating) IP44 Housing colour White Impact resistance (IK rating) IK04 Type of cabling Suitable for through wiring Control gear LED driver constant current Voltage type AC Mounting method Ceiling surface mounting Light source type LED non-replaceable Connection type Screw connection Width 170 mm Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Max. number of luminaires per miniature circuit breaker C16 – Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) – % Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) – % Rated life time L70/B50 at 25 °C – h Max. number of luminaires per miniature circuit breaker B16 – Luminous flux in standby mode 144 lm RAL-number housing – Number of lamps 1 Power factor 0.5 Recess diameter – mm Maximum system power 2.5 W Stroboscope effect value SVM – Flickering value Pst LM – Viewing distance – m Number of poles 4 Recess width – mm Number of lighting heads 1 Outer diameter – mm Conductor cross section 2.5 mm² Nominal voltage 220 – 240 V Nominal current – mA Colour temperature 6200 – 6200 K Rated ambient temperature acc. IEC62722-2-1 5 – 35 °C Nominal operation time 3 – 3 h Replaceable control gear No Constant luminous flux control No With remote control No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 Yes Pictogram included No Suitable for standby switching No Suitable for continuous circuit No Light source included Yes With remote switch connection Yes
