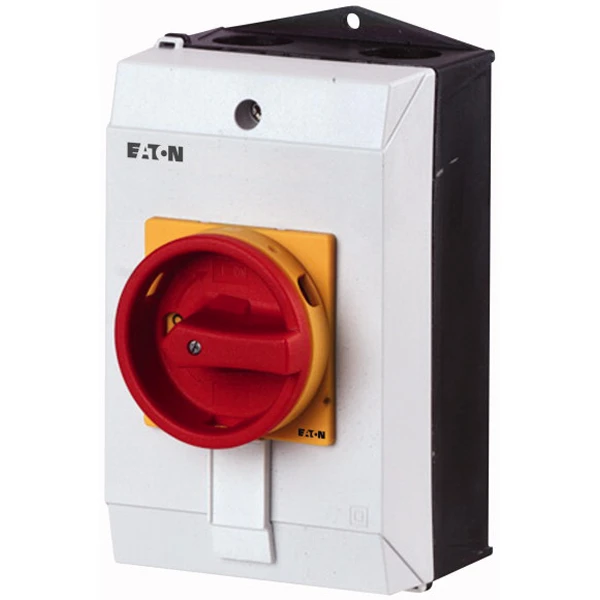

Eaton Main switch, P1, 25 A, surface mounting, 3 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (
Eaton Main switch, P1, 25 A, surface mounting, 3 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (
Eaton Main switch, P1, 25 A, surface mounting, 3 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 ( - Image 2

Eaton Main switch, P1, 25 A, surface mounting, 3 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (

£56.54 Incl. VAT

Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: P1, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 – 60 Hz 400 V: P = 11 kW, Rated uninterrupted current: Iu = 25 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3 · · · Colour: Red (Rotary Handle), Yellow (Locking Collar) · · Current Rating: 25A · · Height: 160mm · · Width: 100mm · · Depth: 80mm · · Frequency: 50 – 60Hz

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: P1-25/I2/SVB Categories: , , , Brand: Product Code: 2500094158

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Device construction Complete device in housing Colour control element Red Type of control element Door coupling rotary drive Degree of protection (NEMA) 12 Degree of protection (IP), front side IP65 Type of electrical connection of main circuit Screw connection Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 7.5 kW Number of poles 3 Conditioned rated short-circuit current Iq 80 kA Rated permanent current Iu 25 A Rated short-time withstand current lcw 0.64 kA Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as change-over contact 0 Rated operation power at AC-23, 400 V 13 kW Rated permanent current at AC-21, 400 V 25 A Switching power at 400 V 13 kW Rated permanent current at AC-23, 400 V 25 A Number of switches 1 Max. rated operation voltage Ue AC 690 V Rated operating voltage 690 – 690 V Motor drive integrated No Version as emergency stop installation Yes Version as main switch Yes Version as safety switch No Version as maintenance-/service switch Yes Interlockable Yes Version as reversing switch No Motor drive optional No Voltage release optional No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for distribution board installation No Suitable for intermediate mounting No
