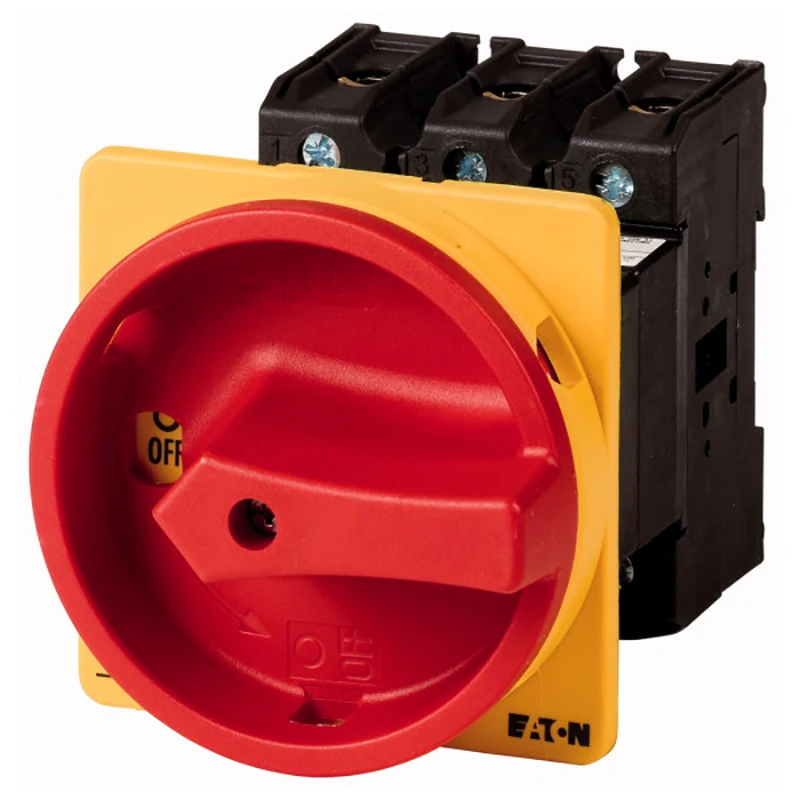

Eaton Main switch P3 63 A rear mounting 3 pole Emergency switching off function With red rotary handle and yellow locking ring Lockable in the 0 (Off) position

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Type of control element Door coupling rotary drive Colour control element Red Degree of protection (NEMA) 12 Degree of protection (IP), front side IP65 Device construction Suitable for fixed installation Type of electrical connection of main circuit Screw connection Width 87 mm Height 102 mm Number of poles 3 Depth 147 mm Rated short-time withstand current lcw 1.26 kA Number of auxiliary contacts as change-over contact 0 Conditioned rated short-circuit current Iq 100 kA Number of switches 1 Rated operation power at AC-23, 400 V 30 kW Max. rated operation voltage Ue AC 690 V Rated permanent current Iu 63 A Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 30 kW Rated permanent current at AC-21, 400 V 63 A Switching power at 400 V 30 kW Rated permanent current at AC-23, 400 V 63 A Rated operating voltage 690 – 690 V With pre-assembled cabling No Interlockable Yes Motor drive integrated No Version as maintenance-/service switch Yes Suitable for front mounting 4-hole No Suitable for distribution board installation No Suitable for intermediate mounting No Suitable for front mounting centre No Version as reversing switch No Motor drive optional No Voltage release optional No Version as emergency stop installation Yes Version as main switch Yes Version as safety switch No
