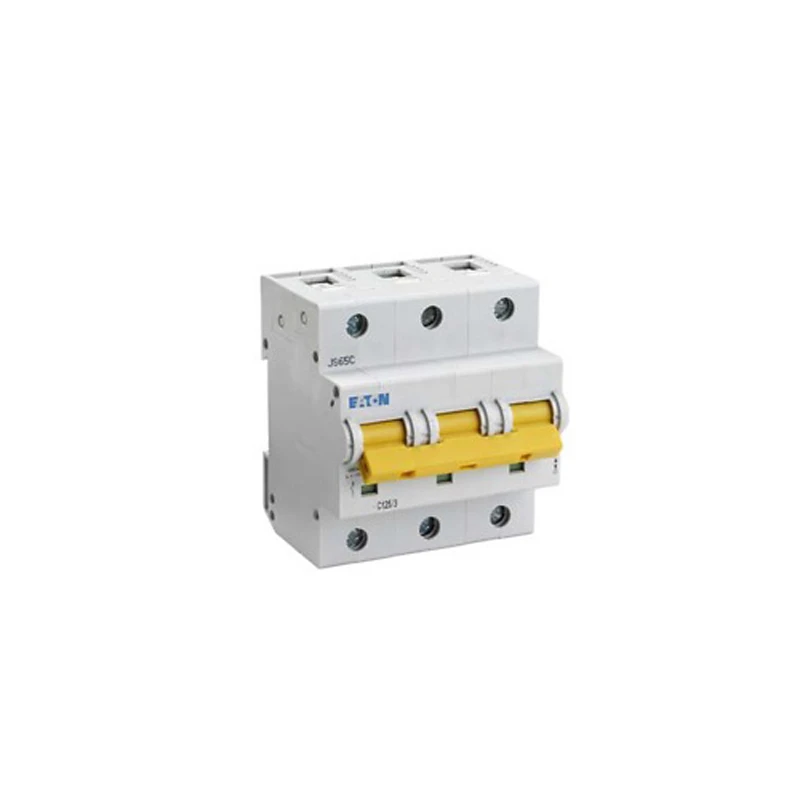

Eaton MCB TP Type B 125A 15Ka
Eaton MCB TP Type B 125A 15Ka
Eaton MCB TP Type B 125A 15Ka - Image 2

Eaton MCB TP Type B 125A 15Ka

£148.08 Incl. VAT

Eaton Memshield 3 Miniature Circuit Breaker is suitable for use with 250A high load distribution board. Memshield 3 delivers safe, reliable and high performance protection of electrical power distribution systems in accordance with BS EN 60439-3. · · · 15kA Short circuit rating (IEC/EN 60947-2)

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EMBS3125 Categories: , , Brand: Product Code: 2500330594

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Voltage type AC Degree of protection (IP rating) IP20 Recess depth 75 mm Rated insulation voltage Ui 440 V Rated current 125 A Current limiting class 3 Rated voltage 400 V Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Pollution degree 2 Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 0 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 0 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Number of protected poles 3 Width in number of modular spacings 4.5 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 2.5 – 50 mm² Connectable conductor cross section multi-wired 2.5 – 50 mm² Ambient temperature during operating -25 – 55 °C Flush-mounted installation No Explosion-proof No Concurrently switching N-neutral No Additional equipment possible Yes
