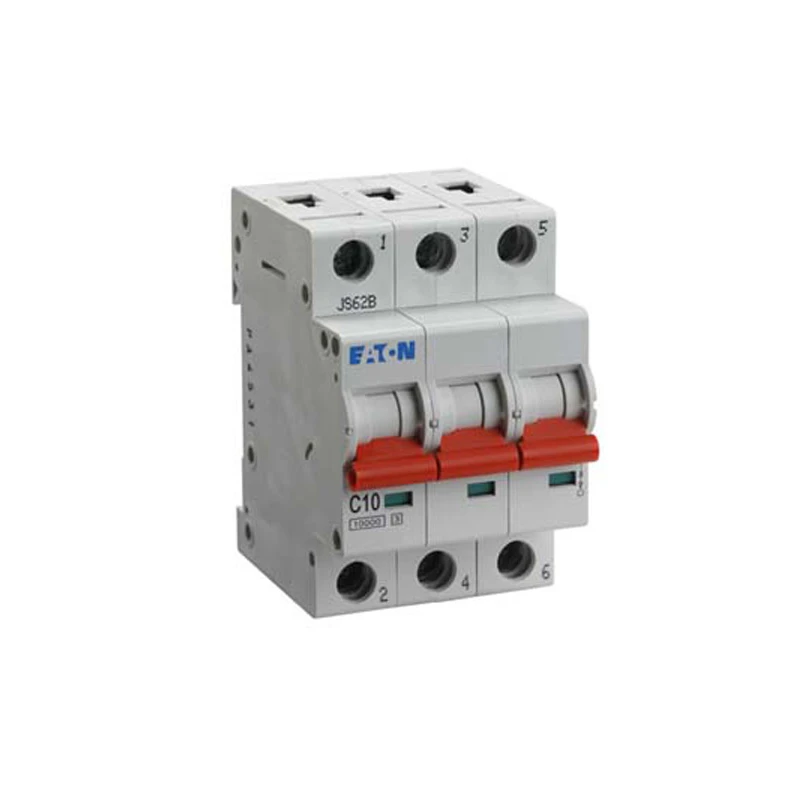

Eaton MCB Triple Pole Type B 63A 10/15Ka 54 x 80 x 75mm
Eaton MCB Triple Pole Type B 63A 10/15Ka 54 x 80 x 75mm

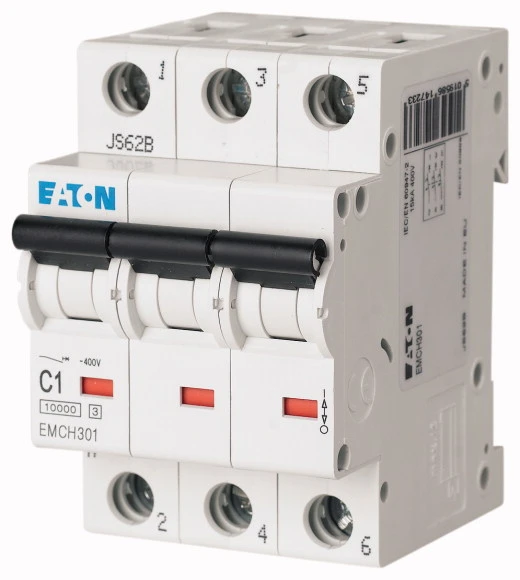

Eaton MCB Triple Pole Type B 63A 10/15Ka 54 x 80 x 75mm - Image 2
Eaton MCB Triple Pole Type B 63A 10/15Ka 54 x 80 x 75mm - Image 3

Eaton MCB Triple Pole Type B 63A 10/15Ka 54 x 80 x 75mm

£113.35 Incl. VAT

EM miniature circuit-breaker, 3 pole, trip type: B, rated operational current In: 63 A, rated switching capacity according to IEC/EN 60947-2: 15 kA, rated switching capacity according to IEC/EN 60898-1: 10 kA, switchgear for residential and non-residential applications · · · DIN rail mountable and suitable for use with both pin and comb type busbar systems · · Suitable for 230/400 VAC systems and are calibrated for use at 40°C · · Fitted with box clamp terminals suitable for use with cables up to 25mm2 · · Unique box clamp barrier to prevent incorrect cable insertion · · Positive contact is flag indicator · · Operating temperature -25 to 55 °C · · Impulse withstand voltage 5kV · · Energy limiting class is 3 · · Certified by KEMA

8 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EMBH363 Categories: , , Brand: Part Number: 2500330484

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Degree of protection (IP rating) IP20 Tripping characteristic (type/curve) B Voltage type AC Rated current 63 A Recess depth 70.5 mm Rated voltage 240 V Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of poles (total) 3 Rated impulse-withstand voltage (Uimp) 4 kV Current limiting class 3 Rated insulation voltage Ui 440 V Pollution degree 2 Over voltage category 3 Width in number of modular spacings 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 0 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 0 kA Number of protected poles 3 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 55 °C Concurrently switching N-neutral No Flush-mounted installation Yes Additional equipment possible Yes Explosion-proof No · Technical Data Sheet – Click to Download
