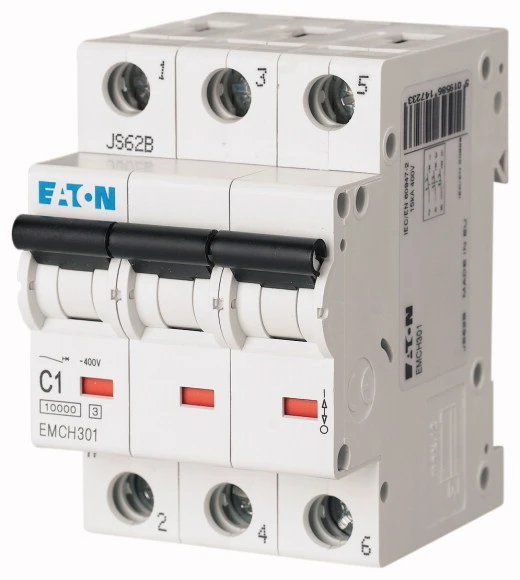

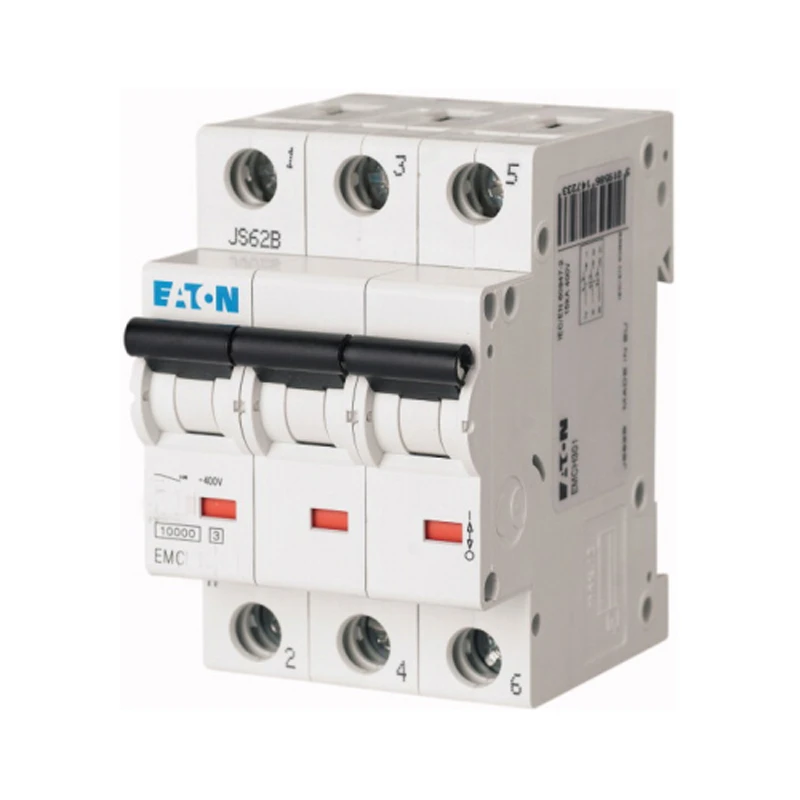

Eaton MCB Triple Pole Type B 6A 10/15Ka 54 x 80 x 75mm
Eaton MCB Triple Pole Type B 6A 10/15Ka 54 x 80 x 75mm
Eaton MCB Triple Pole Type B 6A 10/15Ka 54 x 80 x 75mm - Image 2
Eaton MCB Triple Pole Type B 6A 10/15Ka 54 x 80 x 75mm - Image 3

Eaton MCB Triple Pole Type B 6A 10/15Ka 54 x 80 x 75mm

£110.70 Incl. VAT

EM miniature circuit-breaker, 3 pole, trip type: B, rated operational current In: 6 A, rated switching capacity according to IEC/EN 60947-2: 15 kA, rated switching capacity according to IEC/EN 60898-1: 10 kA, switchgear for residential and non-residential applications · · · Box clamp terminal · · IP20 protection rating · · IEC 60898 and IEC 60947-2 standards · · M5 combination terminal screw · · Tripping characteristics B, C and D · · Rated currents up to 63 A

6 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EMBH306 Categories: , , Brand: Part Number: 2500330357

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Recess depth 70.5 mm Voltage type AC Degree of protection (IP rating) IP20 Rated current 6 A Rated voltage 240 V Tripping characteristic (type/curve) B Number of protected poles 3 Over voltage category 3 Current limiting class 3 Rated insulation voltage Ui 440 V Width in number of modular spacings 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 0 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 0 kA Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Pollution degree 2 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 55 °C Concurrently switching N-neutral No Additional equipment possible Yes Flush-mounted installation Yes Explosion-proof No · Technical Data Sheet – Click to Download
