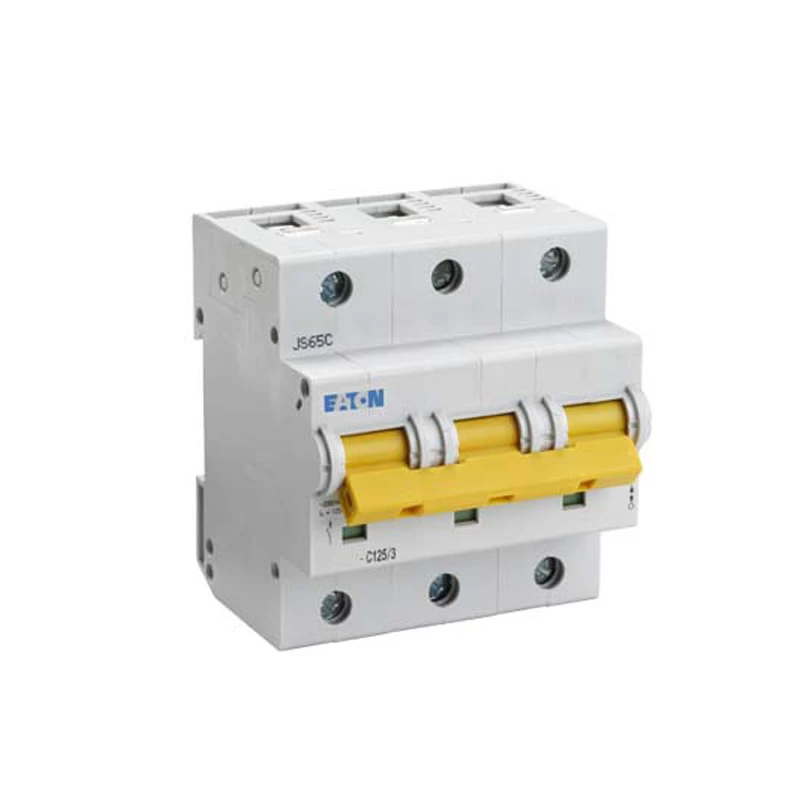

Eaton MCB Triple Pole Type C 100A 20Ka 81 x 90 x 80.5mm
£153.58 Incl. VAT
EM miniature circuit-breaker, 3 pole, trip type: C, rated operational current In: 100 A, rated switching capacity according to IEC/EN 60947-2: 20 kA, switchgear for residential and non-residential applications · · · DIN rail mountable and suitable for use with both pin and comb type busbar systems · · Designed & tested in accordance with IEC 60898 & IEC 60947-2 · · Suitable for 230/400 VAC systems and are calibrated for use at 40°C · · Fitted with box clamp terminals suitable for use with cables up to 25mm2 · · Suites with the other modular devices including RCBOs, RCCBs and isolators · · Positive contact is flag indicator · · Operating temperature -25 to 55 °C · · Impulse withstand voltage 4kV · · Certified by KEMA · · Box clamp barrier to prevent incorrect cable insertion
Out of stock
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Degree of protection (IP rating) IP20 Recess depth 75 mm Rated current 100 A Voltage type AC Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Rated insulation voltage Ui 440 V Width in number of modular spacings 4.5 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 20 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 0 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 0 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated voltage 400 V Current limiting class 3 Connectable conductor cross section solid-core 2.5 – 50 mm² Frequency 50 – 60 Hz Number of protected poles 3 Number of poles (total) 3 Pollution degree 2 Over voltage category 3 Connectable conductor cross section multi-wired 2.5 – 50 mm² Ambient temperature during operating -25 – 55 °C Explosion-proof No Concurrently switching N-neutral No Additional equipment possible Yes Flush-mounted installation No · Technical Data Sheet – Click to Download
