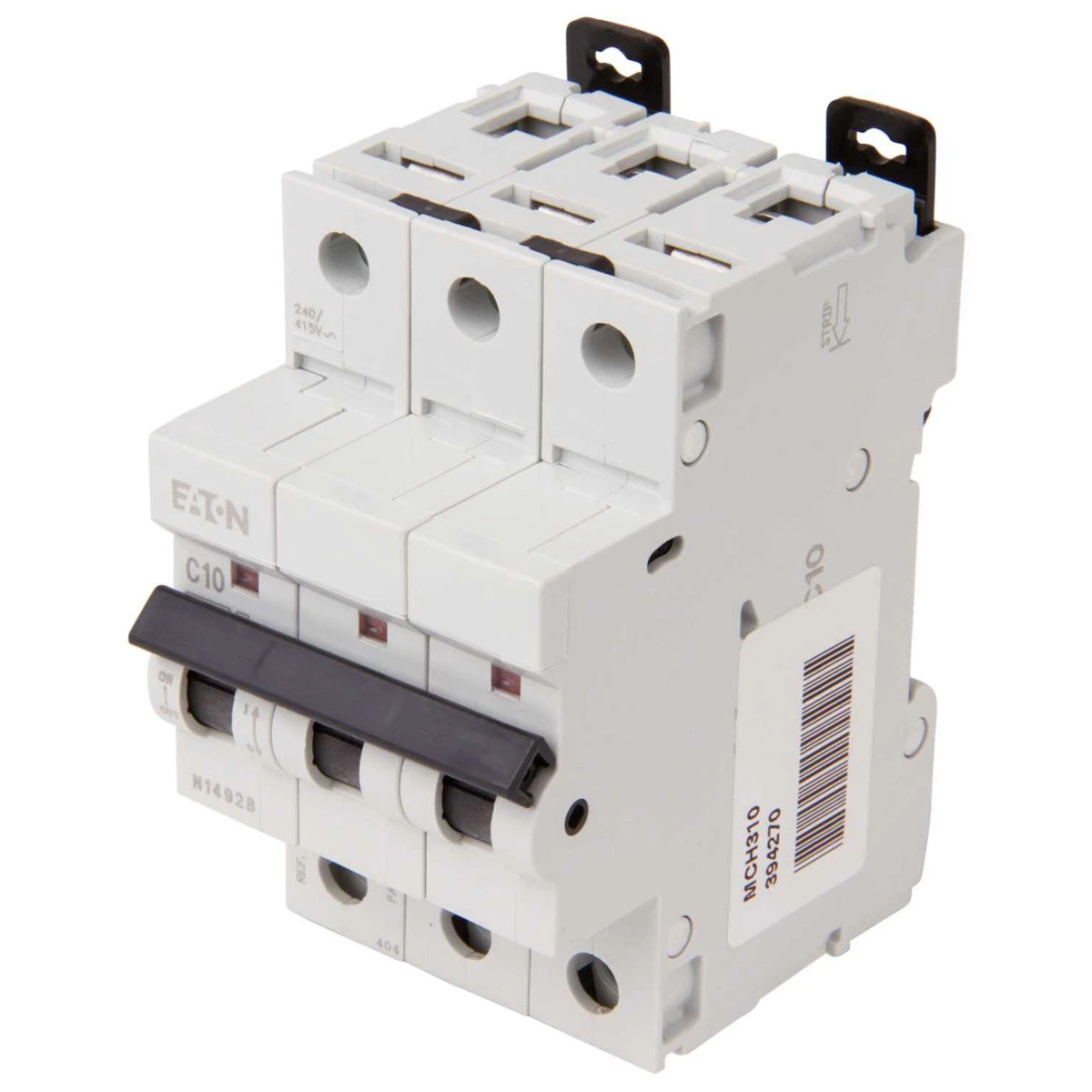

Eaton MCB Triple Pole Type C 10A 10kA
£136.73 Incl. VAT
MCH310 · · · DIN rail mountable and suitable for use with both pin and comb type busbar systems · · Designed & tested in accordance with IEC 60898 & IEC 60947-2 · · Suitable for 230/400 VAC systems and are calibrated for use at 40°C · · Fitted with box clamp terminals suitable for use with cables up to 25mm2 · · Positive contact is flag indicator · · Operating temperature -25 to 55 °C · · Impulse withstand voltage 5kV · · Energy limiting class is 3 · · Certified by KEMA · · Box clamp barrier to prevent incorrect cable insertion
2 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Voltage type AC Number of poles (total) 3 Rated current 10 A · Technical Data Sheet – Click to Download
