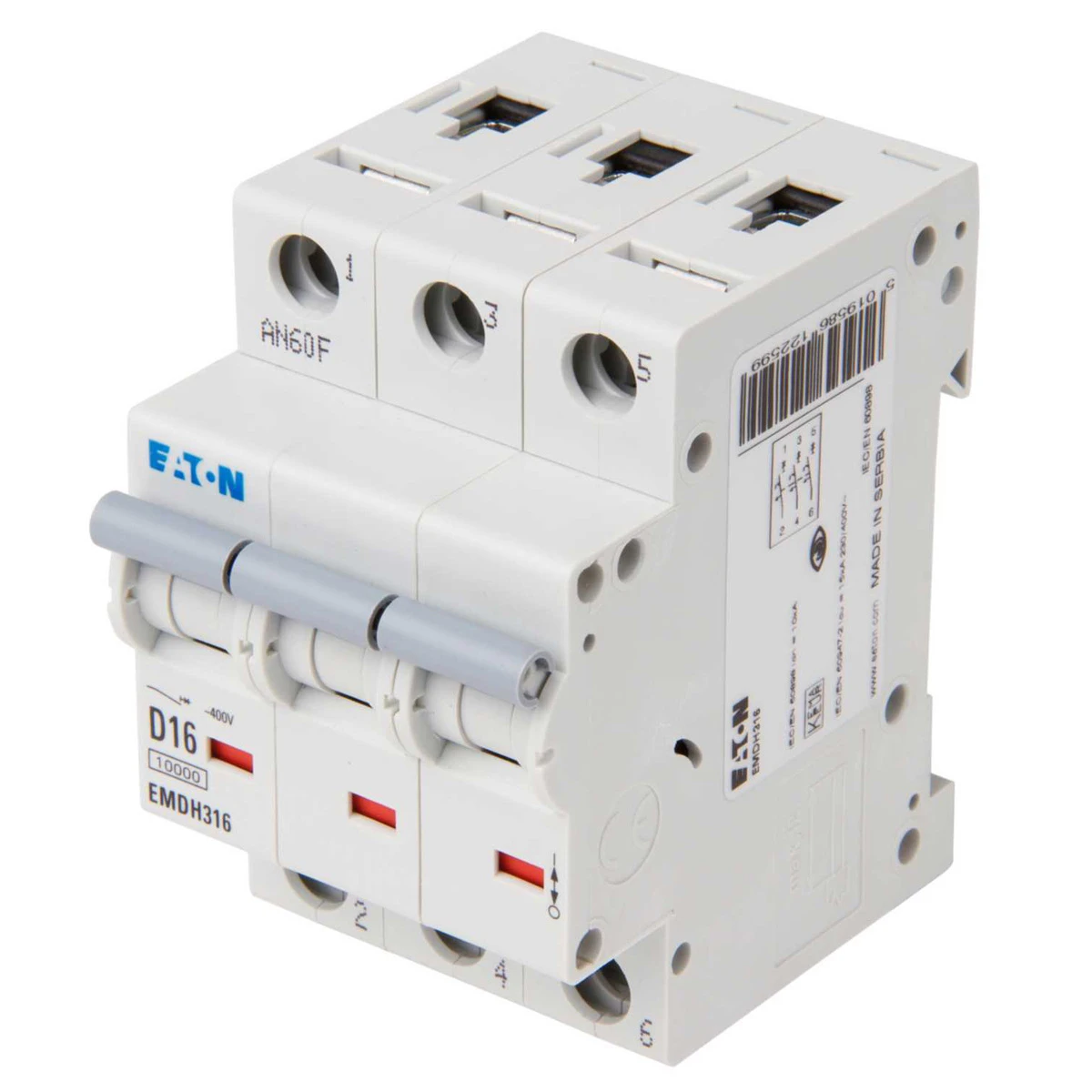

Eaton MCB Triple Pole Type D 16A 10/15kA
Eaton MCB Triple Pole Type D 16A 10/15kA
Eaton MCB Triple Pole Type D 16A 10/15kA - Image 2
Eaton MCB Triple Pole Type D 16A 10/15kA - Image 3

Eaton MCB Triple Pole Type D 16A 10/15kA

£94.10 Incl. VAT

EM miniature circuit-breaker, 3 pole, trip type: D, rated operational current In: 16 A, rated switching capacity according to IEC/EN 60947-2: 15 kA, rated switching capacity according to IEC/EN 60898-1: 10 kA, switchgear for residential and non-residential applications · · · DIN rail mountable and suitable for use with both pin and comb type busbar systems · · Designed & tested in accordance with IEC 60898 & IEC 60947-2 · · Suitable for 230/400 VAC systems and are calibrated for use at 40°C · · Fitted with box clamp terminals suitable for use with cables up to 25mm2 · · Suites with the other modular devices including RCBOs, RCCBs and isolators · · Positive contact is flag indicator · · Impulse withstand voltage 4kV · · Certified by KEMA · · Box clamp barrier to prevent incorrect cable insertion

1 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EMDH316 Categories: , , Brand: Part Number: 2500332148

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Degree of protection (IP rating) IP20 Voltage type AC Tripping characteristic (type/curve) D Recess depth 70.5 mm Rated current 16 A Rated insulation voltage Ui 440 V Rated voltage 400 V Current limiting class 3 Over voltage category 3 Pollution degree 2 Width in number of modular spacings 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of protected poles 3 Number of poles (total) 3 Rated impulse-withstand voltage (Uimp) 4 kV Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 75 °C Concurrently switching N-neutral No Explosion-proof No Flush-mounted installation No Additional equipment possible Yes · Technical Data Sheet – Click to Download
