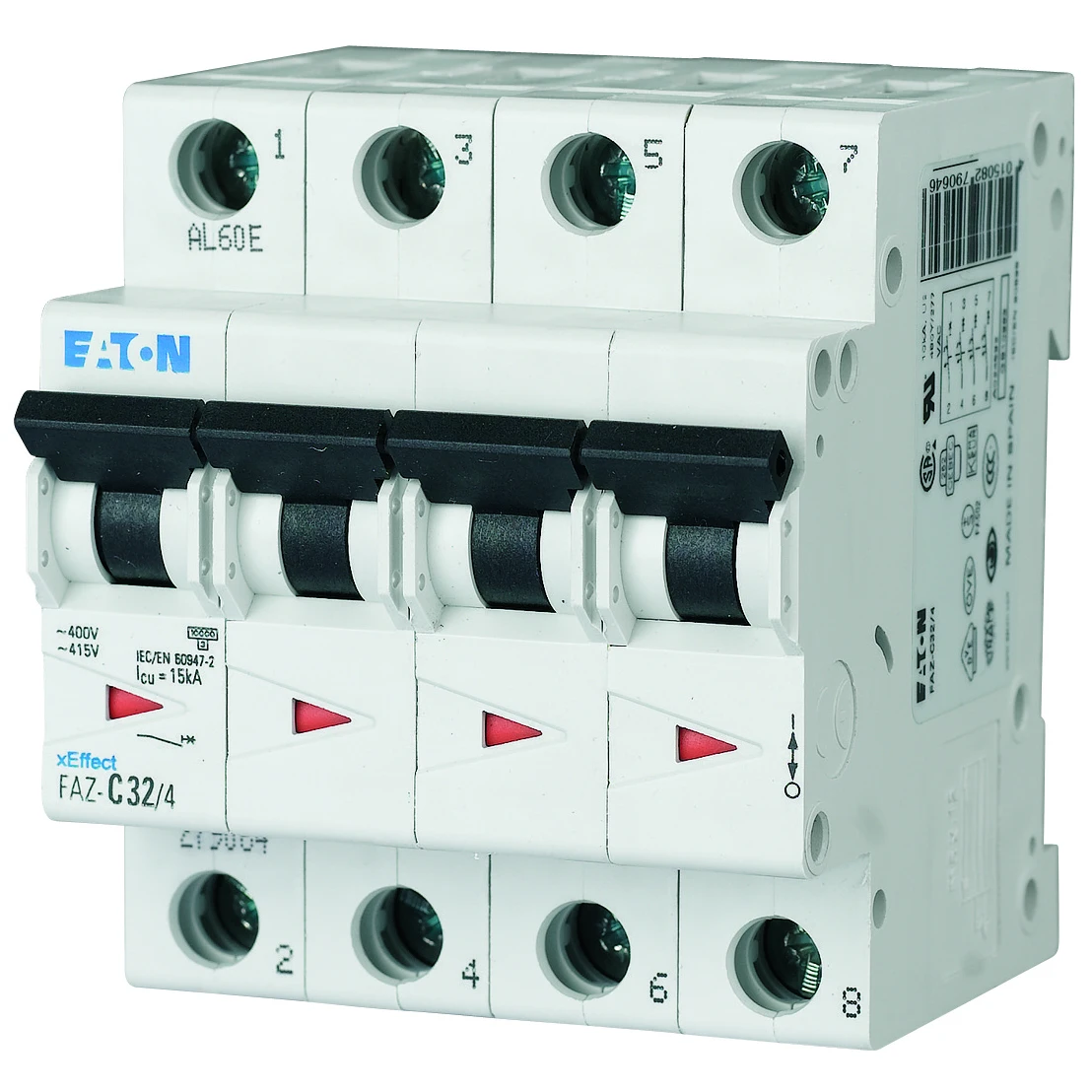

Eaton MCB Y7-279064 4P Type C 32A 10Ka
Eaton MCB Y7-279064 4P Type C 32A 10Ka
Eaton MCB Y7-279064 4P Type C 32A 10Ka - Image 2

Eaton MCB Y7-279064 4P Type C 32A 10Ka

£225.46 Incl. VAT

· · FAZ supplementary protectors – For use in applications for which UL 1077 or CSA C22.2 No. 235 are re · · Thermal-magnetic overcurrent protection. · · UL 1053 RCCBs · · Current limiting design provides fast short-circuit interruption that reduces the let-through energy · · Power to the circuit breakers can be fed from the line or load side. · · Easy installation on DIN rail. Module width of only 17.5 mm (per pole).

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: FAZ-C32/4 Categories: , , Brand: Product Code: 2500167865

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Degree of protection (IP rating) IP20 Recess depth 70.5 mm Voltage type AC Rated current 32 A Rated voltage 400 V Rated impulse-withstand voltage (Uimp) 4 kV Power loss 11.8 W Width in number of modular spacings 4 Rated insulation voltage Ui 440 V Pollution degree 2 Current limiting class 3 Over voltage category 3 Number of poles (total) 4 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Number of protected poles 4 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 75 °C Concurrently switching N-neutral Yes Explosion-proof No Additional equipment possible Yes Flush-mounted installation No
