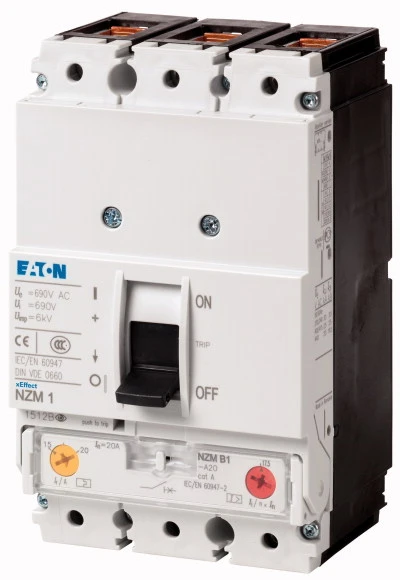

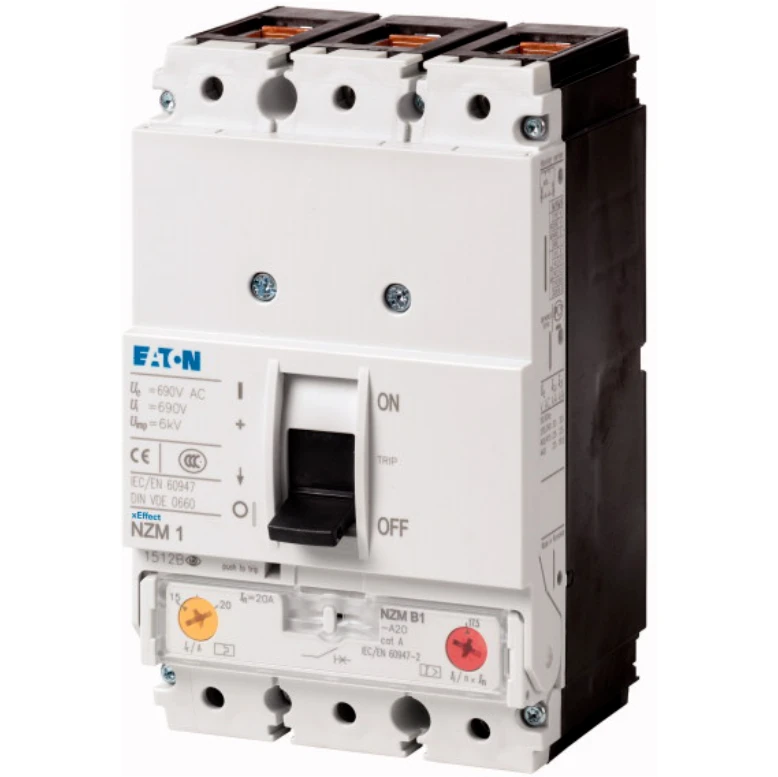

Eaton MCCB Moeller Series Nzm Circuit breaker 3 Pole 63A Type C A63

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Position of connection for main current circuit Front Device construction Built-in device fixed built-in technique Degree of protection (IP rating) IP20 Type of electrical connection of main circuit Frame clamp Type of control element Rocker lever Number of auxiliary contacts as normally open contact 0 Number of poles 3 Number of auxiliary contacts as normally closed contact 0 Power loss 14.2 W Rated permanent current Iu 63 A Number of auxiliary contacts as change-over contact 0 Overload release current setting 50 – 63 A Integrated earth fault protection No With integrated under voltage release No Motor drive integrated No Adjustment range undelayed short-circuit release 380 – 630 A Adjustment range short-term delayed short-circuit release 0 – 0 A Rated voltage 690 – 690 V Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 36 kA Switched-off indicator available No Suitable for DIN rail (top hat rail) mounting No Motor drive optional No DIN rail (top hat rail) mounting optional Yes Complete device with protection unit Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
