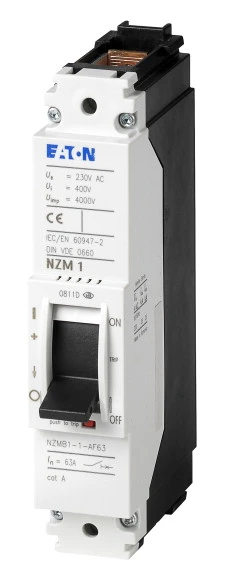

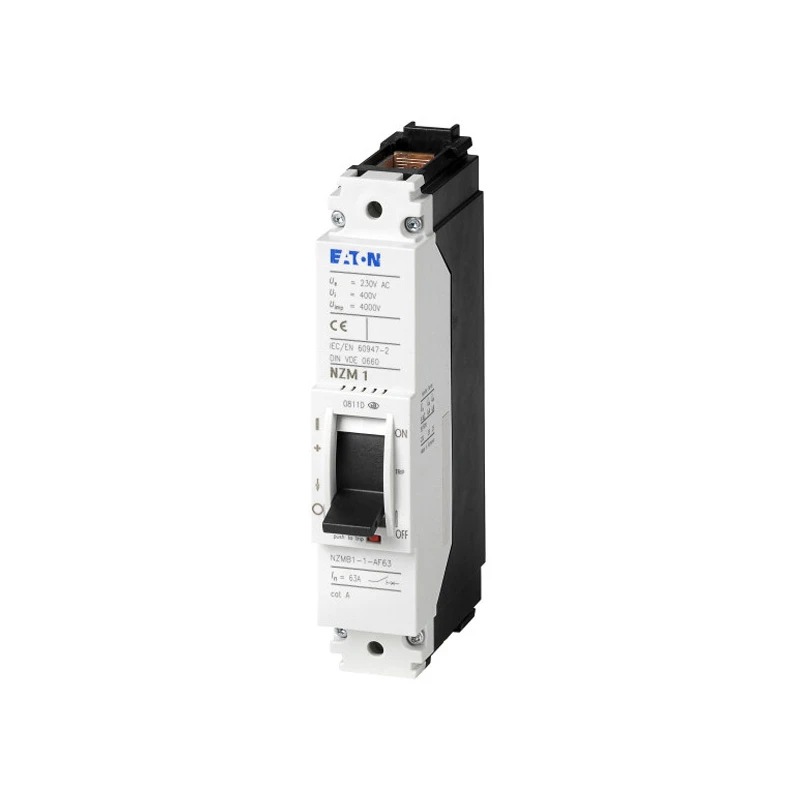

Eaton MCCB Single Pole Outgoing NZM1 Frame 100A 25kA
£171.16 Incl. VAT
This is a 100A, 25kA, 1 module, single pole, outgoing MCCB. It has a NZM1 frame and is to be used with Memshield 3 items. It has a maximum cable capacity of 70mm². Dimensions: 145x30x73mm.A Molded Case Circuit Breaker (MCCB) that provides overload and short-circuit protection for electrical circuits. It is a single-pole breaker, meaning that it protects one circuit at a time. The NZMB1-1-AF100 has a 100A rating, which means that it can safely carry a current of up to 100A. It also has a 25kA short-circuit rating, which means that it can safely interrupt a short-circuit current of up to 25kA.A member of Eaton’s Memshield 3 family of MCCBs. Memshield 3 is a patented technology that provides enhanced protection against arc flash hazards. Arc flash is a sudden release of electrical energy that can cause severe burns and other injuries. Memshield 3 helps to reduce the risk of arc flash by providing a barrier between the live parts of the circuit breaker and the operator.A safe and reliable way to protect electrical circuits. It is a valuable tool for any electrician or facility manager. · · · Utilization category to IEC/EN 60947-2 · · Rated operational voltage [Ue] 440 V AC · · Installation type Fixed · · Number of poles 3 pole
7 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Moulded case circuit breaker (MCCB) Position of connection for main current circuit Front Degree of protection (IP rating) IP20 Type of electrical connection of main circuit Frame clamp Type of control element Rocker lever Device construction Built-in device fixed built-in technique Power loss 21.9 W Overload release current setting 100 – 100 A Rated voltage 230 – 230 V Number of poles 1 Number of auxiliary contacts as normally open contact 0 Rated permanent current Iu 100 A Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as change-over contact 0 Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 25 kA Adjustment range short-term delayed short-circuit release 0 – 0 A Adjustment range undelayed short-circuit release 1000 – 1000 A Motor drive optional No DIN rail (top hat rail) mounting optional No Complete device with protection unit Yes With integrated under voltage release No Integrated earth fault protection No Switched-off indicator available No Suitable for DIN rail (top hat rail) mounting No Motor drive integrated No · Technical Data Sheet – Click to Download
