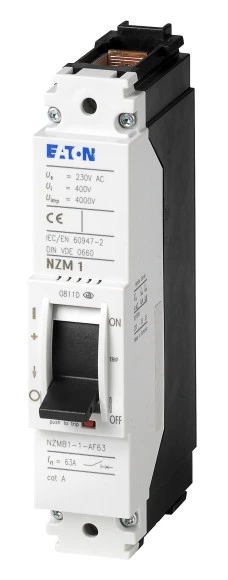

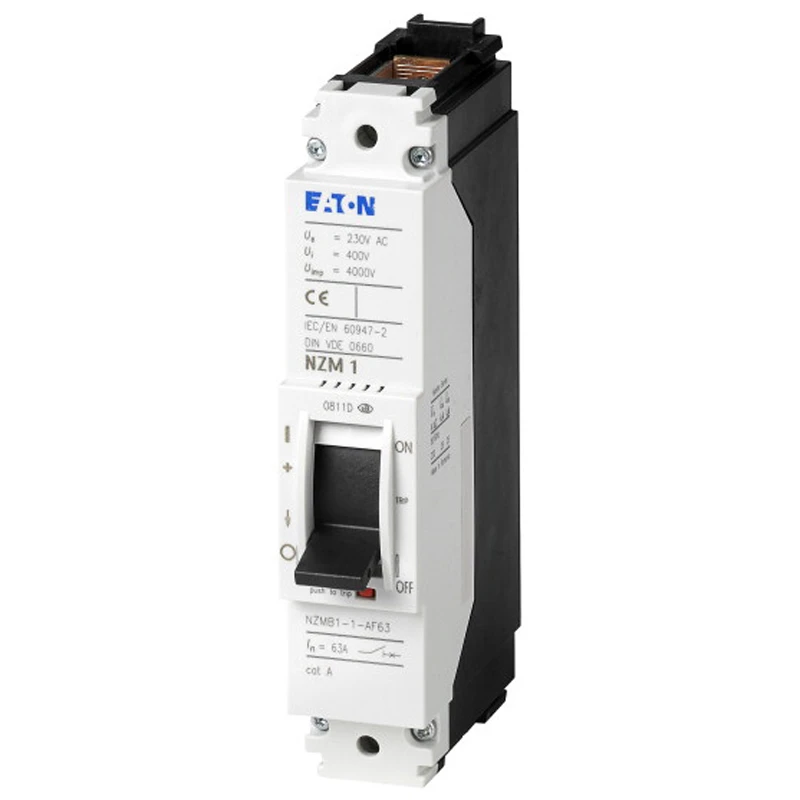

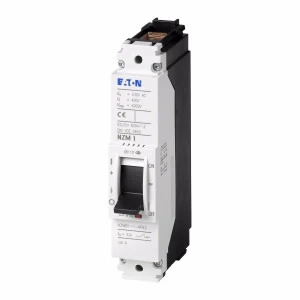

Eaton MCCB Single Pole Outgoing NZM1 Frame 20A 25kA

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Position of connection for main current circuit Front Degree of protection (IP rating) IP20 Type of control element Rocker lever Type of electrical connection of main circuit Frame clamp Device construction Built-in device fixed built-in technique Number of auxiliary contacts as change-over contact 0 Power loss 9.8 W Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 25 kA Overload release current setting 20 – 20 A Adjustment range undelayed short-circuit release 320 – 320 A Adjustment range short-term delayed short-circuit release 0 – 0 A Rated voltage 230 – 230 V Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as normally closed contact 0 Rated permanent current Iu 20 A Number of poles 1 Motor drive integrated No Switched-off indicator available No Suitable for DIN rail (top hat rail) mounting No Motor drive optional No DIN rail (top hat rail) mounting optional No Complete device with protection unit Yes With integrated under voltage release No Integrated earth fault protection No · Technical Data Sheet – Click to Download
