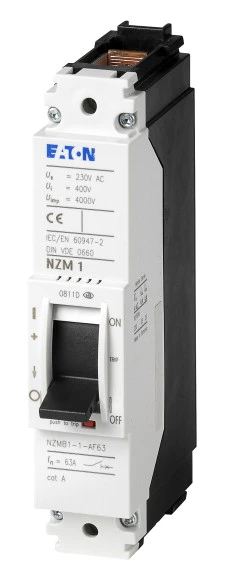

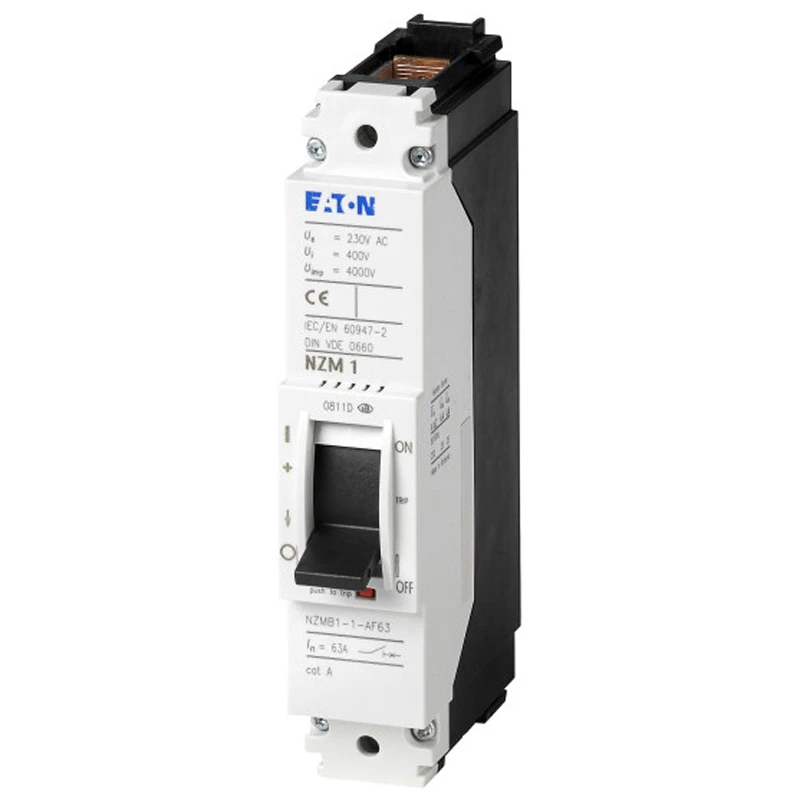

Eaton MCCB Single Pole Outgoing NZM1 Frame 40A 25kA

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Position of connection for main current circuit Front Degree of protection (IP rating) IP20 Type of electrical connection of main circuit Frame clamp Type of control element Rocker lever Device construction Built-in device fixed built-in technique Number of auxiliary contacts as normally open contact 0 Overload release current setting 40 – 40 A Rated voltage 230 – 230 V Rated permanent current Iu 40 A Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 25 kA Number of auxiliary contacts as change-over contact 0 Power loss 10.7 W Number of poles 1 Number of auxiliary contacts as normally closed contact 0 Adjustment range short-term delayed short-circuit release 0 – 0 A Adjustment range undelayed short-circuit release 340 – 340 A With integrated under voltage release No Integrated earth fault protection No Motor drive optional No DIN rail (top hat rail) mounting optional No Complete device with protection unit Yes Motor drive integrated No Switched-off indicator available No Suitable for DIN rail (top hat rail) mounting No · Technical Data Sheet – Click to Download
