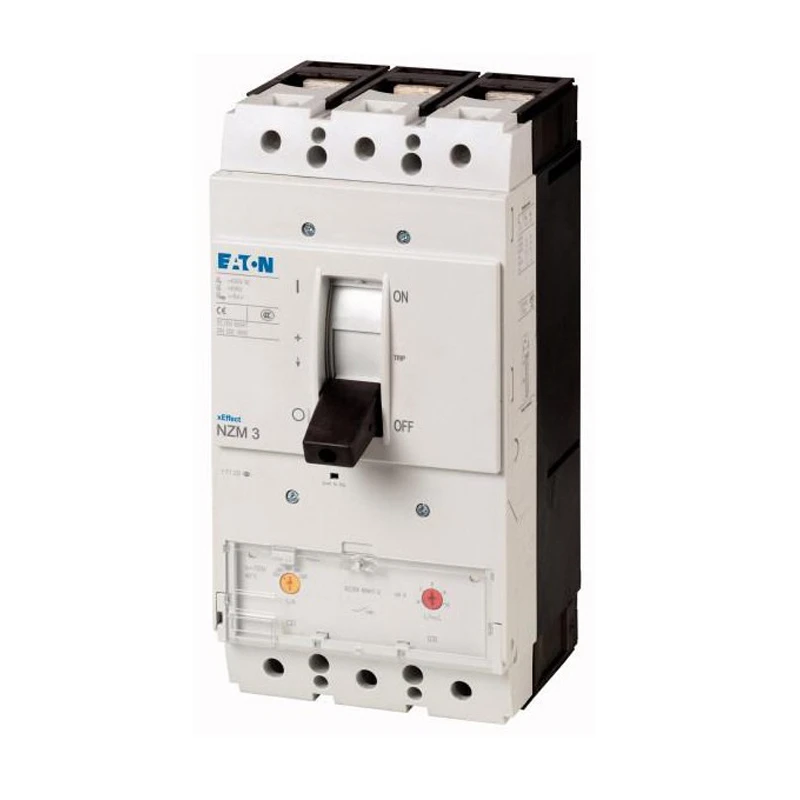

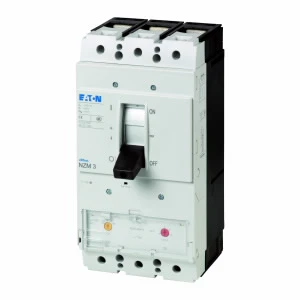

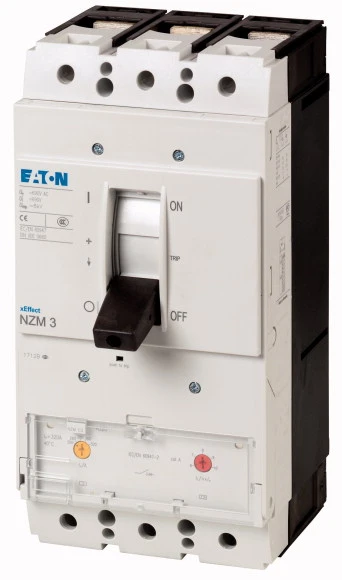

Eaton MCCB Triple Pole Incoming 400A 50Ka

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Position of connection for main current circuit Front Degree of protection (IP rating) IP20 Device construction Built-in device fixed built-in technique Type of electrical connection of main circuit Screw connection Type of control element Rocker lever Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Number of poles 3 Overload release current setting 320 – 400 A Motor drive integrated No Adjustment range undelayed short-circuit release 2400 – 4000 A Adjustment range short-term delayed short-circuit release 0 – 0 A Rated voltage 690 – 690 V Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 50 kA Rated permanent current Iu 400 A Number of auxiliary contacts as change-over contact 0 Switched-off indicator available No Suitable for DIN rail (top hat rail) mounting No DIN rail (top hat rail) mounting optional No Complete device with protection unit Yes Motor drive optional Yes With integrated under voltage release No Integrated earth fault protection No · Technical Data Sheet – Click to Download
