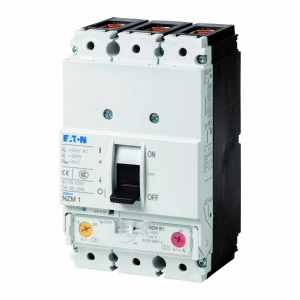

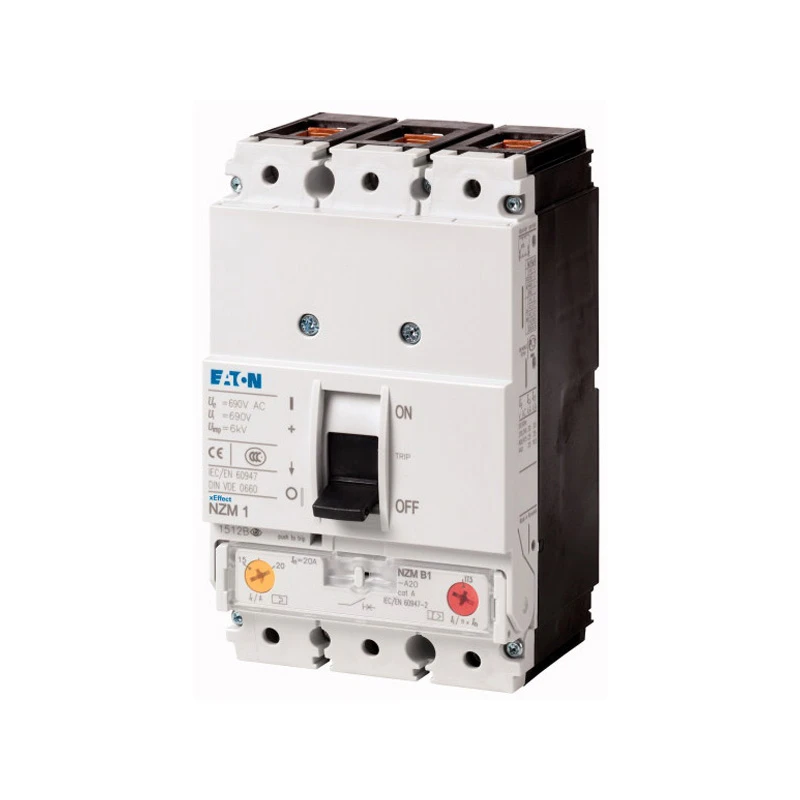

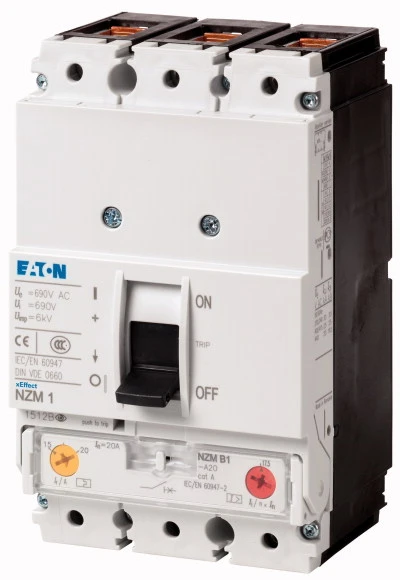

Eaton MCCB Triple Pole Outgoing NZM1 Frame 100A 25kA

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Type of control element Rocker lever Type of electrical connection of main circuit Frame clamp Position of connection for main current circuit Front Device construction Built-in device fixed built-in technique Degree of protection (IP rating) IP20 Power loss 21.9 W Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 25 kA Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as change-over contact 0 Overload release current setting 80 – 100 A Motor drive optional No Adjustment range undelayed short-circuit release 600 – 1000 A Adjustment range short-term delayed short-circuit release 0 – 0 A Rated voltage 440 – 440 V Number of poles 3 Number of auxiliary contacts as normally open contact 0 Rated permanent current Iu 100 A DIN rail (top hat rail) mounting optional Yes Complete device with protection unit Yes Motor drive integrated No With integrated under voltage release No Integrated earth fault protection No Switched-off indicator available No Suitable for DIN rail (top hat rail) mounting No · Technical Data Sheet – Click to Download
