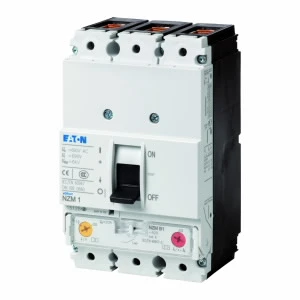

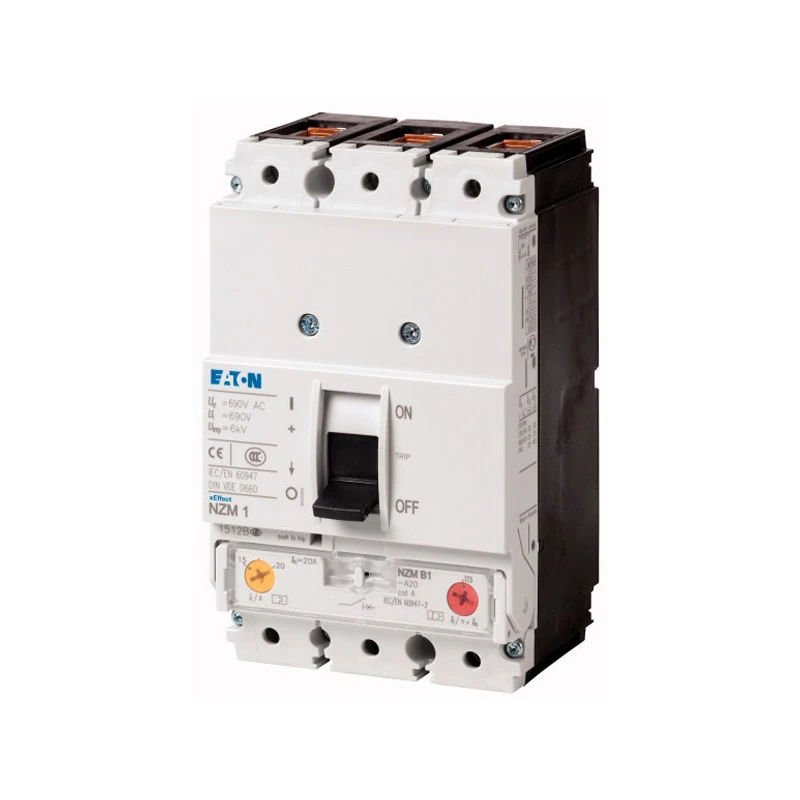

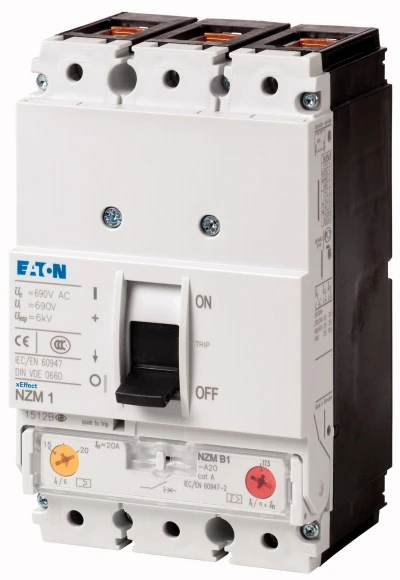

Eaton MCCB Triple Pole Outgoing NZM1 Frame 32A 25kA
£255.02 Incl. VAT
Outgoing Device Circuit-Breaker, with box terminal, 70mm² maximum cable capacity and 0.8 to 1 x In thermal trip adjustment. This circuit-breaker can be used universally from the smallest of service distribution boards, to machine controls or motor starter combinations, up to large energy distribution systems with a short-circuit breaking capacity. · · · Breaking Capacity: 25kA · · Current Rating: 32A · · Height: 145mm · · Range: NZM · · Width: 90mm · · Depth: 84.5mm
7 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Moulded case circuit breaker (MCCB) Position of connection for main current circuit Front Type of electrical connection of main circuit Frame clamp Type of control element Rocker lever Degree of protection (IP rating) IP20 Overload release current setting 25 – 32 A Number of poles 3 Rated permanent current Iu 32 A Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as change-over contact 0 Device construction Built-in device fixed built-in technique Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 25 kA Rated voltage 440 – 440 V Adjustment range short-term delayed short-circuit release 0 – 0 A Adjustment range undelayed short-circuit release 350 – 350 A With integrated under voltage release No Integrated earth fault protection No Motor drive optional No DIN rail (top hat rail) mounting optional Yes Complete device with protection unit Yes Motor drive integrated No Switched-off indicator available No Suitable for DIN rail (top hat rail) mounting No · Technical Data Sheet – Click to Download
