Eaton MCCB Triple Pole Outgoing Screw Terminal 20A 25kA
Eaton MCCB Triple Pole Outgoing Screw Terminal 20A 25kA

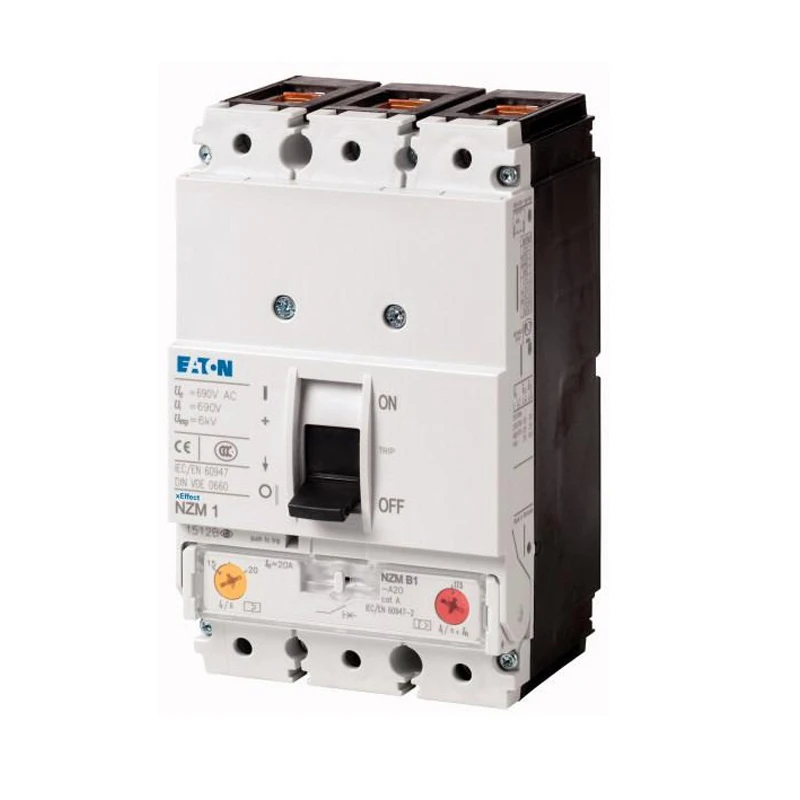

Eaton MCCB Triple Pole Outgoing Screw Terminal 20A 25kA - Image 2

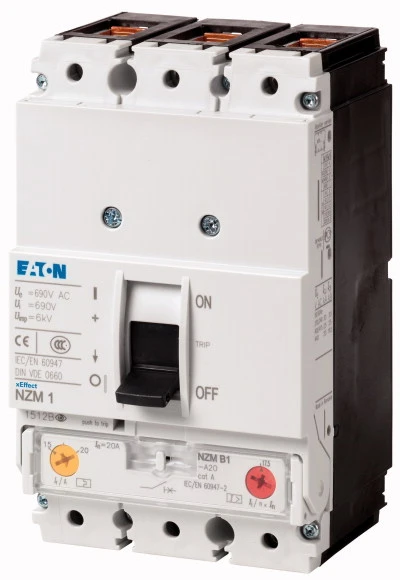

Eaton MCCB Triple Pole Outgoing Screw Terminal 20A 25kA - Image 3

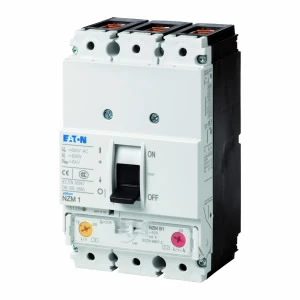

Eaton MCCB Triple Pole Outgoing Screw Terminal 20A 25kA - Image 4

Eaton MCCB Triple Pole Outgoing Screw Terminal 20A 25kA

£255.02 Incl. VAT

Eaton Memshield 3 MCCB is certified to IEC60947-2 standards, kA ratings are at 400VAC. The MCCB panel board providing all the options you need from a straight forward panel board to a comprehensive panel board system. The range now offers a variety of incoming devices and a greater choice of outgoing ways to provide more flexibility and choice to the user. It is providing safety, reliability and performance in commercial, industrial applications. The triple pole thermal trip adjustment 0.8 to 1 x In, magnetic trip adjustment 6 to 10 x In. · · · Breaking Capacity: 25kA · · Current Rating: 20A · · Height: 145mm · · Range: NZM · · Width: 90mm · · Depth: 84.5mm

33 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 280987 Categories: , , Brand: Part Number: 2500461583

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Position of connection for main current circuit Front Degree of protection (IP rating) IP20 Type of control element Rocker lever Type of electrical connection of main circuit Frame clamp Device construction Built-in device fixed built-in technique Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as change-over contact 0 Overload release current setting 15 – 20 A Adjustment range undelayed short-circuit release 350 – 350 A Adjustment range short-term delayed short-circuit release 0 – 0 A Rated voltage 440 – 440 V Power loss 9.8 W Number of poles 3 Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 25 kA Rated permanent current Iu 20 A With integrated under voltage release No Integrated earth fault protection No Motor drive integrated No Motor drive optional No Switched-off indicator available No Suitable for DIN rail (top hat rail) mounting No DIN rail (top hat rail) mounting optional Yes Complete device with protection unit Yes · Technical Data Sheet – Click to Download
