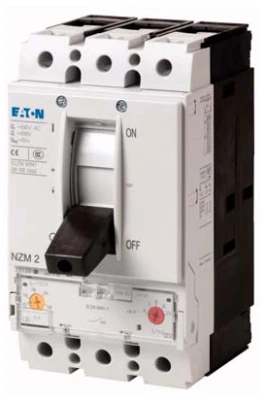

Eaton MCCB Y7-259093 TP 200A 50Ka Thermal Magnetic
Eaton MCCB Y7-259093 TP 200A 50Ka Thermal Magnetic
Eaton MCCB Y7-259093 TP 200A 50Ka Thermal Magnetic - Image 2

Eaton MCCB Y7-259093 TP 200A 50Ka Thermal Magnetic

£1,046.81 Incl. VAT

Circuit-breaker NZM2, 3 pole, Switching capacity 400/415 V 50 Hz( Icu ): 50 kA, Rated current = rated uninterrupted current Rated current = rated uninterrupted current( In = Iu ): 200 A, Installation type: Fixed, Screw connection, Standard/Approval: IEC, Protective function: System and cable protection · · · 32234575 · · Extensive list of accessories for multiple installation options · · Several installation modes are optional · · Worldwide approvals available including IEC, UL/CSA and CCC · · Innovative switching technology with a double-break contact system reduces clearing time. In the eve · · Available on-board diagnostics with data logging capability allows you to monitor critical circuits

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NZMN2-A200 Categories: , , Brand: Product Code: 2500147695

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Type of control element Rocker lever Position of connection for main current circuit Front Degree of protection (IP rating) IP20 Type of electrical connection of main circuit Screw connection Device construction Suitable for fixed installation Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as change-over contact 0 Number of poles 3 Rated permanent current Iu 200 A Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 50 kA Overload release current setting 160 – 200 A Power loss 48 W Rated voltage 690 – 690 V Adjustment range short-term delayed short-circuit release 0 – 0 A Adjustment range undelayed short-circuit release 1200 – 2000 A Motor drive integrated No With integrated under voltage release No Integrated earth fault protection No Switched-off indicator available No Suitable for DIN rail (top hat rail) mounting No Motor drive optional Yes DIN rail (top hat rail) mounting optional Yes Complete device with protection unit Yes · Technical Data Sheet – Click to Download
