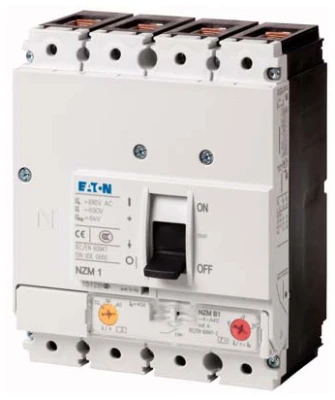

Eaton MCCB Y7-265803 4P 63A 25Ka Thermal Magnetic
£547.16 Incl. VAT
Circuit-breaker NZM1, 4 pole, Switching capacity 400/415 V 50 Hz( Icu ): 25 kA, Rated current = rated uninterrupted current Rated current = rated uninterrupted current( In = Iu ): 63 A, Installation type: Fixed, Box terminal, Standard/Approval: IEC, Protective function: System and cable protection · · · 32234575 · · Extensive list of accessories for multiple installation options · · Several installation modes are optional · · Worldwide approvals available including IEC, UL/CSA and CCC · · Innovative switching technology with a double-break contact system reduces clearing time. In the eve · · Available on-board diagnostics with data logging capability allows you to monitor critical circuits
Description
Technical Specifications Technical Specifications Moulded case circuit breaker (MCCB) Type of control element Rocker lever Position of connection for main current circuit Front Type of electrical connection of main circuit Frame clamp Degree of protection (IP rating) IP20 Number of auxiliary contacts as normally closed contact 0 Device construction Suitable for fixed installation Number of auxiliary contacts as change-over contact 0 Number of auxiliary contacts as normally open contact 0 Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 25 kA Rated permanent current Iu 63 A Number of poles 4 Power loss 14.2 W Overload release current setting 50 – 63 A Rated voltage 440 – 440 V Adjustment range short-term delayed short-circuit release 0 – 0 A Adjustment range undelayed short-circuit release 6 – 10 A Motor drive integrated No Switched-off indicator available No Suitable for DIN rail (top hat rail) mounting No With integrated under voltage release No Integrated earth fault protection No Motor drive optional No DIN rail (top hat rail) mounting optional Yes Complete device with protection unit Yes
