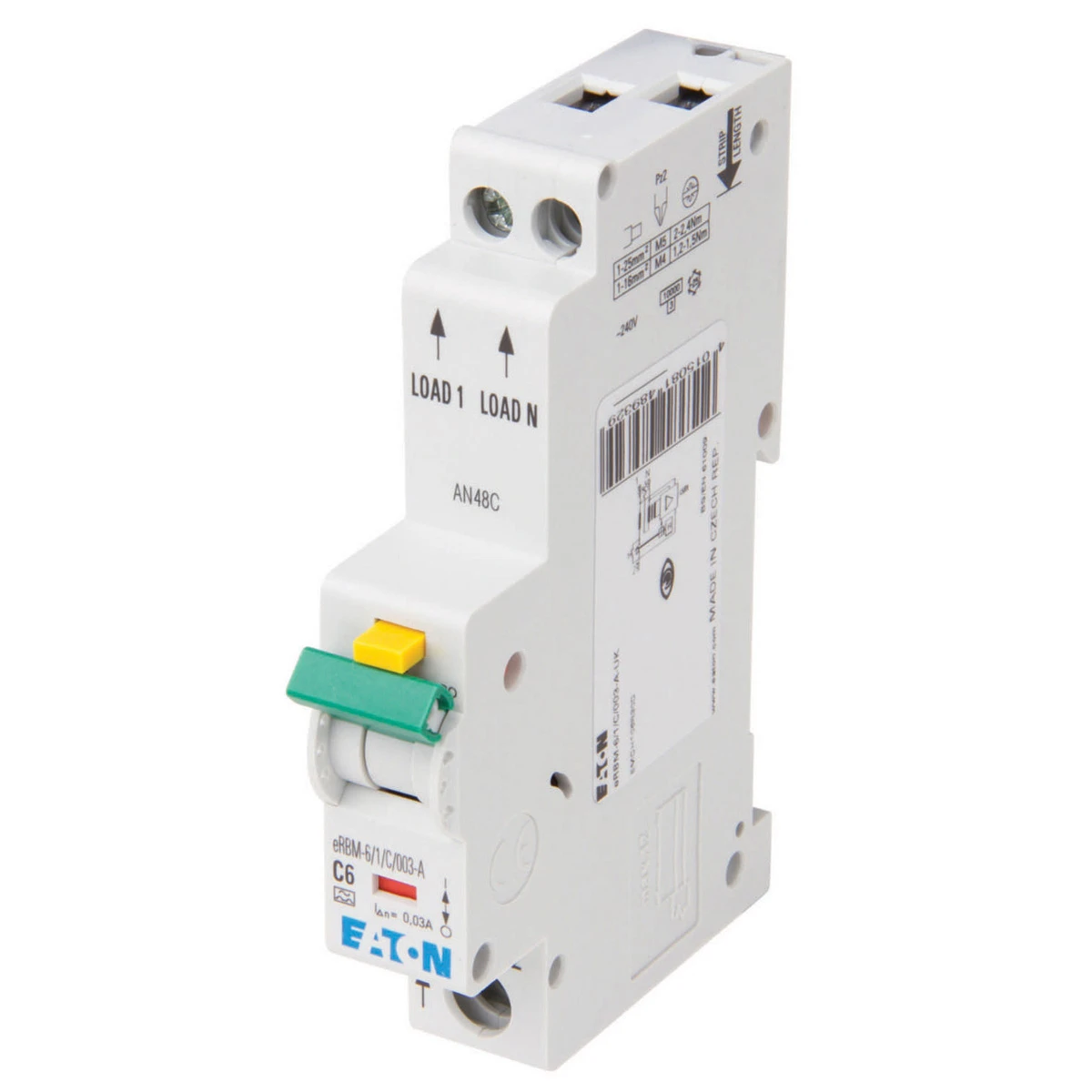

Eaton RCBO Single Pole&Neutral Type C 6A 30mA 10kA
Eaton RCBO Single Pole&Neutral Type C 6A 30mA 10kA
Eaton RCBO Single Pole&Neutral Type C 6A 30mA 10kA - Image 2
Eaton RCBO Single Pole&Neutral Type C 6A 30mA 10kA - Image 3
Eaton RCBO Single Pole&Neutral Type C 6A 30mA 10kA - Image 4

Eaton RCBO Single Pole&Neutral Type C 6A 30mA 10kA

£80.60 Incl. VAT

Electronic residual current operated circuit-breaker with overcurrent protection; 6A; 30mA; miniature circuit-breaker characteristic curve: C; 1p; residual current circuit-breaker trip characteristic: A · · · C release characteristic · · Manufactured to IEC/EN 61009 · · Suitable for use in Memshield 3 single and three phase distribution boards. · · DIN rail mountable in a single module width · · C Type · · Positive contact indication. · · Rated breaking capacity 10kA. · · Trip test button. · · Residual current circuit breaker with overcurrent protection (RCBOs)

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EMCH106R30C Categories: , , Brand: Product Code: 2500504361

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Disconnection characteristic Undelayed Frequency 50/60 Hz Degree of protection (IP rating) IP20 Voltage type AC Leakage current type A Rated short-circuit breaking capacity according to EN 61009 10 kA Power loss 1.8 W Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Over voltage category 3 Number of poles (total) 1 Pollution degree 2 Number of protected poles 1 Rated short-circuit breaking capacity IEC 60947-2 0 kA Current limiting class 3 Surge current capacity 0.25 kA Width in number of modular spacings 1 Rated current 6 A Rated voltage 240 V Rated insulation voltage Ui 500 V Rated fault current 0.03 A Recess depth 69.5 mm Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 40 °C With interlocking device No Anti-nuisance tripping version No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
