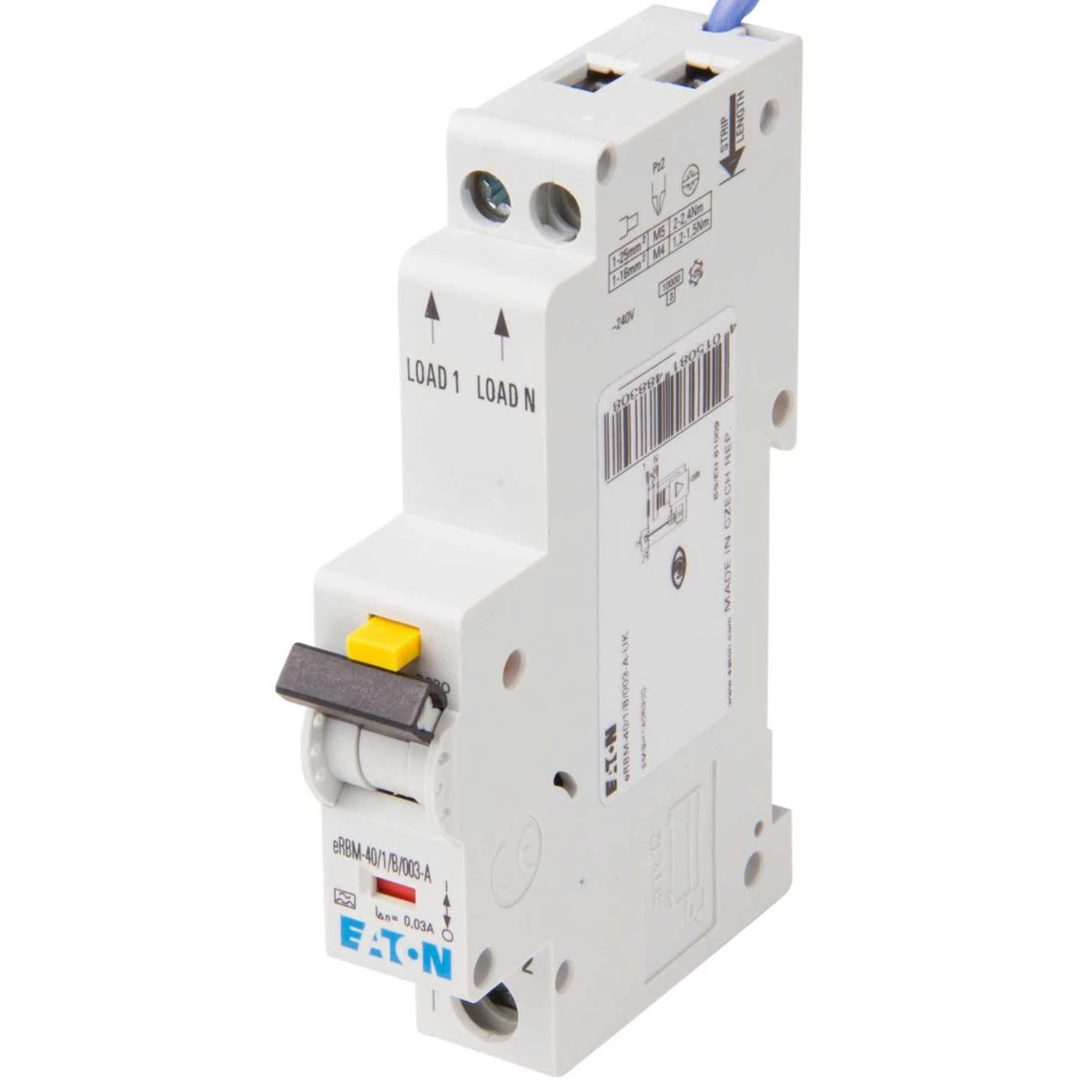

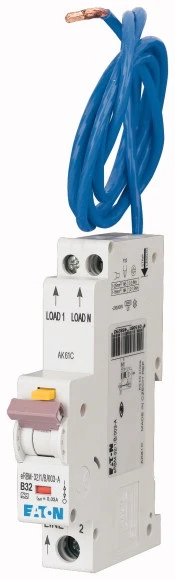

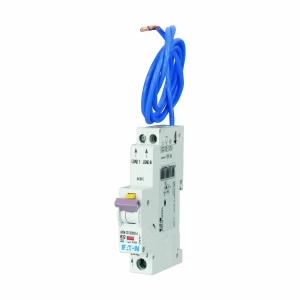

Eaton Memshield 3 RCBO SP Type B 6A 30mA 10kA

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Degree of protection (IP rating) IP20 Disconnection characteristic Undelayed Leakage current type A Tripping characteristic (type/curve) B Frequency 50/60 Hz Rated current 6 A Voltage type AC Rated voltage 240 V Recess depth 69.5 mm Rated insulation voltage Ui 500 V Power loss 2.3 W Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Over voltage category 3 Number of protected poles 1 Current limiting class 3 Rated short-circuit breaking capacity IEC 60947-2 0 kA Number of poles (total) 1 Rated impulse-withstand voltage (Uimp) 4 kV Pollution degree 2 Rated short-circuit breaking capacity according to EN 61009 10 kA Rated fault current 0.03 A Surge current capacity 0.25 kA Width in number of modular spacings 1 Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
