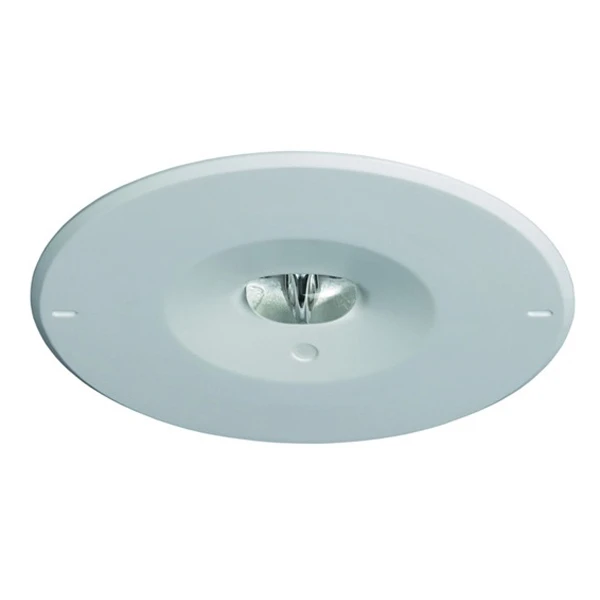

Eaton Micropoint 2 Self-Test Safety Luminaire 3Hour Maintained Recessed Mount
Eaton Micropoint 2 Self-Test Safety Luminaire 3Hour Maintained Recessed Mount
Eaton Micropoint 2 Self-Test Safety Luminaire 3Hour Maintained Recessed Mount - Image 2

Eaton Micropoint 2 Self-Test Safety Luminaire 3Hour Maintained Recessed Mount

£313.46 Incl. VAT

Eaton Micropoint 2 Self-Test Safety Luminaire is recessed mounted, with 3 hour maintained, high specification competitively priced emergency LED luminaire. It utilises the latest LED and optic technology to provide an unobtrusive, high quality, high performance luminaire for indoor use where aesthetics are of prime importance. Designed for ease of installation, reduced power consumption and minimal maintenance, reducing the TCO (total cost of ownership) without compromising on aesthetics. It utilises light efficiently from the LED to provide a uniform distribution in either an escape route or for anti-panic emergency lighting in open areas. This improves the performance and reduces the electrical power consumption. Present light levels can be adjusted in maintained mode to operate as a security light, adjustable using a touch sensitive button on the luminaire fascia. · · · Versatile multi-functional use · · Low power consumption reducing cost of ownership · · Plug and socket supply for ease of installation and maintenance · · Excellent spacing reducing the quantity of fittings required · · 60000 hour life LED for reduced maintenance

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: MP2E3HIS Categories: , Brand: Product Code: 2500529436

Description

Technical Specifications  Technical Specifications Emergency luminaire Protection class according to IEC 61140 II Lamp cap/base None Housing material Plastic Light diffuser type Focal lens Degree of protection (IP rating) IP44 Battery chemistry NiCd Impact resistance (IK rating) IK04 Housing colour White Control gear LED driver constant current Type of cabling Suitable for through wiring Mounting method Built-in Voltage type AC Light source type LED non-replaceable Connection type Screw connection Width 290 mm Conductor cross section 2.5 mm² Number of poles 4 Recess diameter 64 mm Number of lighting heads 1 Recess width – mm Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Max. number of luminaires per miniature circuit breaker C16 – Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) – % Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Luminous flux in standby mode 148 lm RAL-number housing – Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) – % Flickering value Pst LM – Viewing distance – m Stroboscope effect value SVM – Rated life time L70/B50 at 25 °C – h Max. number of luminaires per miniature circuit breaker B16 – Number of lamps 1 Power factor 0.5 Maximum system power 2.5 W Outer diameter 90 mm Nominal voltage 220 – 240 V Nominal current – mA Colour temperature 6200 – 6200 K Rated ambient temperature acc. IEC62722-2-1 5 – 35 °C Nominal operation time 3 – 3 h Constant luminous flux control No With remote switch connection Yes Replaceable control gear No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 Yes Pictogram included No Suitable for standby switching No Suitable for continuous circuit No With remote control No Light source included Yes
