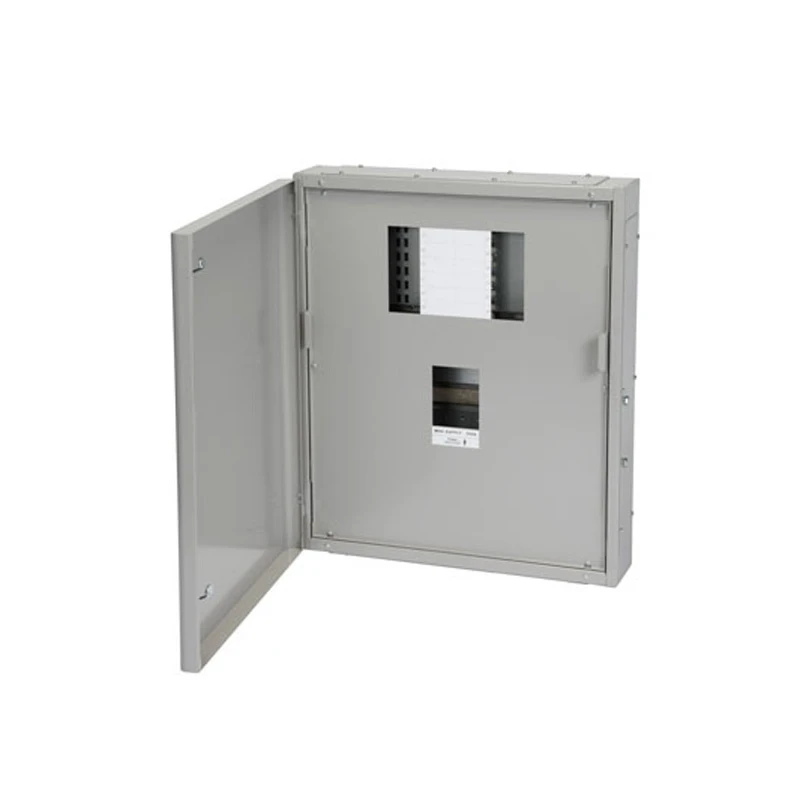

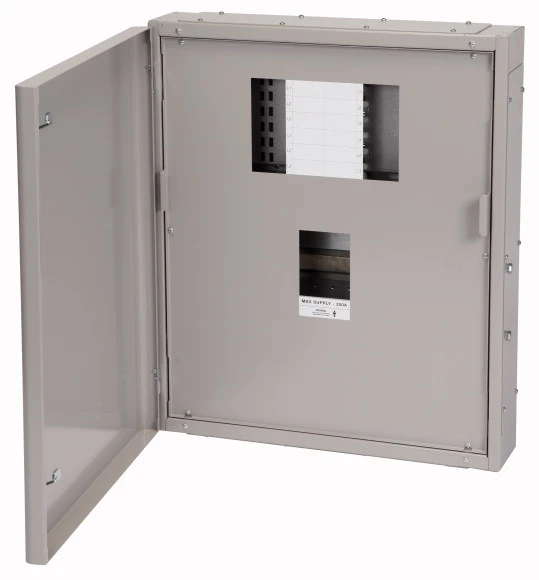

Eaton Panelboard 12 Way Outgoing Up To 160A 250A
Eaton Panelboard 12 Way Outgoing Up To 160A 250A
Eaton Panelboard 12 Way Outgoing Up To 160A 250A - Image 2
Eaton Panelboard 12 Way Outgoing Up To 160A 250A - Image 3

Eaton Panelboard 12 Way Outgoing Up To 160A 250A

£1,580.16 Incl. VAT

MEM 3 accessories 250A · · · Associated with incoming devices such as NZM2 MCCB or N2 switch disconnector · · Tin-plated busbar · · Outgoing devices; NZM1 16A125A SP & 20A160A TP · · Incoming rating up to 250A, outgoing ratings up to 160A · · NZM2 MCCB or N2 switch disconnector or direct lugs connection · · Can be configured for incomer device at top of panelboard · · Panelboards to IEC61439-2. Form 3b Type 2 · · Removable side gland plates as standard · · Tinplated busbars · · Minimum ordering requirement: panelboard + incoming device + incomer connection kit + outgoing devic

7 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EPBN11225 Categories: , , Brand: Part Number: 2500461498

Description

Technical Specifications  Technical Specifications Enclosure/switchgear cabinet Impact resistance (IK rating) IK06 Material Steel Colour Grey Surface finish Powder coated Width 700 mm Height 185 mm Number of locks 0 Number of connector holes 0 Number of doors 1 Max. permissible load of the enclosure according to IEC 62208 0 N Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 98 W Max. permissible load of the door(s) according to IEC 62208 0 N Max. permissible load of the mounting plate according to IEC 62208 0 N RAL number 7004 With door No Floor standing wall model No Pitched roof No With backside door No Transparent cover No With glazed door No Depth 1190 mm With ventilation door No Suitable for metrical mounting No Intermediate mounting No Suitable for outdoor set-up No With cover Yes EMC-version No Pre-stamping No Suitable for wall built-in No Mounting plate depth-adjustable No Couplable No Pole fastening No Freestanding No Corner model No With mounting plate No Suitable for wall mounting No · Technical Data Sheet – Click to Download
