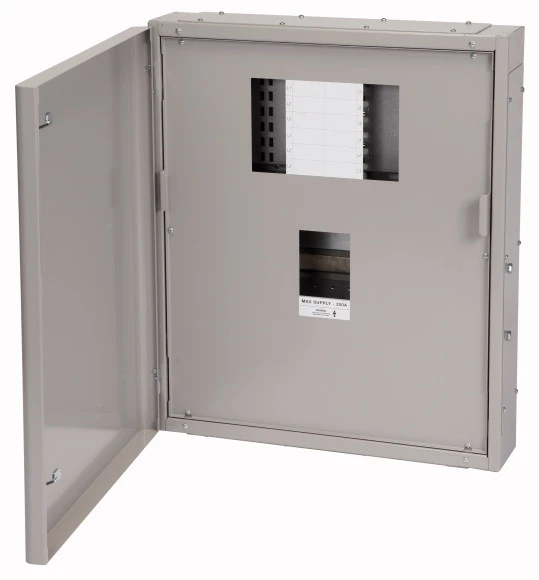

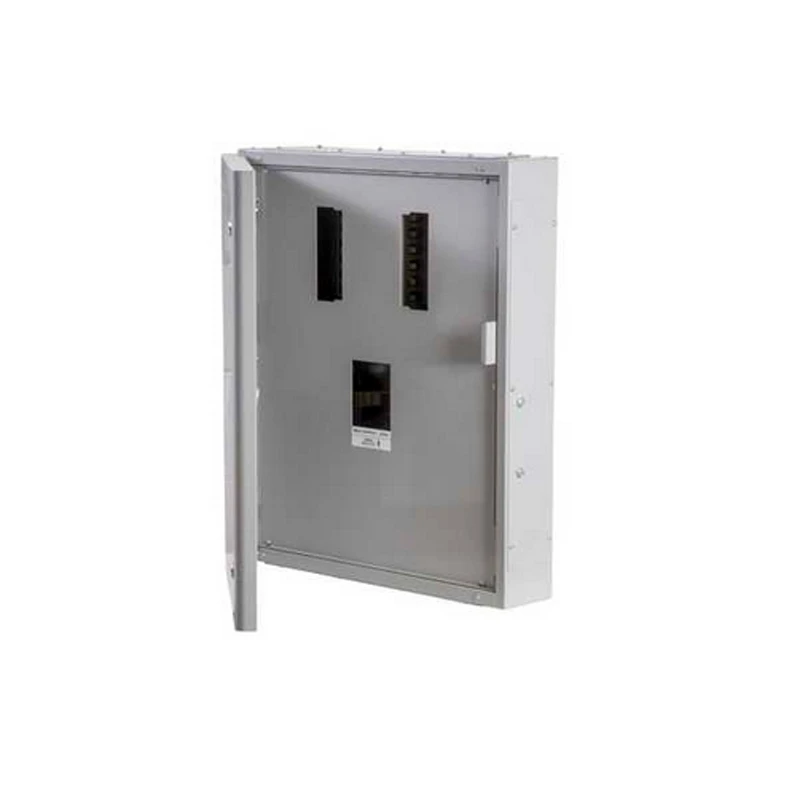

Eaton Panelboard 4 Way Outgoing Up To 160A 250A
Eaton Panelboard 4 Way Outgoing Up To 160A 250A
Eaton Panelboard 4 Way Outgoing Up To 160A 250A - Image 2
Eaton Panelboard 4 Way Outgoing Up To 160A 250A - Image 3

Eaton Panelboard 4 Way Outgoing Up To 160A 250A

£1,145.62 Incl. VAT

MEM 3 accessories 250A · · · Panel board to IEC61439-2, form 3b type-2 · · Can be configured for incomer device at top of panel board · · Outgoing devices; NZM1 16A125A SP & 20A160A TP · · Incoming rating up to 250A, outgoing ratings up to 160A · · NZM2 MCCB or N2 switch disconnector or direct lugs connection · · Can be configured for incomer device at top of panelboard · · Panelboards to IEC61439-2. Form 3b Type 2 · · Removable side gland plates as standard · · Tinplated busbars · · Minimum ordering requirement: panelboard + incoming device + incomer connection kit + outgoing devic

2 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EPBN1425 Categories: , , Brand: Part Number: 2500461502

Description

Technical Specifications  Technical Specifications Enclosure/switchgear cabinet Impact resistance (IK rating) IK06 Material Steel Colour Grey Surface finish Powder coated Width 700 mm Height 185 mm Depth 830 mm Number of doors 1 Number of locks 0 Number of connector holes 0 Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 75 W Max. permissible load of the enclosure according to IEC 62208 0 N Max. permissible load of the door(s) according to IEC 62208 0 N Max. permissible load of the mounting plate according to IEC 62208 0 N EMC-version No Pre-stamping No Intermediate mounting No Suitable for wall built-in No Suitable for wall mounting No With mounting plate No RAL number 7004 Mounting plate depth-adjustable No Suitable for metrical mounting No With ventilation door No Suitable for outdoor set-up No Pole fastening No Corner model No Couplable No With cover Yes Freestanding No With backside door No Pitched roof No Floor standing wall model No With door No With glazed door No Transparent cover No · Technical Data Sheet – Click to Download
