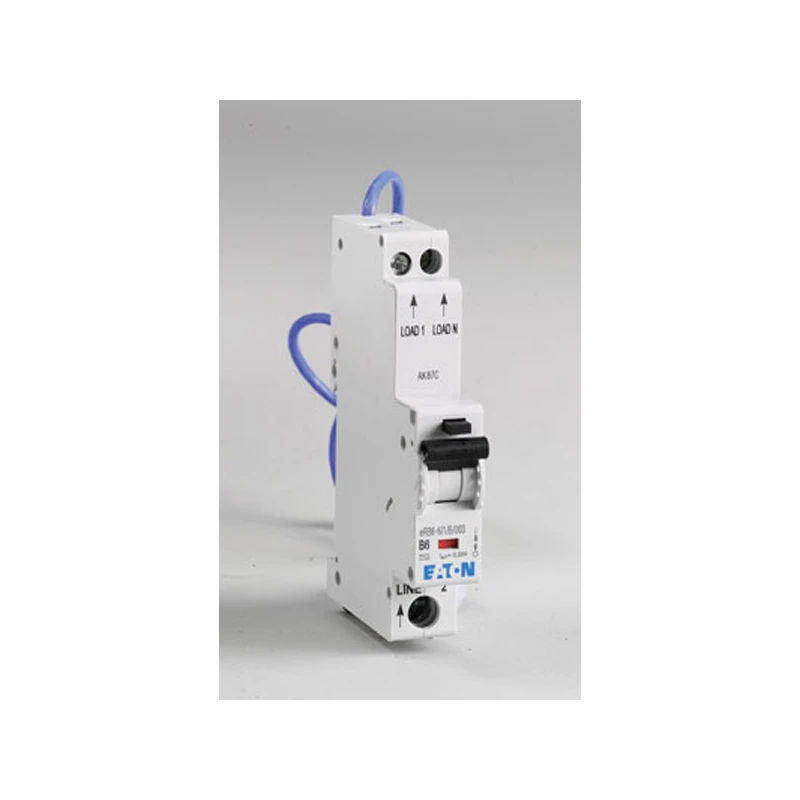

Eaton Electronic RCD/MCB combination 16A 30mA MCB trip characteristic: B 1p RCD trip characteristic: AC
Eaton Electronic RCD/MCB combination 16A 30mA MCB trip characteristic: B 1p RCD trip characteristic: AC

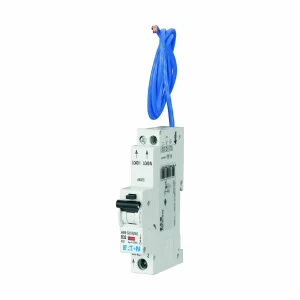

Eaton Electronic RCD/MCB combination 16A 30mA MCB trip characteristic: B 1p RCD trip characteristic: AC - Image 2

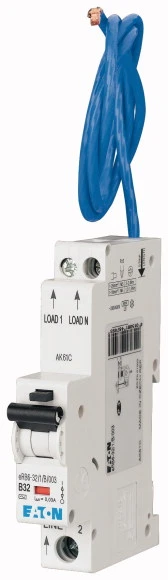

Eaton Electronic RCD/MCB combination 16A 30mA MCB trip characteristic: B 1p RCD trip characteristic: AC - Image 3
Eaton Electronic RCD/MCB combination 16A 30mA MCB trip characteristic: B 1p RCD trip characteristic: AC - Image 4

Eaton Electronic RCD/MCB combination 16A 30mA MCB trip characteristic: B 1p RCD trip characteristic: AC

£59.29 Incl. VAT

eRB6-16/1/B/003 · · · B release characteristic · · Manufactured to IEC/EN 61009 · · DIN rail mountable in a single module width · · Accommodate cables up to 16mm² · · A 30mA RCD will trip within 40ms when a fault current of 150mA is detected · · Color coded switching toggle for 10kA versions (designating the rated current)

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EAD16BH30C Categories: , , Brand: Product Code: 2500504391

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Disconnection characteristic Undelayed Frequency 50/60 Hz Degree of protection (IP rating) IP20 Leakage current type AC Voltage type AC Rated current 16 A Rated voltage 240 V Recess depth 69.5 mm Power loss 4.3 W Over voltage category 3 Rated short-circuit breaking capacity IEC 60947-2 0 kA Current limiting class 3 Number of protected poles 1 Pollution degree 2 Number of poles (total) 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity according to EN 61009 6 kA Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Width in number of modular spacings 1 Rated insulation voltage Ui 500 V Rated fault current 0.03 A Surge current capacity 0.25 kA Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 40 °C Anti-nuisance tripping version No Concurrently switching N-neutral No With interlocking device No · Technical Data Sheet – Click to Download
