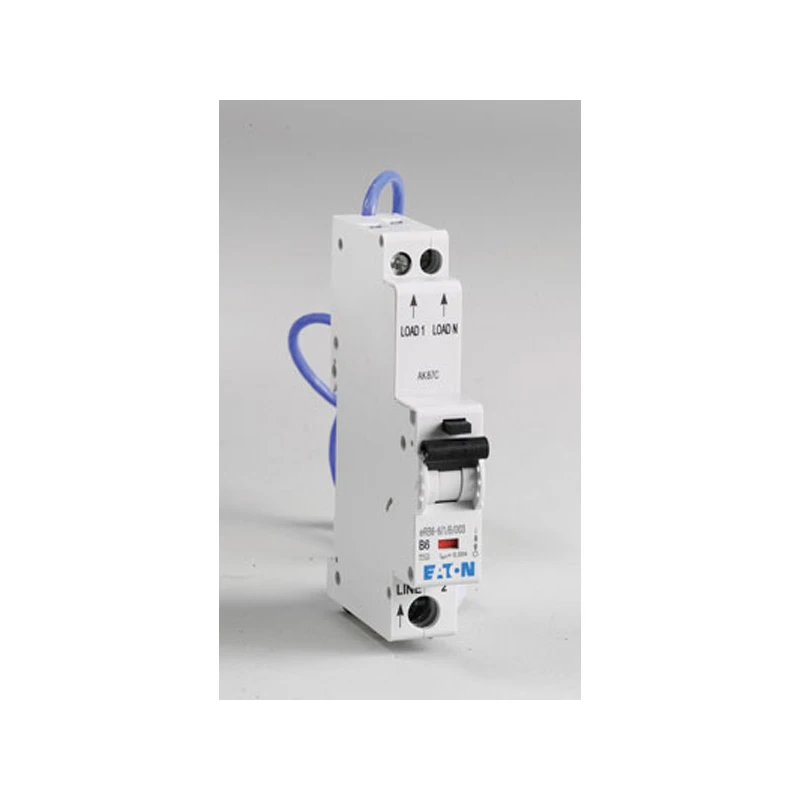

Eaton RCBO 1P+N 32A Type B 6kA 30mA - 17.7 x 103 x 76mm (EAD32BH30C)
Eaton RCBO 1P+N 32A Type B 6kA 30mA - 17.7 x 103 x 76mm (EAD32BH30C)

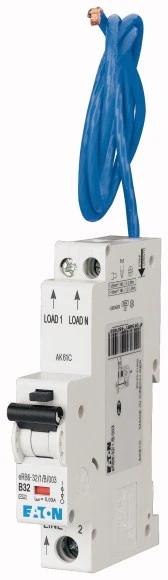

Eaton RCBO 1P+N 32A Type B 6kA 30mA - 17.7 x 103 x 76mm (EAD32BH30C) - Image 2

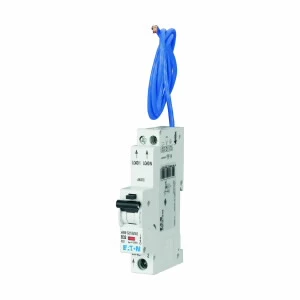

Eaton RCBO 1P+N 32A Type B 6kA 30mA - 17.7 x 103 x 76mm (EAD32BH30C) - Image 3
Eaton RCBO 1P+N 32A Type B 6kA 30mA - 17.7 x 103 x 76mm (EAD32BH30C) - Image 4

Eaton RCBO 1P+N 32A Type B 6kA 30mA – 17.7 x 103 x 76mm (EAD32BH30C)

£56.52 Incl. VAT

Steeple EAD32BH30C is a residual current circuit breaker (RCBOs) is manufactured to IEC/EN 61009 and meets the latest European and International standards. The DIN rail is mountable in a single module width. These devices will accommodate cables up to 16mm². It provides a high degree of protection against electric shock due to direct and indirect contact. A 30mA RCD will trip within 40ms when a fault current of 150mA is detected. · · · B release characteristic · · 30mA sensitivity

30 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EAD32BH30C Categories: , , Brand: Part Number: 2500504394

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Disconnection characteristic Undelayed Tripping characteristic (type/curve) B Degree of protection (IP rating) IP20 Frequency 50/60 Hz Voltage type AC Leakage current type AC Rated current 32 A Recess depth 69.5 mm Number of protected poles 1 Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated short-circuit breaking capacity according to EN 61009 6 kA Power loss 10.7 W Rated insulation voltage Ui 500 V Rated voltage 240 V Rated short-circuit breaking capacity IEC 60947-2 0 kA Number of poles (total) 1 Over voltage category 3 Pollution degree 2 Rated impulse-withstand voltage (Uimp) 4 kV Rated fault current 0.03 A Surge current capacity 0.25 kA Current limiting class 3 Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
