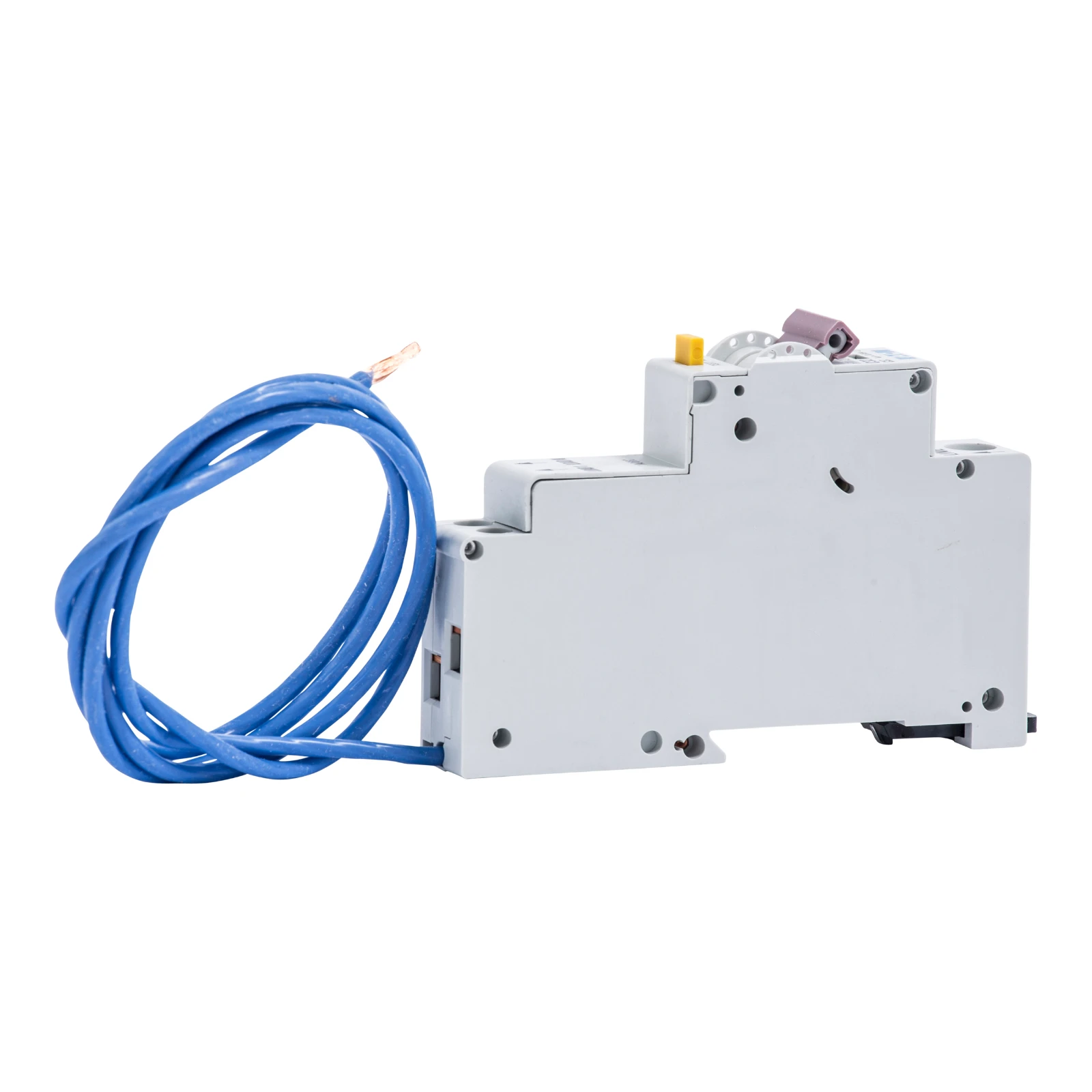

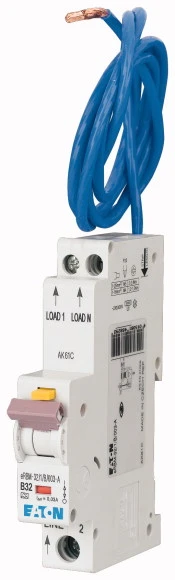

Eaton RCBO EMCH132R30C Memshield 3 1P+N 32A Type C 10kA 30MA (17.7 x 120 x 76mm)
Eaton RCBO EMCH132R30C Memshield 3 1P+N 32A Type C 10kA 30MA (17.7 x 120 x 76mm)
Eaton RCBO EMCH132R30C Memshield 3 1P+N 32A Type C 10kA 30MA (17.7 x 120 x 76mm) - Image 2
Eaton RCBO EMCH132R30C Memshield 3 1P+N 32A Type C 10kA 30MA (17.7 x 120 x 76mm) - Image 3
Eaton RCBO EMCH132R30C Memshield 3 1P+N 32A Type C 10kA 30MA (17.7 x 120 x 76mm) - Image 4

Eaton RCBO EMCH132R30C Memshield 3 1P+N 32A Type C 10kA 30MA (17.7 x 120 x 76mm)

£55.19 Incl. VAT

Eaton Memshield-3 EMCH132R30C is manufactured to IEC/EN 61009 and meets the latest European and International standards. The DIN rail is mountable in a single module width. These RCBOs provide a comprehensive protection solution to a wide range of application. The Eaton RCBOs suite with the complete range of modular devices and are for use within Eaton’s MEM Memera consumer units and other applications. These devices will accommodate cables up to 16mm². It provides a high degree of protection against electric shock due to direct and indirect contact. A 30mA RCD will trip within 40ms when a fault current of 150mA is detected. This type of RCD is required to satisfy the requirements for “additional protection” in accordance with BS7671. · · · C release characteristic · · Din rail mounted · · CE certified

172 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EMCH132R30C Categories: , , Brand: Part Number: 2500504368

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Degree of protection (IP rating) IP20 Disconnection characteristic Undelayed Frequency 50/60 Hz Leakage current type A Number of poles (total) 1 Voltage type AC Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Power loss 10.7 W Rated short-circuit breaking capacity according to EN 61009 10 kA Number of protected poles 1 Surge current capacity 0.25 kA Over voltage category 3 Pollution degree 2 Current limiting class 3 Width in number of modular spacings 1 Rated voltage 240 V Rated current 32 A Rated short-circuit breaking capacity IEC 60947-2 0 kA Rated insulation voltage Ui 500 V Rated fault current 0.03 A Recess depth 69.5 mm Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 40 °C Anti-nuisance tripping version No Flush-mounted installation No With interlocking device No Concurrently switching N-neutral No
