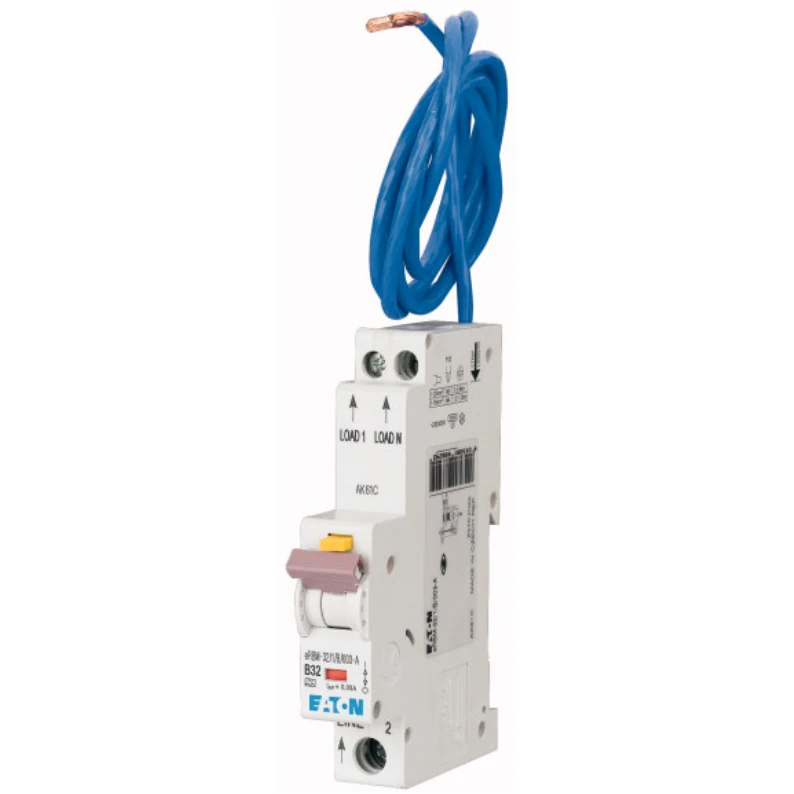

Eaton RCBO SP Type B 32A 10Ma 10Ka
Eaton RCBO SP Type B 32A 10Ma 10Ka
Eaton RCBO SP Type B 32A 10Ma 10Ka - Image 2

Eaton RCBO SP Type B 32A 10Ma 10Ka

£89.26 Incl. VAT

Electronic residual current operated circuit-breaker with overcurrent protection; 32A; 10mA; miniature circuit-breaker characteristic curve: B; 1p; residual current circuit-breaker trip characteristic: A · · · Electronic residual current device/miniature circuit breaker combination in only 1MU · · Design width of one module unit only · · Line voltage-independent tripping · · Contact position indicator red – green · · Can be sealed with leads in the on and off position · · Color coded switching toggle for 10kA versions (designating the rated current)

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EMBH132R10C Categories: , , Brand: Product Code: 2500504342

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Frequency 50 Hz Tripping characteristic (type/curve) B Disconnection characteristic Undelayed Degree of protection (IP rating) IP20 Voltage type AC Rated current 32 A Leakage current type A Rated insulation voltage Ui 500 V Rated voltage 240 V Surge current capacity 0.25 kA Rated fault current 0.01 A Recess depth 69.5 mm Over voltage category 3 Number of poles (total) 1 Rated short-circuit breaking capacity IEC 60947-2 0 kA Current limiting class 3 Number of protected poles 1 Pollution degree 2 Power loss 10.7 W Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 1 Rated short-circuit breaking capacity according to EN 61009 10 kA Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 40 °C Anti-nuisance tripping version No Concurrently switching N-neutral No With interlocking device No
