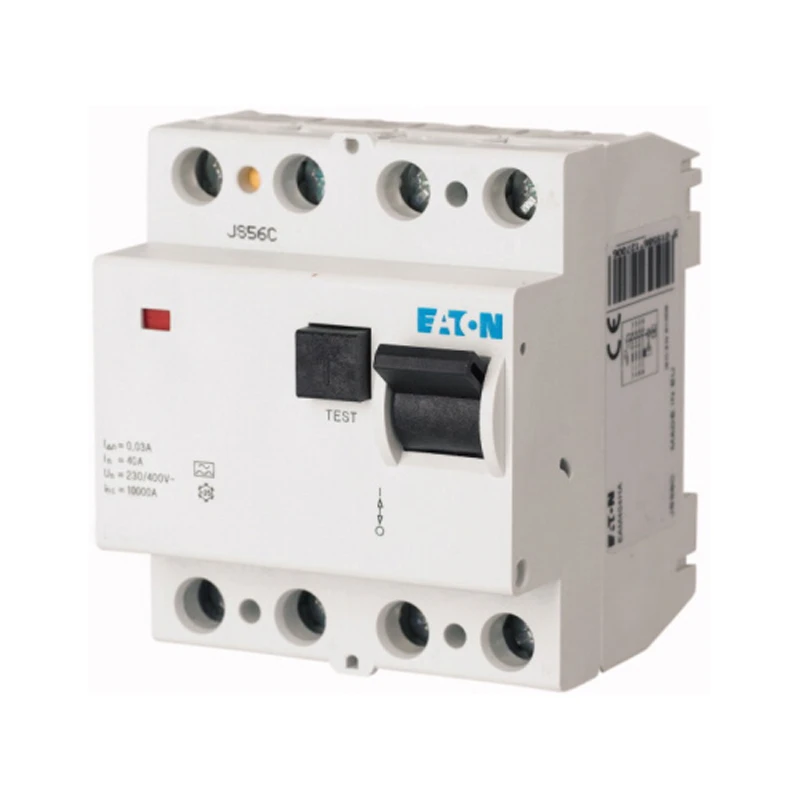

Eaton RCCB SPSN 63A 30Ma
£153.49 Incl. VAT
Full range of compact residual current circuit-breaker models for a wide variety of applications, for fault and additional protection, large amount of available rated operational currents, comprehensive range of accessories, true contact position indicator, automatic reclosing possible, suitable for use outdoors (building and outdoor distribution boards) at temperatures as low as -25 °C · · · Manufactured to IEC EN/61008 and meets the latest European and International standards · · This devices will accommodate cables up to 35mm² · · Can be equipped with a range of modular accessories · · Tripping is line voltage-independent, RCD is suitable for “fault current/residual current protection · · Universal tripping signal switch suitable · · Type -A: Protects against special forms of non-smoothed residual pulsating DC
Description
Technical Specifications Technical Specifications Residual current circuit breaker (RCCB) Frequency 50 Hz Mounting method DIN rail Degree of protection (IP rating) IP20 Leakage current type AC Recess depth 70.5 mm Voltage type AC Rated voltage 230 V Rated current 63 A Number of poles 2 Rated insulation voltage Ui 440 V Rated fault current 0.03 A Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 2 Pollution degree 2 Short-circuit breaking capacity (Icw) 10 kA Surge current capacity 0.25 kA Connectable conductor cross section solid-core 1.5 – 35 mm² RAL-number (similar) 7035 Connectable conductor cross section multi-wired 1.5 – 16 mm² Ambient temperature during operating -25 – 60 °C Selective protection No Additional equipment possible Yes Short-time delayed tripping No Explosion-proof No With interlocking device Yes
