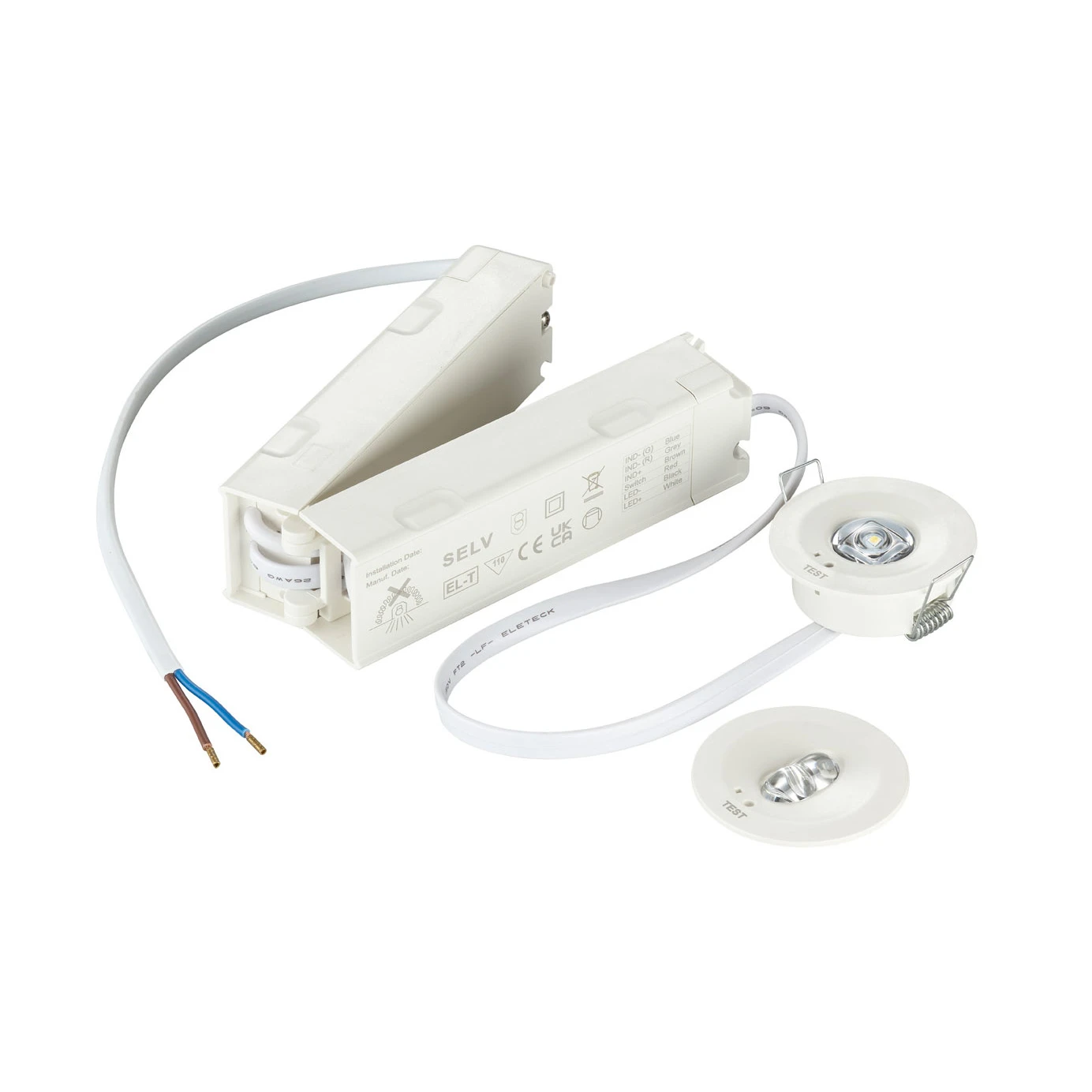

ECO-E3/MT-RC-SP Ecolink Emergency Recessed Spot 3 Hour Manual

Description

Technical Specifications  Technical Specifications Emergency luminaire Width 36 mm Outer diameter 50 mm Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) 50 % Recess height/depth 21 mm Rated life time L70/B50 at 25 °C 36000 h Power factor 0.34 Viewing distance 0 m RAL-number housing 9003 Number of lighting heads 1 Number of lamps 1 Max. number of luminaires per miniature circuit breaker C16 407 Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) 83.54 % Maximum system power 2 W Height/depth 27 mm Recess diameter 44 mm Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 91.42 % Flickering value Pst LM 0.021 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) 10 % Max. number of luminaires per miniature circuit breaker B16 244 Luminous flux in standby mode 0 lm Stroboscope effect value SVM 0 Nominal operation time 3 – 4 h Nominal current 5 – 5.45 mA Nominal voltage 220 – 240 V Colour temperature 6500 – 6500 K Length 250 mm Conductor cross section 2 mm² Number of poles 2 Rated ambient temperature acc. IEC62722-2-1 25 – 25 °C With remote control No Constant luminous flux control No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No With remote switch connection No Replaceable control gear No Light source included Yes Pictogram included No Suitable for continuous circuit No Suitable for standby switching Yes
