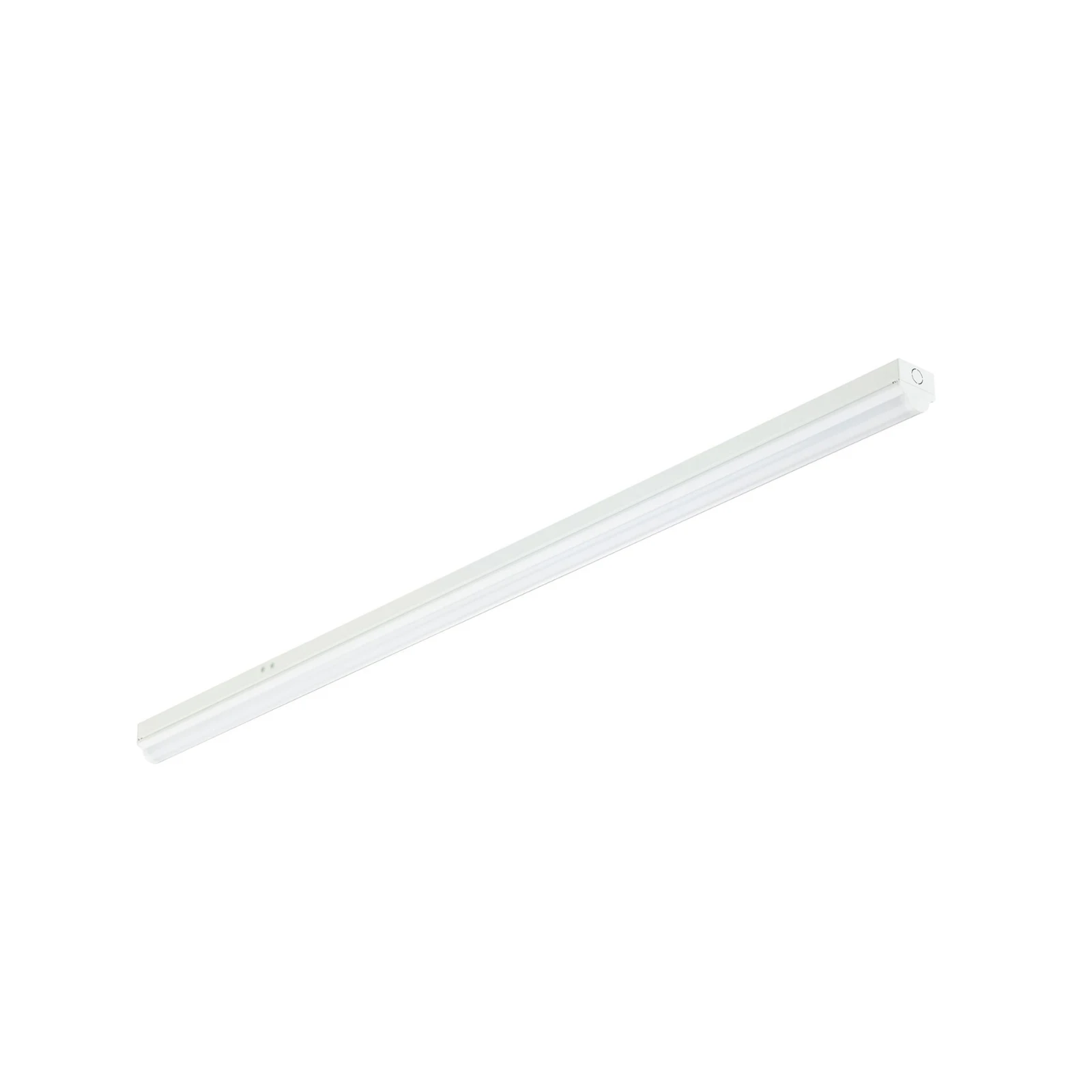

ECOBT5FT-S-4K Ecolink Batten 5ft Single 3500lm

Description

Technical Specifications  Technical Specifications Batten luminaire Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) 7.5 % Width 58 mm Luminaire efficacy 121 lm/W Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 70 % Length 1445 mm Rated life time L70/B50 at 25 °C 50000 h Maximum system power 29 W Number of poles 3 Power factor 0.9 Height/depth 59 mm Conductor cross section 1 mm² Nominal voltage 220 – 240 V Colour temperature 4000 – 4000 K With lamp protection cage No Luminaire may be covered with thermally insulating material No With switch No Dimming with push-button No Compatible with Casambi No Light source included Yes Nominal current 135 – 135 mA Dimming LineSwitch No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for emergency lighting Yes Electrical connection with connector system No Compatible with Google Assistant No Dimming touch and dim No Dimming DSI No With movement sensor No Dimming trailing edge No Dimming DMX No Dimming 0-10 V No Dimming leading edge No Dimming manufacturer’s proprietary system No Dimming mains voltage modulation No Control gear included Yes Dimming potentiometer (integrated) No Dimming 1-10 V No Dimming Zigbee No Dimming sine wave reduction No Dimming DALI No Constant luminous flux control No Dimming programmable No Dimming RF No IFTTT support available No Replaceable control gear No Bluetooth operated No Compatible with Apple HomeKit No Compatible with Amazon Alexa No · Technical Data Sheet – Click to Download
