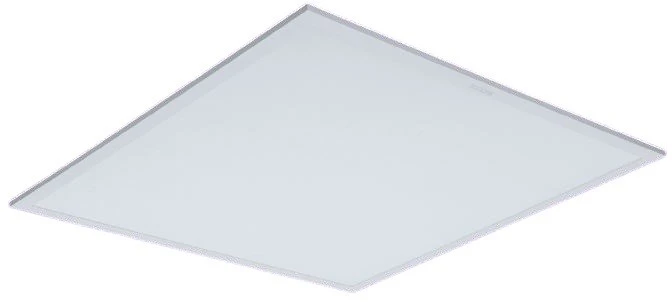

Ecolink Gen2 Panel 600X600 3400lm 4000K TPB

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Width 595 mm Lamp cap/base E10 Length 595 mm Conductor cross section 0.75 mm² Number of poles 2 Height/depth 34 mm Recess width 595 mm Stroboscope effect value SVM 0.4 Rated life time L70/B50 at 25 °C 50000 h Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) 2 % Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 70 % Max. number of luminaires per miniature circuit breaker C16 28 Unified Glare Rating (UGR) 22 Power factor 0.9 Recess height/depth 34 mm Max. number of luminaires per miniature circuit breaker B16 20 Rated ambient temperature acc. IEC62722-2-1 25 – 25 °C Colour temperature 4000 – 4000 K Nominal current 140 – 140 mA Nominal voltage 220 – 240 V Maximum system power 28 W Flickering value Pst LM 1 Recess length 595 mm With light sensor No Suitable for wall mounting No Suitable for suspended mounting Yes Replaceable control gear No Dimming DSI No Dimming Zigbee No Compatible with Casambi No Dimming leading edge No Dimming with push-button No Compatible with Apple HomeKit No Dimming 1-10 V No Dimming manufacturer’s proprietary system No Dimming DALI No Dimming DMX No Dimming 0-10 V No Meet min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C) No Bluetooth operated No Compatible with Amazon Alexa No IFTTT support available No Dimming potentiometer (integrated) No Luminaire may be covered with thermally insulating material No Dimming programmable No Constant luminous flux control No Light source included Yes Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for surface mounting Yes With air slots No Dimming RF No Dimming trailing edge No Dimming DALI-2 No Suitable for light line configuration No Control gear included Yes Suitable for emergency lighting No With movement sensor No Suitable for recessed mounting Yes Compatible with Google Assistant No Dimming touch and dim No Dimming mains voltage modulation No Suitable for ceiling mounting Yes Fit for workplace acc. EN 12464-1 No
