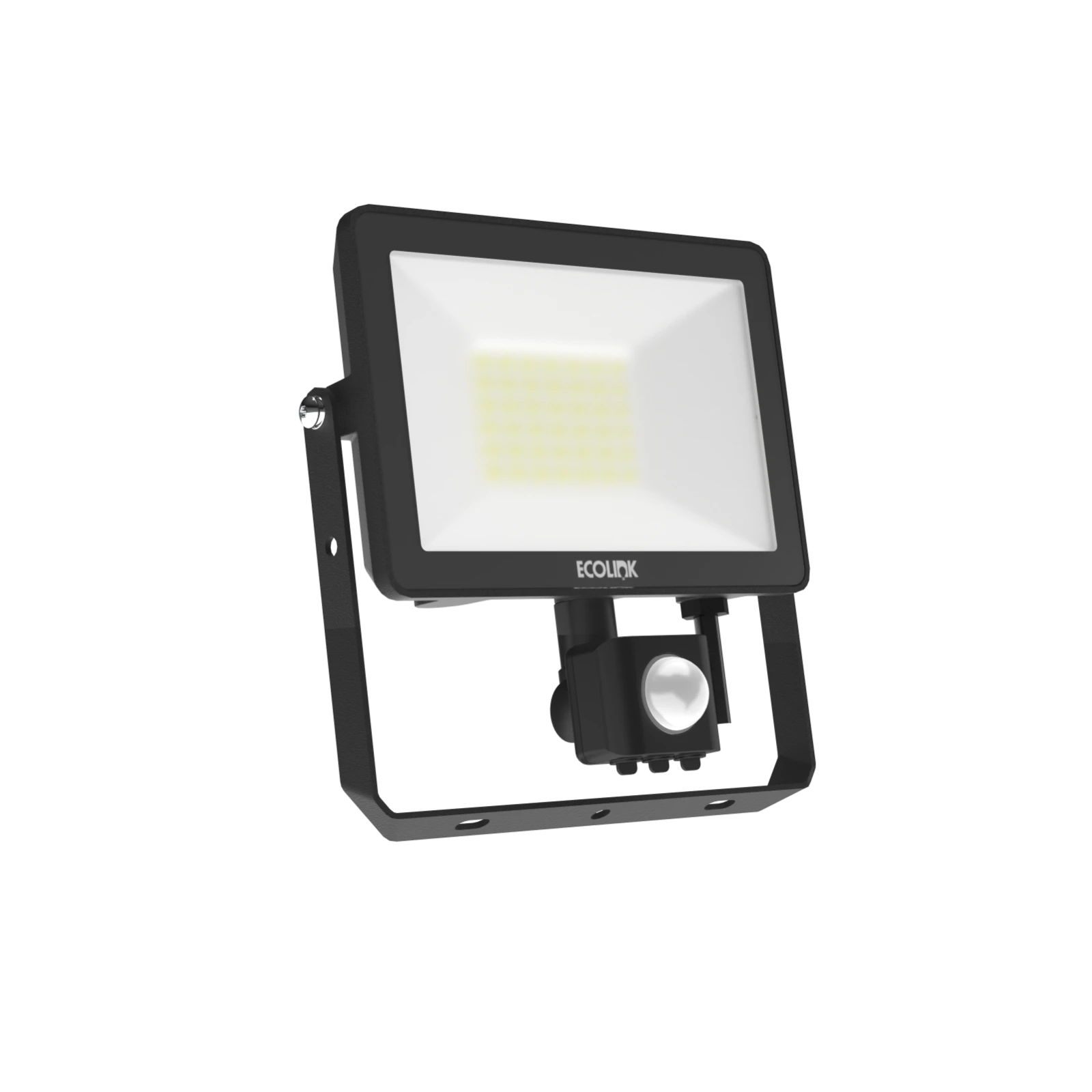

Ecolink IP65 Floodlight 30W 4000K With Sensor

Description

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Housing colour Black Impact resistance (IK rating) IK06 Lamp cap/base E10 Degree of protection (IP), front side IP65 Length 185 mm Conductor cross section 1 mm² Housing material Aluminium Width 183 mm Power factor 0.9 Max. number of luminaires per miniature circuit breaker C16 85 Flickering value Pst LM 1 Max. number of luminaires per miniature circuit breaker B16 73 Maximum system power 30 W Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) 65 % Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) 7.5 % Rated ambient temperature acc. IEC62722-2-1 25 – 25 °C Nominal voltage 220 – 240 V Connectable conductor cross section 1 – 1 mm² Colour temperature 4000 – 4000 K Nominal current 132 – 125 mA Rated life time L70/B50 at 25 °C 35000 h Number of poles 3 Height/depth 56 mm Rated luminous flux according to IEC 62722-2- 1 2550 – 2550 lm With movement sensor Yes With light sensor No Control gear included Yes Suitable for ceiling mounting No Suitable for light-track mounting No Suitable for suspended mounting No Suitable for recessed mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Brushed surface No Suitable for surface mounting Yes Constant luminous flux control No Suitable for wall mounting Yes Light source included Yes Suitable for traverse mounting No Luminaire may be covered with thermally insulating material No Fit for workplace acc. EN 12464-1 No Suitable for clamp-mounting No Dimming with push-button No IFTTT support available No Dimming sine wave reduction No Dimming leading edge No Dimming programmable No Dimming potentiometer (integrated) No Dimming LineSwitch No Compatible with Amazon Alexa No Dimming 1-10 V No Dimming touch and dim No Compatible with Google Assistant No Dimming manufacturer’s proprietary system No Dimming mains voltage modulation No Suitable for low voltage cable system No Dimming DSI No Dimming Zigbee No Dimming RF No Dimming DALI-2 No Bluetooth operated No Dimming trailing edge No Dimming DALI No Compatible with Apple HomeKit No Replaceable control gear No Suitable for pedestal/floor mounting Yes Dimming 0-10 V No Dimming DMX No · Technical Data Sheet – Click to Download
