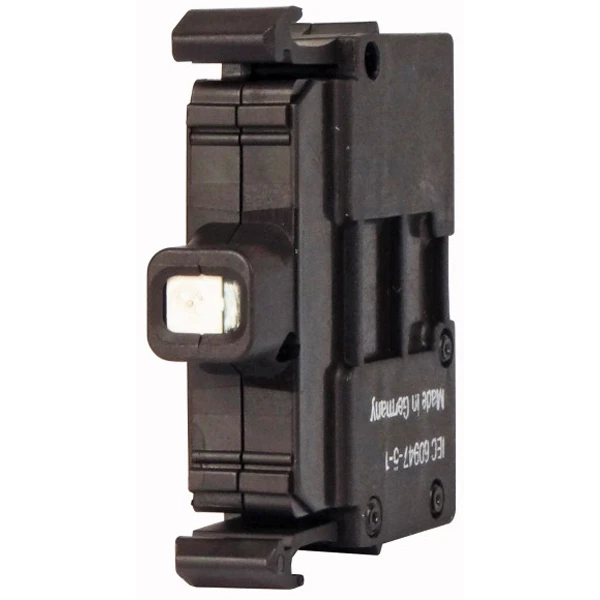

Eaton Element LED Front Fixing Screw Term 18-30V Ac/Dc 8-15Ma Red
Eaton Element LED Front Fixing Screw Term 18-30V Ac/Dc 8-15Ma Red

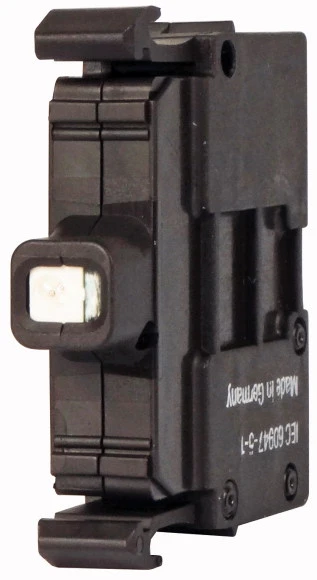

Eaton Element LED Front Fixing Screw Term 18-30V Ac/Dc 8-15Ma Red - Image 2

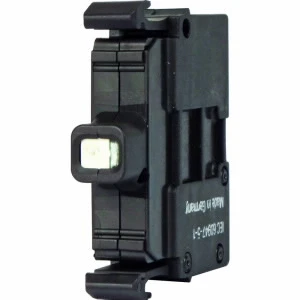

Eaton Element LED Front Fixing Screw Term 18-30V Ac/Dc 8-15Ma Red - Image 3
Eaton Element LED Front Fixing Screw Term 18-30V Ac/Dc 8-15Ma Red - Image 4

Eaton Element LED Front Fixing Screw Term 18-30V Ac/Dc 8-15Ma Red

£11.89 Incl. VAT

LED element, Fixing: Front fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 12 – 30 V AC/DC, 50/60 Hz V, Rated operational current: Ie= 8 – 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1 · · · Colour: Red · · Cutout Size: 22.5mm · · IP Rating: IP20 · · Voltage: 12 – 30V AC / DC

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: M22-LED-R Categories: , , , , , Brand: Product Code: 2500088523

Description

Technical Specifications  Technical Specifications Lamp holder block for control circuit devices Lamp cap/base None Type of fastening Front fastening Colour lamp Red Light source type LED Voltage type for actuating AC/DC Connection type auxiliary circuit Screw connection Rated voltage Ue at AC 50 Hz 12 – 30 V Rated voltage Ue at AC 60 Hz 12 – 30 V Transformer integrated No Rated voltage Ue at DC 30 – 30 V With integrated voltage decreasing resistor No With integrated diode Yes Light source included Yes · Technical Data Sheet – Click to Download
