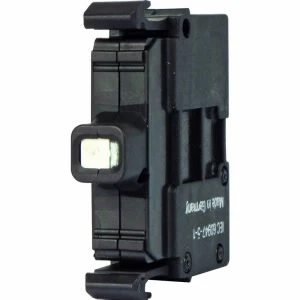

Eaton Element LED Front Fixing Screw Term 18-30V Ac/Dc 8-15Ma White
Eaton Element LED Front Fixing Screw Term 18-30V Ac/Dc 8-15Ma White

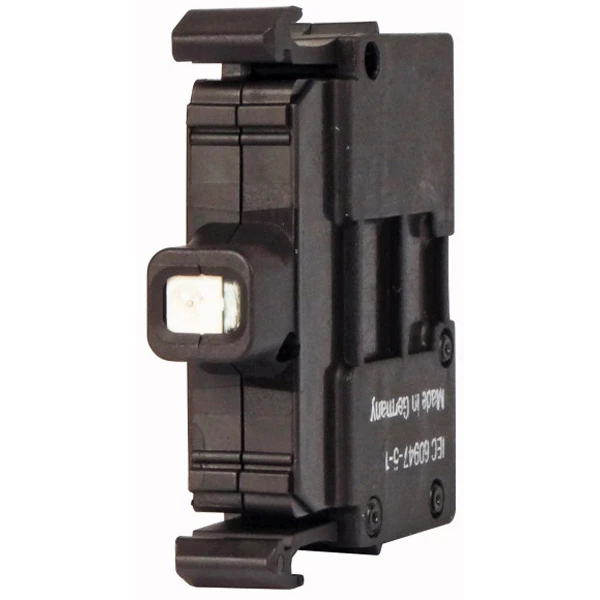

Eaton Element LED Front Fixing Screw Term 18-30V Ac/Dc 8-15Ma White - Image 2

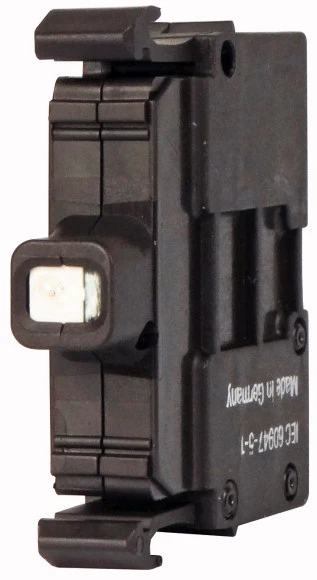

Eaton Element LED Front Fixing Screw Term 18-30V Ac/Dc 8-15Ma White - Image 3
Eaton Element LED Front Fixing Screw Term 18-30V Ac/Dc 8-15Ma White - Image 4

Eaton Element LED Front Fixing Screw Term 18-30V Ac/Dc 8-15Ma White

£11.89 Incl. VAT

LED element, Fixing: Front fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 12 – 30 V AC/DC, 50/60 Hz V, Rated operational current: Ie= 8 – 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Colour: White, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1 · · · Colour: White · · Connection Type: Screw Terminal · · Current Rating: 8 – 15mA · · Mounting Type: Front · · Shape: Round · · Terminal Capacity: 0.75 – 2.5 sq mm (Solid), 0.5 – 2.5 sq mm (Stranded) · · Voltage Rating: 18 – 30V AC/DC · · Width: 30mm, Depth: 71mm · · Cutout Size: 22.5mm · · IP Rating: IP20

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: M22-LED-W Categories: , , , , , Brand: Product Code: 2500088522

Description

Technical Specifications  Technical Specifications Lamp holder block for control circuit devices Lamp cap/base None Type of fastening Front fastening Colour lamp White Light source type LED Connection type auxiliary circuit Screw connection Rated voltage Ue at AC 50 Hz 12 – 30 V Voltage type for actuating AC/DC Rated voltage Ue at AC 60 Hz 12 – 30 V Rated voltage Ue at DC 30 – 30 V With integrated voltage decreasing resistor No Transformer integrated No With integrated diode Yes Light source included Yes · Technical Data Sheet – Click to Download
